316 Stainless Steel Deck Framing Angles

316 Stainless Steel Deck Framing Angles

Decking Applications | 316 Stainless Steel

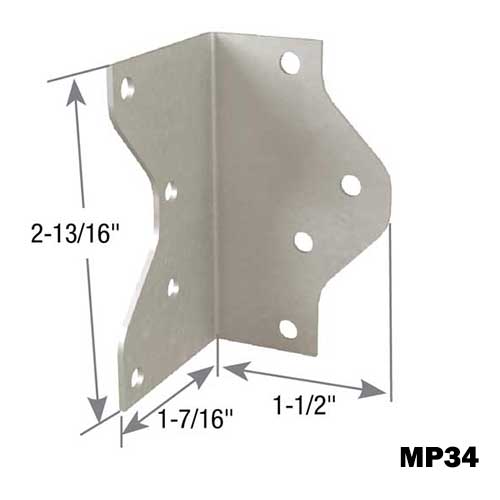

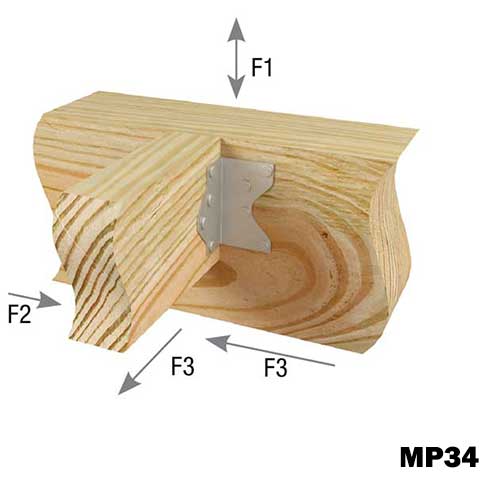

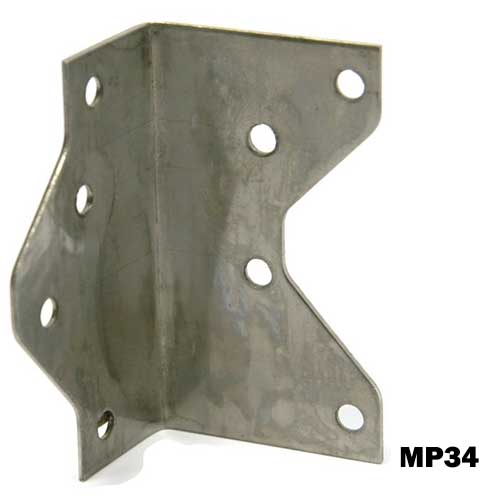

  • The MP34 is the standard multi-purpose framing angle. It's the smallest of our selection making it well suited for attaching smaller joists.

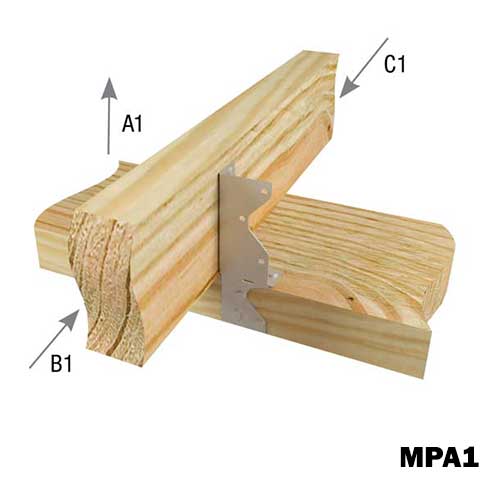

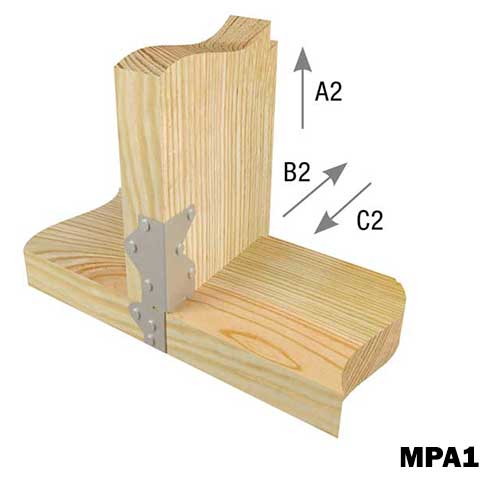

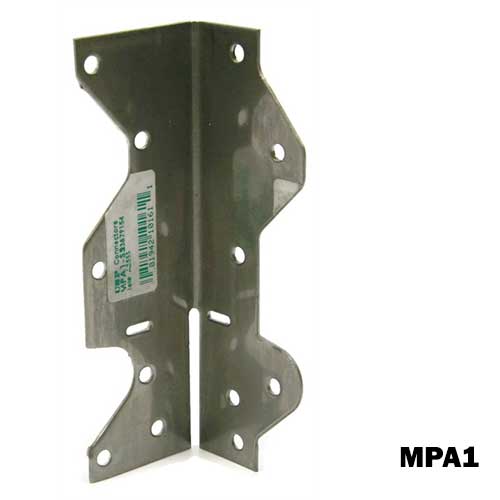

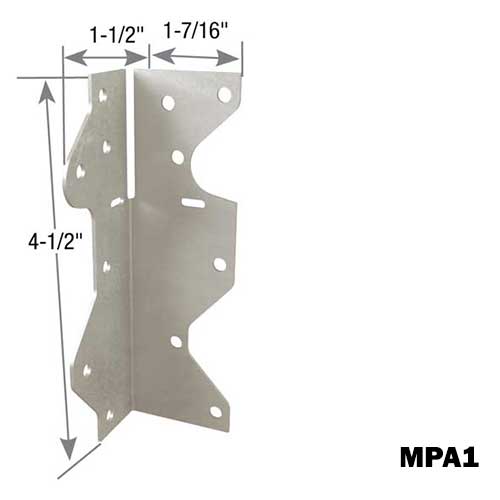

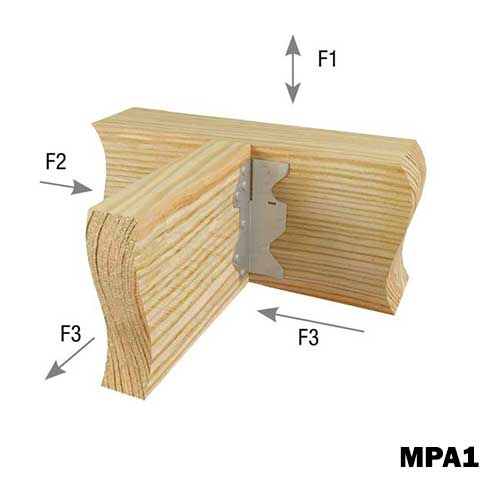

  • The MPA1 is a multi-purpose framing angle featuring bendable tabs on one end and a reversable design. These tabs enable two-way and three-way connections, allowing for a wide range of applications. Note: Bend Tabs Only Once.

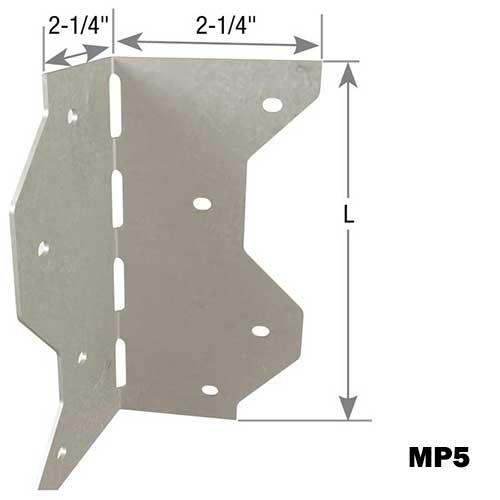

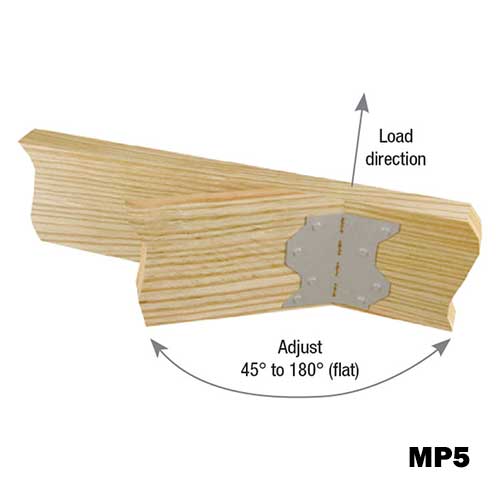

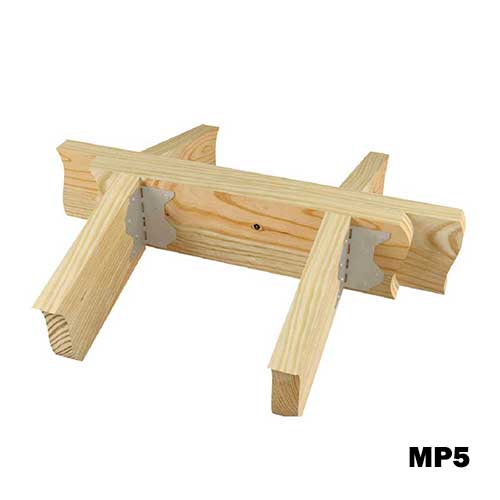

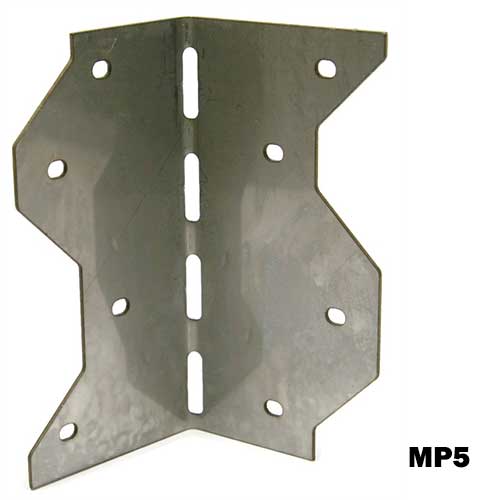

  • The MP5 is a skew-able framing angle featuring a perforated corner. It can be field adjusted from 0-degree to 135-degree to fit a range of angles (comes fabricated at a 100-degree angle). Note: Bend Angle Only Once.

Framing angles, or angled framing anchors, are typically corner pieces in design and are used to connect joists, studs, or rafters, to perpendicular beams. In light wood-frame construction, they often support the joists that connect to a wood beam or girder in the event that a joist hanger can't be used.

Framing Angles come in multiple varieties (shown in order of appearance):

While each may be different, they all share the same basic function of connecting joists to studs, beams, and rafters.

All framing angles in this selection are made of 316 Stainless Steel for superior corrosion resistance. 316 Stainless Steel is well suited for applications in severe, harsh, or marine environments. Should only be installed with 316 Stainless Steel Nails to maintain product warranty. The number of holes in a given framing anchor dictate the number of nails expected to be used to make a secure connection.

Proudly Made in The USA.

Made in the USA
Manufacturer Part Number Simpson Part Number Steel Gauge Material
MP34-SS A34SS 18 316 Stainless Steel
MPA1-SS A35SS 18 316 Stainless Steel
MP5-SS LS50SS 18 316 Stainless Steel
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Framing Anchors 316 SS - MP34-SS
SKU #6100-012-0002
Framing Anchors 316 SS - MP34-SS
SKU #6100-012-0002
1
$5.21 (5.21/ea)
5
$20.70 (4.14/ea)
10
$39.90 (3.99/ea)
100
$394.00 (3.94/ea)
Subtotal: $0.00 /
Framing Anchors 316 SS - MPA1-SS
SKU #6100-012-0010
Framing Anchors 316 SS - MPA1-SS
SKU #6100-012-0010
1
$6.22 (6.22/ea)
5
$22.45 (4.49/ea)
10
$43.40 (4.34/ea)
100
$427.00 (4.27/ea)
Subtotal: $0.00 /
Framing Anchors 316 SS - MP5-SS
SKU #6100-012-0018
Framing Anchors 316 SS - MP5-SS
SKU #6100-012-0018
1
$27.96 (27.96/ea)
5
$118.95 (23.79/ea)
10
$229.80 (22.98/ea)
100
$2,264.00 (22.64/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
NA
25
$9.50 (0.38/ea)
100
$31.00 (0.31/ea)
1000
$250.00 (0.25/ea)
Subtotal: $0.00 /

Product Specifications
Corrosion Resistant
Yes
Grade
316
Marine Grade
Yes
Material
Stainless Steel
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
