What are Countersunk Rivets?

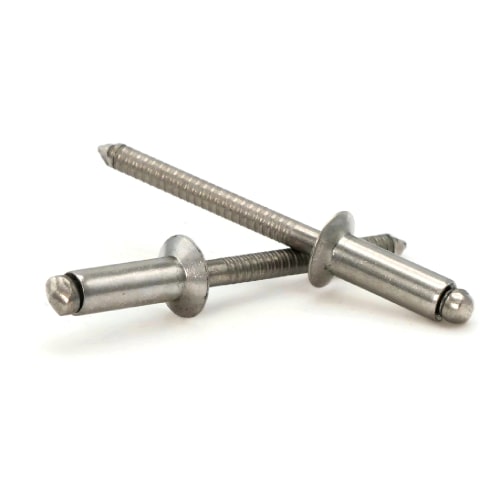

Countersunk rivets are blind rivets with a tapered head that seats in a countersunk hole. After setting, the head is flush with the surface for a clean finish and to avoid interference with sliding parts or covers. Most countersunk blind rivets use a 120° head angle.
When should I use countersunk rivets?
- Panels that need a flat surface for appearance or airflow
- Tracks, rollers, or sliding components where a protruding head could snag
- Enclosures and covers that must sit flush
How do countersunk blind rivets work?
Insert the rivet into a correctly sized countersunk hole. The tool pulls the mandrel to flare the body on the blind side and clamp the stack. The mandrel snaps at a designed point, leaving a durable, one-side installation and a flush head.
How to choose the right size
- Grip range: Match the rated range to the total material stack thickness.
- Diameter and hole size: Use the recommended drill size for the series. Keep the hole just over body diameter and deburr both sides.
- Materials: Aluminum for low weight, steel for economy strength, stainless for corrosion resistance. Consider galvanic compatibility with the joined metals.
What drill size for 1/8 in and 3/16 in countersunk rivets?
Use the chart below for common pairings, then confirm the exact drill in the datasheet for your series.
| Nominal rivet diameter | Recommended hole size (in) | Common drill size |
|---|---|---|
| 3/32 in | 0.097 – 0.100 | #41 |
| 1/8 in | 0.129 – 0.133 | #30 |
| 5/32 in | 0.160 – 0.164 | #20 |
| 3/16 in | 0.192 – 0.196 | #11 |
| 1/4 in | 0.257 – 0.261 | Letter F |
Notes: Drill and deburr square to the surface for best seating. Some specialty countersunk blind rivets are designed to sit nearly flush on both sides.
Common sizes, materials and finishes
- Popular diameters: 1/8, 5/32, 3/16, 1/4 in
- Head angle: typically 120° for blind rivets
- Bodies and mandrels: aluminum, steel, stainless
Installation and best practices
- Measure the total stack and select a rivet whose grip range covers it.
- Use the correct countersink and drill size. Deburr both sides to seat the head fully.
- Support the joint during pulling to limit pillowing, pull until the mandrel snaps.
- For sealing needs, use closed end styles in the relevant category or add a compatible sealant.
Common issues and quick fixes
- Head not fully flush, countersink angle or depth does not match, re-countersink and ensure correct drill size and deburring.
- Rivet spins in the hole, hole is oversized, step up diameter or verify proper countersink.
- Loose joint, stack outside grip range, re-select size or series.
