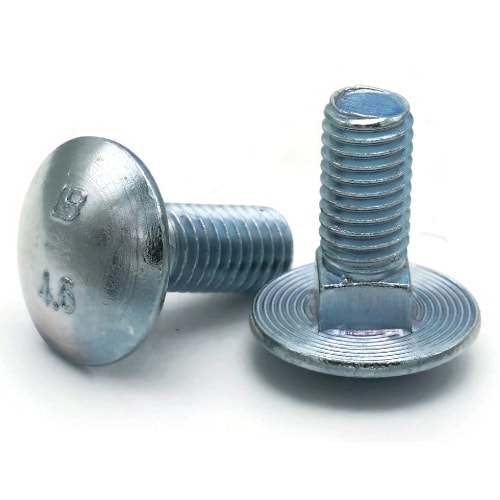

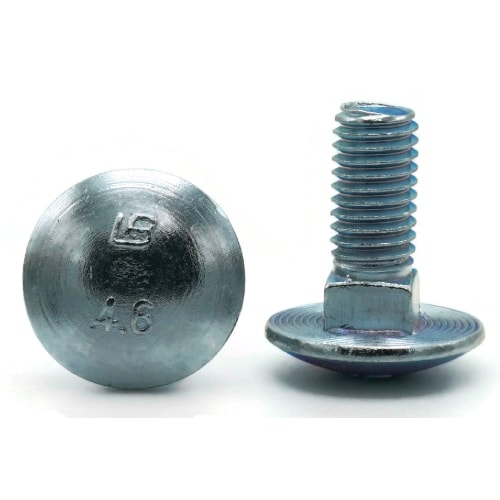

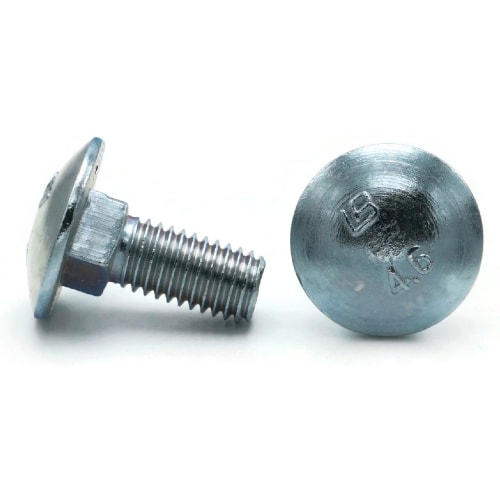

Carriage Bolts, Metric, Zinc Plated Steel, Class 4.6, DIN 603, M6-1.00 x 16MM, Full Thread
Diameter - Thread Pitch: M6-1.00
| Quantity | Unit price |
|---|---|
| To 99 |
$0.29*
|
| To 999 |
$0.20*
|
| From 1000 |
$0.17*
|
- Color: Silver
- Diameter: M6
- Head Type: Dome Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Fit: 6g
- FT = Full Thread: Yes
- Grade: Class 4.6
- Head Style: Dome
- Length: 16
- Material: Steel
- Product Type: Carriage Bolts
- Square Neck Depth: 3.4mm - 4.6mm
- Square Neck Width: 5.52mm - 6.48mm
- System of Measurement: Metric
- Thread Direction: Right Hand
- Thread Pitch: 1.00 mm
- Thread Size: M6
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Metric - DIN 603 Standards Specific
- Class 4.6 Steel
- CR+3 Zinc Plating
- Dome head
- Used mostly for wood to wood applications
- Square section grips into the part being fixed (usually wood or other soft material)
- Square section prevents the bolt from turning when the nut is tightened

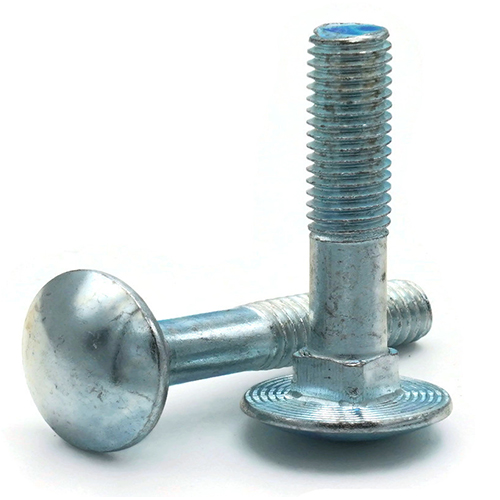

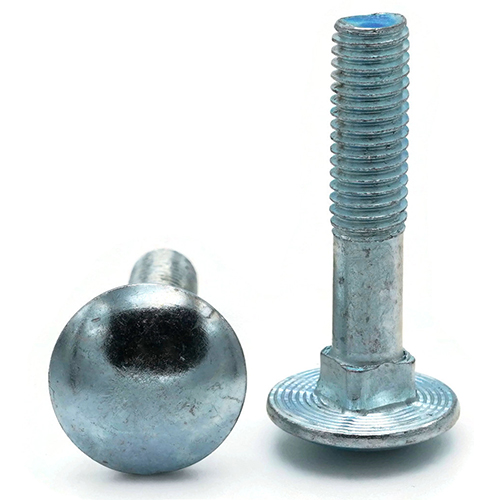

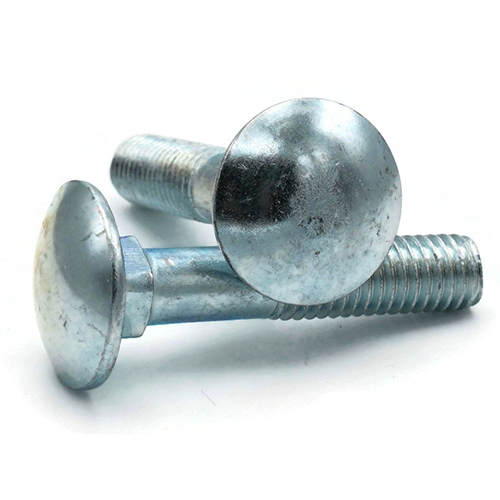

M6-1.00 Metric Zinc plated steel carriage bolts have a domed or countersunk head, and the shank is topped by a short square section under the head.
REACH and RoHS Compliant
Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head
FT = Full Thread
PT = Partial Thread
Product number:
1070-258-0002
