Drywall Anchors with Thread Bolts KapToggle®, 24 Pieces
#10-24 Thread 3/16" Drywall Anchors with Machine Screws
$18.68*
- asme: 1
- Head Type: Truss Head
- Kit: Yes
- Product Type: Kit
- Searchable field for kits: kits kit
- System of Measurement: Inch
Includes:
- 3/16" (#10-24 Thread) KapToggle® Hollow Wall Anchors - 12 Pieces
- #10-24 x 3" Phillips/Slotted Combo Truss Head Machine Screws - 12 pieces
KapToggle® Installation Instructions
3/16" KapToggle® Pull-Through Strength:
| KapToggle® Size: | Material: | Tested Pull-Through Load (lbs): | Recommended Working Load (lbs): |
|
3/16" 2" Toggle Length |
3/8" Gypsum Board 1/2" Gypsum Board 5/8" Gypsum Board Masonry Block |
68 115 133 452 |
23 38 44 150 |

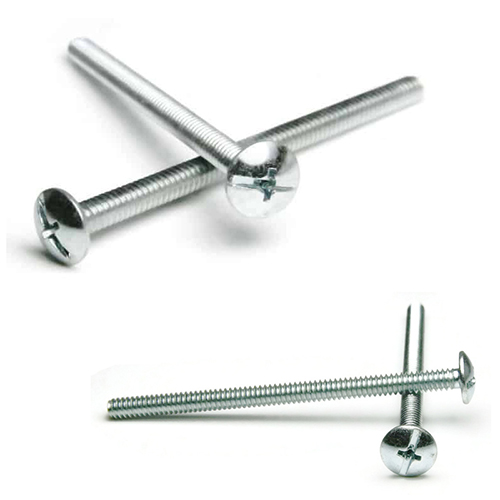

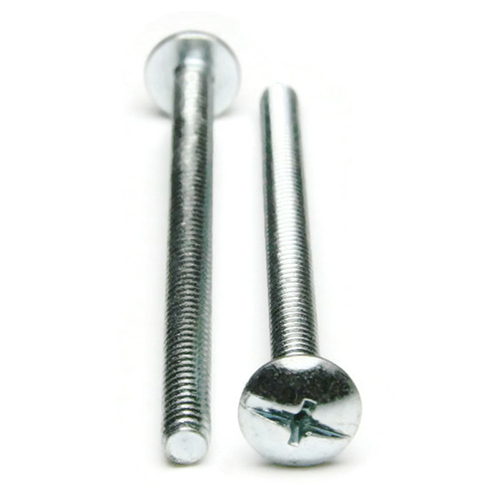

#10-24 x 3" Phillips/Slotted Combo Truss Head Machine Screws
- REACH and RoHS Compliant
- Screws that can be driven by either a Slotted or Phillips style drive
- A machine screw is commonly identified by its small size
- Commonly used with nuts or driven into tapped holes
- Zinc plated steel slotted Phillips truss head machine screws add a layer of corrosion resistance to plain alloy steel
- Zinc has a shiny light color and sometimes a blue hue
- Zinc plated steel is not suitable for extreme environment use
KapToggle® Hollow Wall Anchors
- Can be used on drywall, sheet rock, gypsum board or masonry block
- Installs in seconds
- 3 times stronger than standard wall fasteners
- 3 Piece Design: Metal Toggle, Serrated Nylon Strap, and Shoulder Washer
- Washer slides down strap and fits snug to the predrilled hole on the front side of the assembly. After installation, the extra length of the strap snaps off
- Also referred to as togglers, toggle bolts, snap toggles or zip toggles
- Nylon and Zinc Plated Steel construction
- Machined female threads and locking mechanism allows for fixtures to be installed or removed over and over without losing the toggle
- Patented design eliminates the need for longer bolts, which saves space and money
- Installation allows for perfect washer - Toggle alignment eliminating mis aligned installations
- USA Made
Product number:
8304-004
