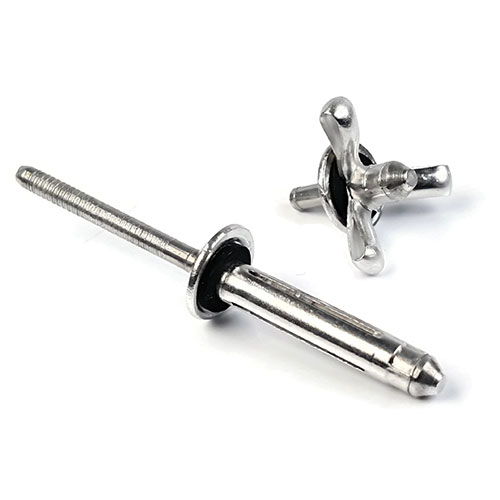

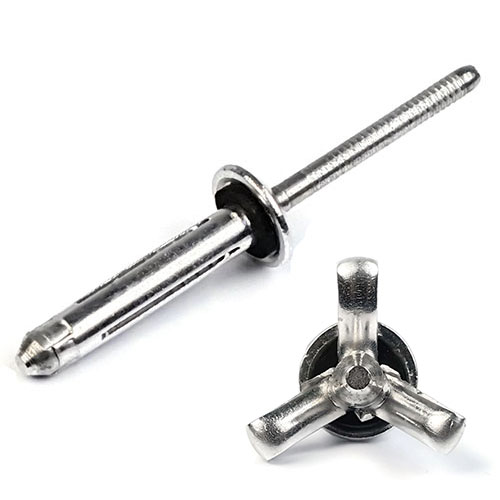

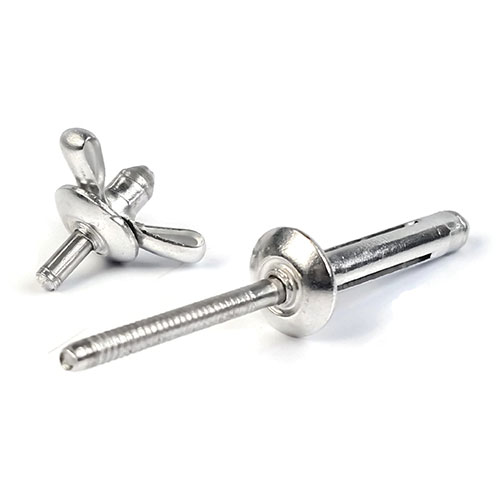

Shave Head Tri Bulb Rivets with Sealing Washer, Aluminum, 6-6 (3/16" x .050 - 0.375 Grip)
3/16" (#6) Blind Rivet Diameter with EPDM Neoprene Washer
| Quantity | Unit price |
|---|---|
| To 99 |
$1.03*
|
| To 999 |
$0.87*
|
| From 1000 |
$0.61*
|
- Additional Sizing Info: Tri Bulb Rivet Spec Sheet
- Color: Silver
- Diameter: 3/16"
- Drill (Hole) Size: #20
- Head Type: Shave Head
- Rivet Diameter Facet: #6 (3/16")
- Flange Diameter Nominal: Max 0.492 - Min 0.446
- Head Height: 0.105
- Head Style: Shave
- Material: Aluminum
- Nominal Size: #6
- Other: Includes EPDM Sealing Washer
- Product Type: Tri Fold Shave Head Bulbing Blind Rivet
- Rivet Diameter: (#6) 3/16" (.187)
- Shear (lbs): 675
- System of Measurement: Inch
- Tensile PSI: 450
- Thread Size: #6
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- 3/16" or #6 Diameter
- Trade Names: Tri Fold Shave Head Rivets, Bulbing Rivets, Exploding Rivets, Tri Grip Rivets, Shave Rivets, Trailer Rivets, Expanding Rivets
- Resemble Buck Rivets when installed and finished
- Wildly popular in trailers to replace factory rivets and provide the same clean look as the original rivets
- Included Neoprene EPDM Washer to seal any gaps
- Added resistance to pull though
- Wider effective grip range
- Caulk or sealant is recommended when installing to be truly watertight
- #6 (Specifically 6-8) Shave Rivets are heavily used on Truck Bodies to replace damaged rivets

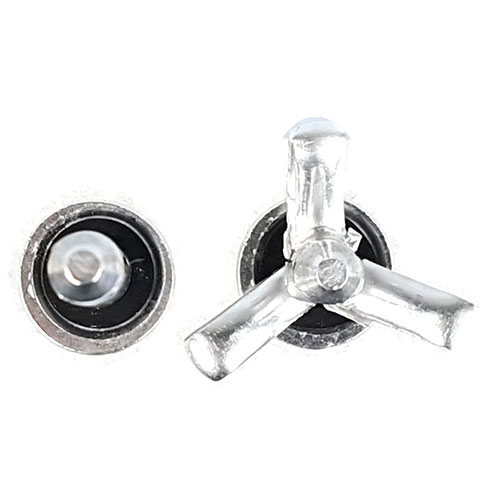

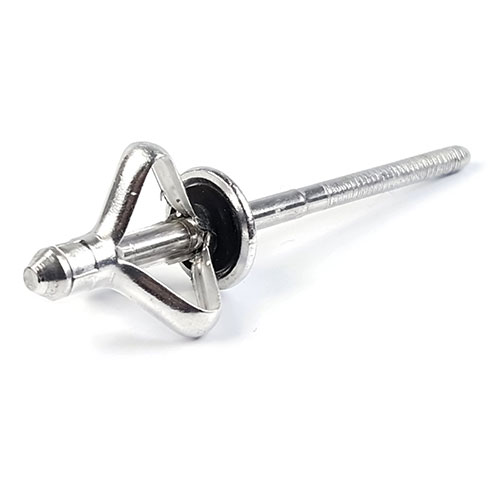

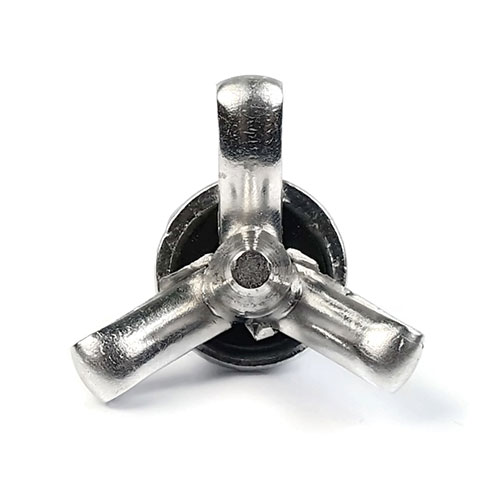

Tri-fold rivets expand in three directions as the mandrel is pulled through them, creating three anchor points. A tri fold rivet has better retention than a standard pop rivet due to their increased surface area on the blind end of the installation. An expanding rivet works better in thinner metals without causing damage to the materials.
Product number:
2060-004-002
