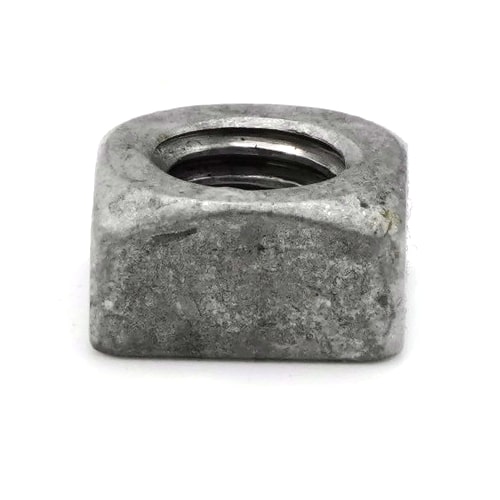

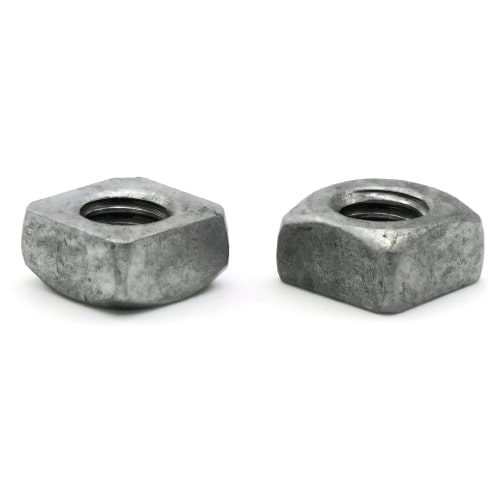

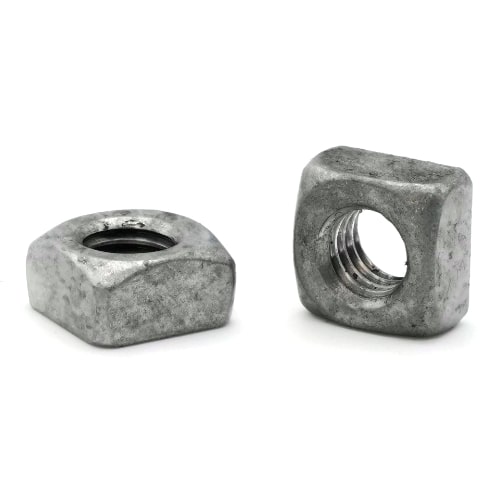

Square Nuts, Hot Dipped Galvanized, Grade 2, 1/4"-20 UNC
Four-Sided Square Nuts in Hot Dip Galvanized Steel
Quantity | Unit price |
---|---|
To 99 |
$0.09*
|
To 999 |
$0.05*
|
From 1000 |
$0.03*
|
- Across Flats (Width): Max 0.438-Min 0.423
- Color: Gray
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/4"
- Drive Style: External Square
- Thread Direction: Right Hand
- Finish: Hot Dip Galvanized
- Fit: 2B
- Grade: 2
- Internal Thread: 1/4/2020
- Material: Steel
- Part Number: 730656602968
- Product Type: Square Nut
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Four sided square nut
- Greater resistance to loosening
- More contact with surface of fastener
- Less likely to lose their shape from constant loosening/tightening
- Use with a flat washer to avoid damage from sharp edges
- Square Nuts up to #10 are flat on both sides
- 1/4" and up are beveled on one side
- Hot Dipped Galvanized products should only be used with fasteners of the same material
- Sizes listed below as: Internal Diameter - Thread Pitch
- Due to the finishing process for Hot Dip Galvanized fasteners, it is recommended to only use Hot Dip Galvanized fasteners with Hot Dip Galvanized fasteners and not mix metals. This can create threading and durability issues.
Nut Size | Width Across Flats | Thickness |
1/4"-20 | Max 0.438-Min 0.423 | Max 0.235-Min 0.203 |
5/16"-18 | Max 0.562-Min 0.545 | Max 0.283-Min 0.249 |
3/8"-16 | Max 0.625-Min 0.607 | Max 0.346- Min 0.310 |
7/16"-14 | Max 0.750-Min 0.728 | Max 0.394- Min 0.356 |
1/2"-13 | Max 0.812-Min 0.788 | Max 0.458-Min 0.418 |
5/8"-11 | Max 1.000-Min 0.969 | Max 0.569-Min 0.525 |
3/4"-10 | Max 1.125-Min 1.088 | Max 0.680-Min 0.632 |
7/8"-9 | Max 1.312-Min 1.269 | Max 0.792-Min 0.740 |
1"-8 | Max 1.500-Min 1.450 | Max 0.903-Min 0.847 |
1-1/8"-7 | Max 1.688-Min 1.631 | Max 1.030-Min 0.970 |
1-1/2"-6 | Max 2.250- Min 2.175 | Max 1.348-Min 1.276 |
Product number:
1070-008-0002
