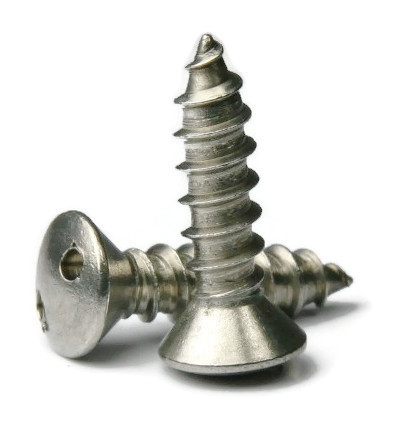

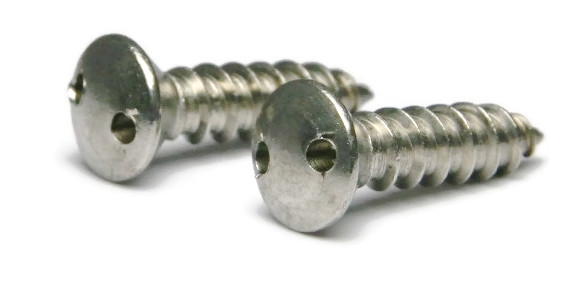

#12-14 Spanner Security Oval Head Sheet Metal Screws
Diameter: #12
- #12
- Fully Threaded
- Cut into metal, plastic or wood
- Spanner drives are also referred to as "snake eye" due to their two dot drive design
- 18-8 Stainless steel spanner oval head sheet metal screws are corrosion and rust resistant
- 18-8 Stainless Steel is the industry standard
- Commonly used for:
- Public Restrooms
- Processing Areas
- License Plates
- FREE BIT included with Purchase of 25 or more screws of the same size and length.
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Corrosion Resistant
Yes
Drive Style
Spanner
Grade
18-8
Head Diameter
Max 0.438 - Min 0.389
Head Style
Oval
Material
Stainless Steel
Overall Head Height
Max 0.200 - Min 0.155
Product Type
Spanner Oval Head Sheet Metal Screws are Fully Threaded
Spanner Drive
#12
System of Measurement (Unit)
Inch
Thread Diameter Major
(#12) Max 0.221 - Min 0.215
Thread Diameter Minor
(#12) Max 0.162 - Min 0.155
Thread Direction
Right Hand
Thread Pitch (Count)
14 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
