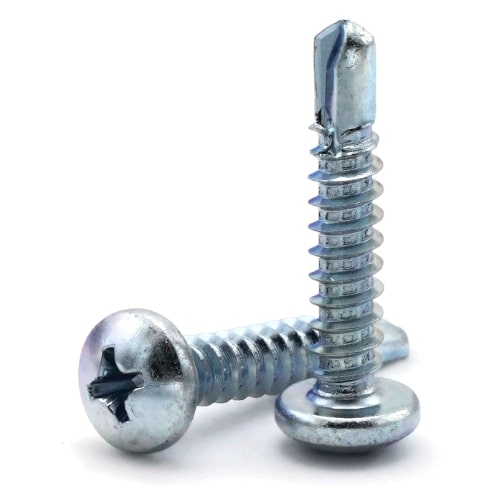

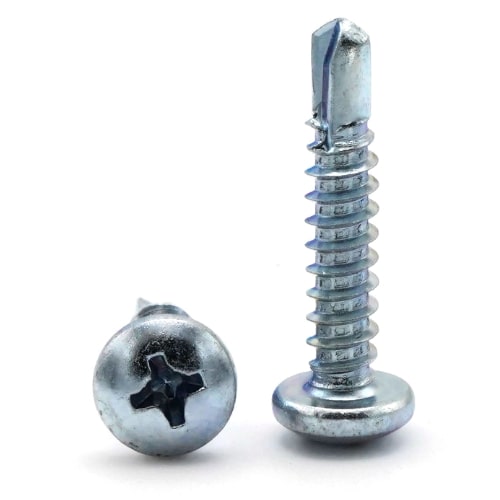

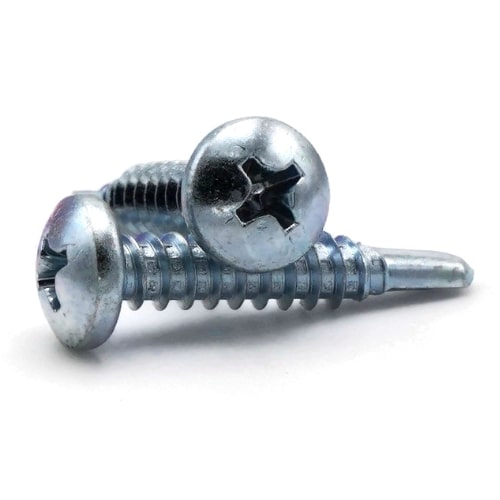

Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #10 x 1/2"
Diameter - Thread Pitch: #10-16
| Quantity | Unit price |
|---|---|
| To 99 |
$0.08*
|
| To 999 |
$0.04*
|
| From 1000 |
$0.03*
|
- ANSI: ANSI B18.6.4
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Pan Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Hardness: 40 Rockwell C
- Head Height Max: 0.11
- Head Diameter: Max 0.373 - Min 0.357
- Head Style: Pan
- Length: 1/2"
- Material (Duplicate): Zinc Plated Steel
- Material: Stainless Steel
- Overall Head Height: Max 0.110 - Min 0.099
- Phillips Drive: #2
- Point Type: TEK
- Product Type: Self Drilling Screws
- Size System: US
- Size Type: Regular
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Thread Diameter Major: (#10) 0.189"
- Thread Diameter Minor: (#10) 0.141"
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: #10-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- #10-16
- Self drilling point (TEK)
- Pierce 20 to 14 gauge metals
- Fully threaded
- Threads cut into material
- Great for attaching metal equipment to wood
- Sizes listed below as: Diameter x Length
- Zinc plated steel square drive pan head self drilling screws offer durability at a low price
Note: All #10 Zinc Plated Phillips Pan Head Self Drillers have #3 TEK points unless specified otherwise.
Product number:
3520-008-0012
