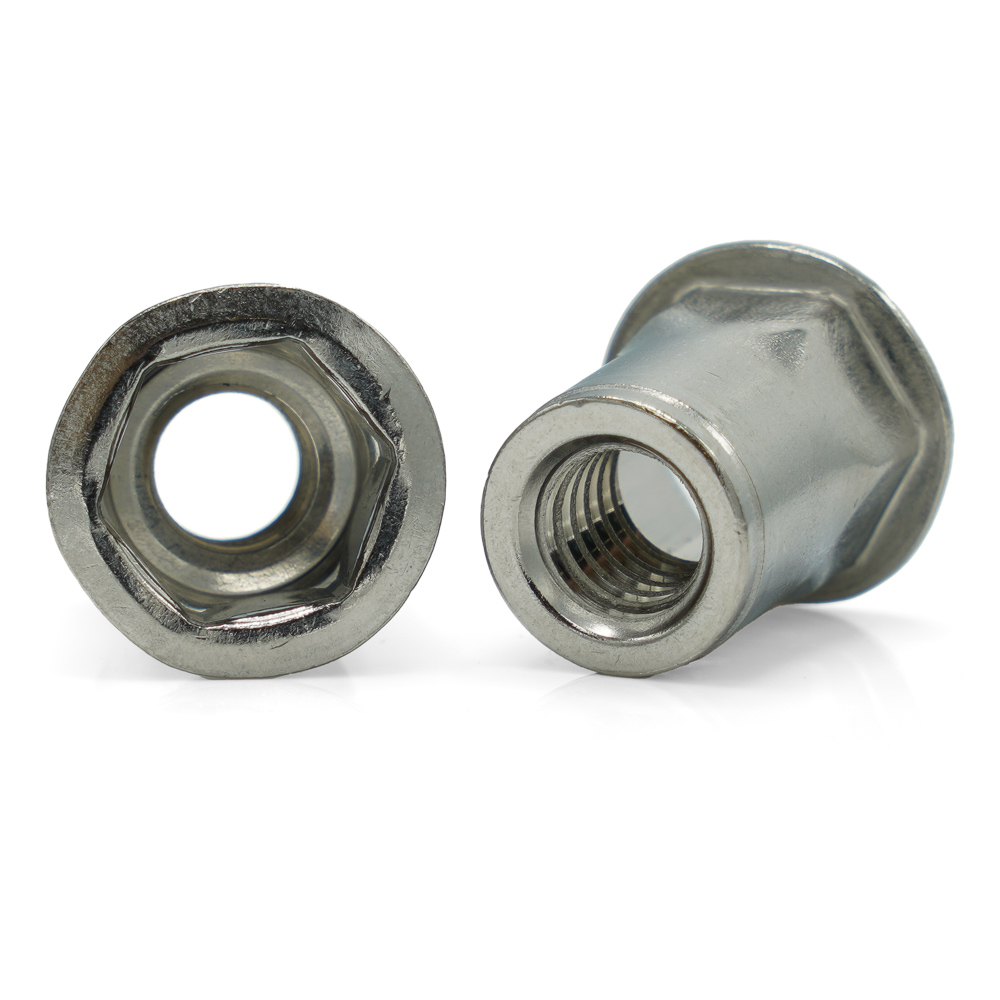

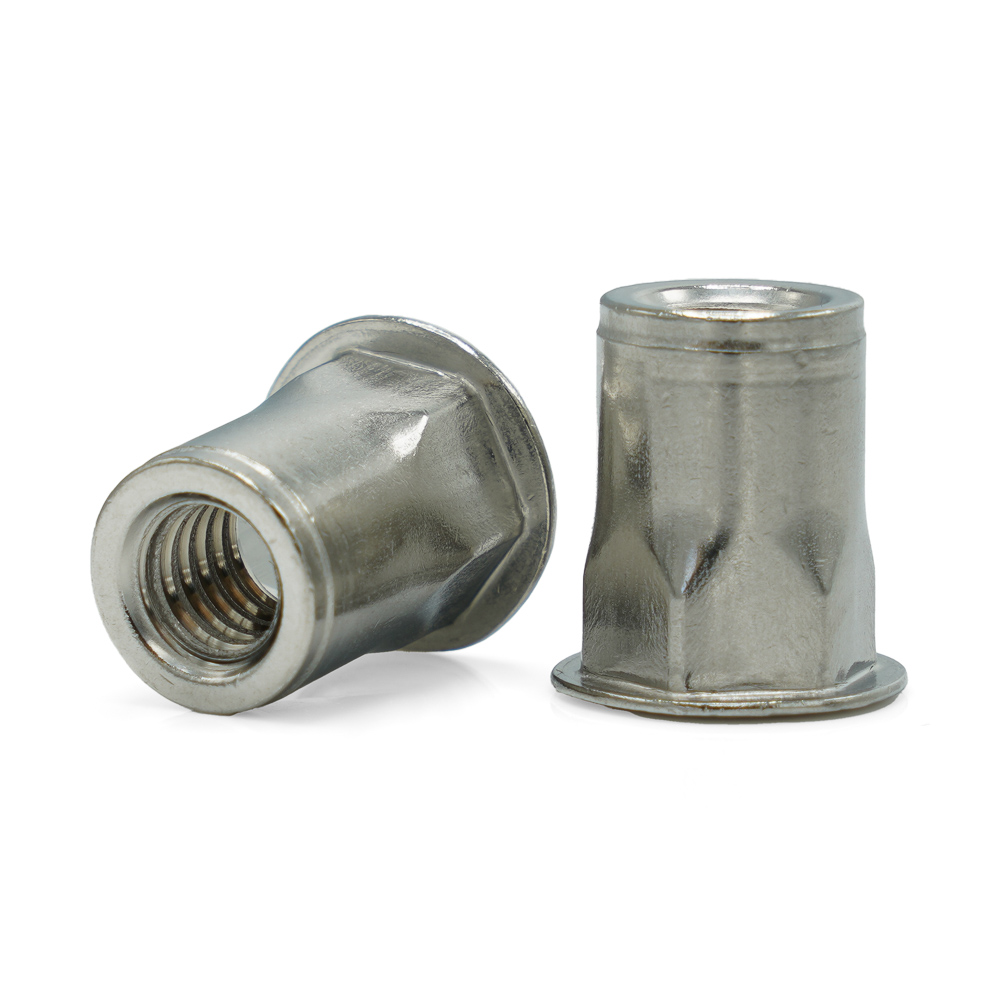

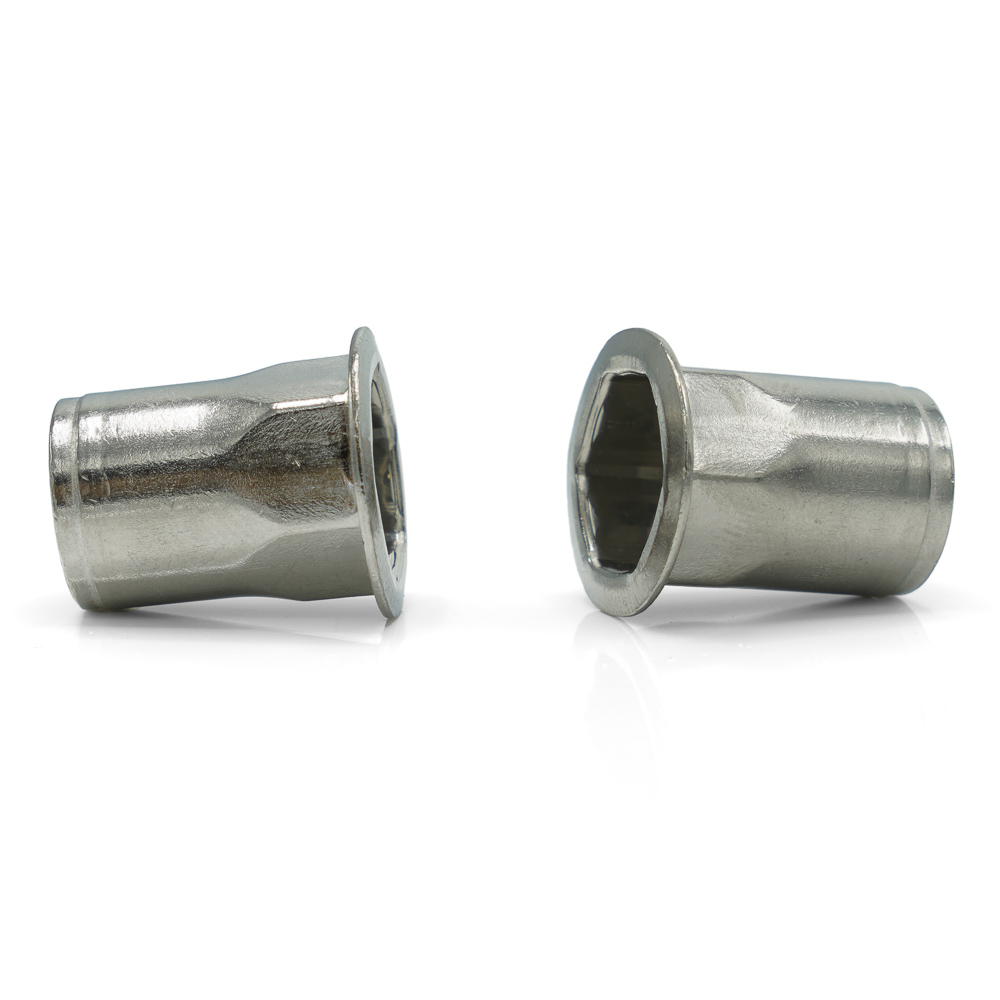

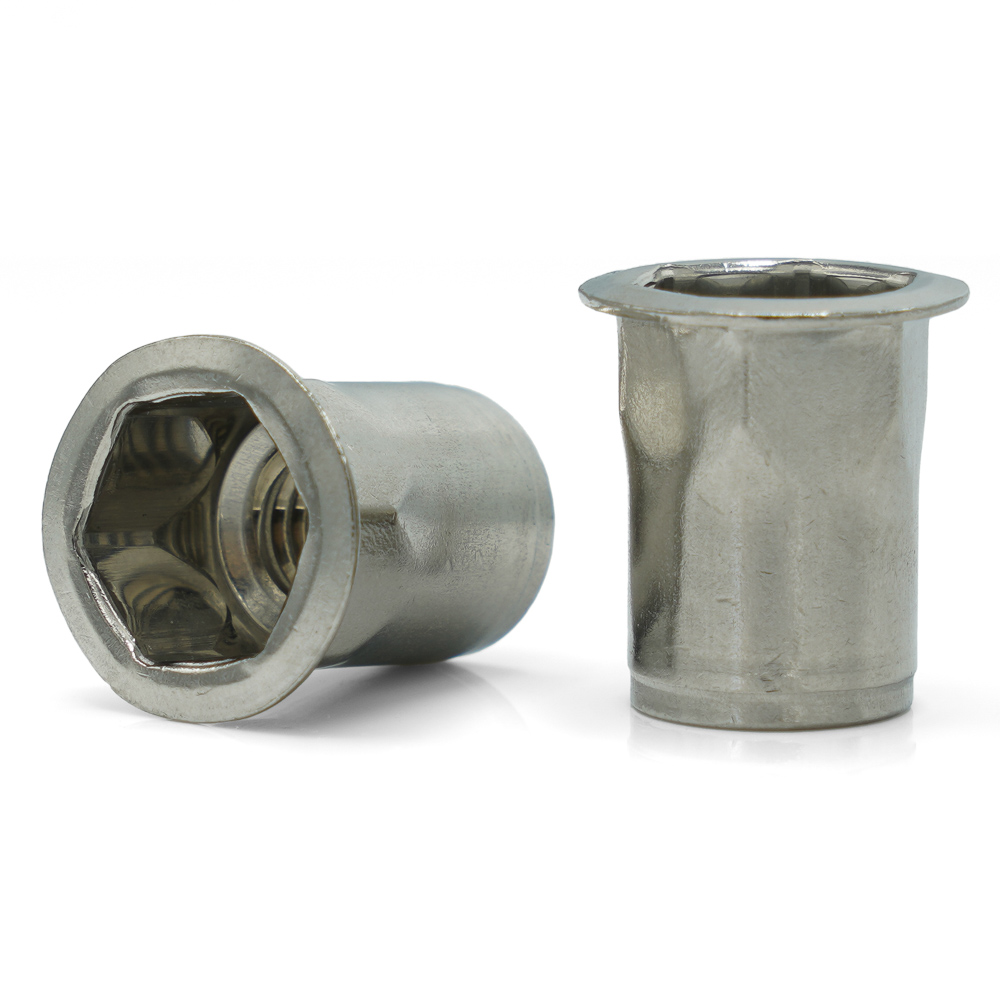

Thinwall Half Hex Low Profile Head Rivet Nut - 18-8 Stainless Steel

Thinwall Half Hex Low Profile Head Rivet Nut - 18-8 Stainless Steel

Flanged Insert With a Stainless Steel Internal Threaded Nut

• Half Hexagon shaped Rivet Nuts
• For use in hexagonal holes
• Low profile head installs near flush
• Compatible with Spin-Spin or Spin-Pull tools

Rivet Nuts are used to install a threaded insert into a material where only one side is accessible. Installed “blind”, the Rivet Nut partially collapses upon installation to grip the material between the head and compressed body. Rivet Nuts are useful for securing permanent threads into materials otherwise too thin for tapped holes.

Sizes listed as Diameter - Thread Count x Length

SKU Thread Size Grip# Grip Range Length Installed Length Head Diameter Head Height (Nominal) Body Dia Max Hole Size Across Flats
1600-002-002 #10-32 UNF 1 .020 - .130 0.435 0.275 0.39 0.027 0.28 0.281
1600-002-004 1/4-20 UNC 1 .027 - .165 0.585 0.4 0.51 0.03 0.374 0.375
1600-002-006 5/16-18 UNC 1 .027 - .150 0.685 0.53 .655* 0.035 0.499 0.5
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Thinwall Half Hex Low Profile Head Rivet Nut 18-8 SS #10-32 x 0.435 (.020 - .130 Grip)
SKU #1600-002-002
Thinwall Half Hex Low Profile Head Rivet Nut 18-8 SS #10-32 x 0.435 (.020 - .130 Grip)
SKU #1600-002-002
1
 NA
25
 $12.00 (0.48/ea)
100
 $45.00 (0.45/ea)
1000
 $410.00 (0.41/ea)
Subtotal: $0.00 /
Thinwall Half Hex Low Profile Head Rivet Nut 18-8 SS 1/4-20 x 0.585 (.027 - .165 Grip)
SKU #1600-002-004
Thinwall Half Hex Low Profile Head Rivet Nut 18-8 SS 1/4-20 x 0.585 (.027 - .165 Grip)
SKU #1600-002-004
1
 NA
25
 $22.50 (0.9/ea)
100
 $83.00 (0.83/ea)
1000
 $760.00 (0.76/ea)
Subtotal: $0.00 /
Thinwall Half Hex Low Profile Head Rivet Nut 18-8 SS 5/16-18 x 0.685 (.027 - .150 Grip)
SKU #1600-002-006
Thinwall Half Hex Low Profile Head Rivet Nut 18-8 SS 5/16-18 x 0.685 (.027 - .150 Grip)
SKU #1600-002-006
1
 NA
25
 $35.00 (1.4/ea)
100
 $129.00 (1.29/ea)
1000
 $1,180.00 (1.18/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Rivet King RK-100 Rivet Nut Manual Tool - #6-32 to #1/4-20
Rivet King RK-100 Rivet Nut Manual Tool - #6-32 to #1/4-20 1600-024-010
Rivet King RK-100 Rivet Nut Manual Tool - #6-32 to #1/4-20
Rivet King RK-100 Rivet Nut Manual Tool - #6-32 to #1/4-20
Our Price: $59.00
Subtotal: $0.00 /
Rivet King RK-22 Ratchet Rivet Nut Tool 8-32 to 1/2-13
Rivet King RK-22 Ratchet Rivet Nut Tool 8-32 to 1/2-13 1600-024-006
Rivet King RK-22 Ratchet Rivet Nut Tool 8-32 to 1/2-13
Rivet King RK-22 Ratchet Rivet Nut Tool 8-32 to 1/2-13
Our Price: $308.85
Subtotal: $0.00 /
Rivet King RK-24 Rivet Nut Hand Tool - 6-32 to 1/2-13
Rivet King RK-24 Rivet Nut Hand Tool - 6-32 to 1/2-13 1600-024-014
Rivet King RK-24 Rivet Nut Hand Tool - 6-32 to 1/2-13
Rivet King RK-24 Rivet Nut Hand Tool - 6-32 to 1/2-13
Our Price: $325.00
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Head Style
Low Profile
Material
Stainless Steel
Product Type
Rivet Nut
Standards Met
ROHS Compliant
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
