Caged Retainer Weld Nuts in Plain Steel

Plain Steel Retainer Weld Nuts

Weld Nut with a Floating Cage Nut for Misaligned Holes

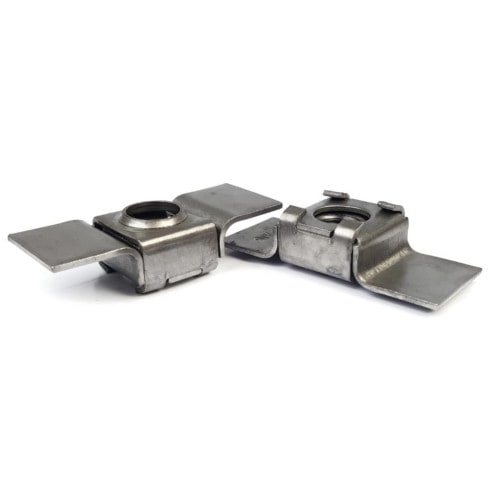

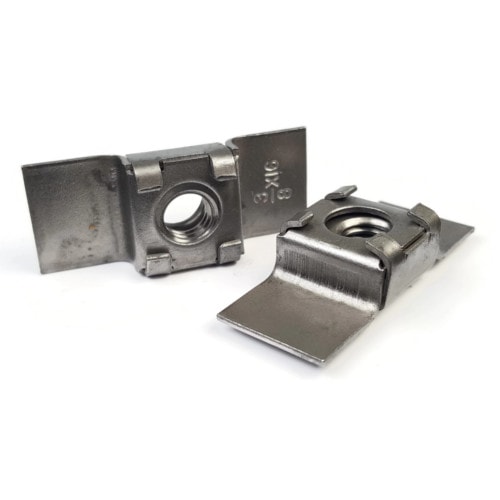

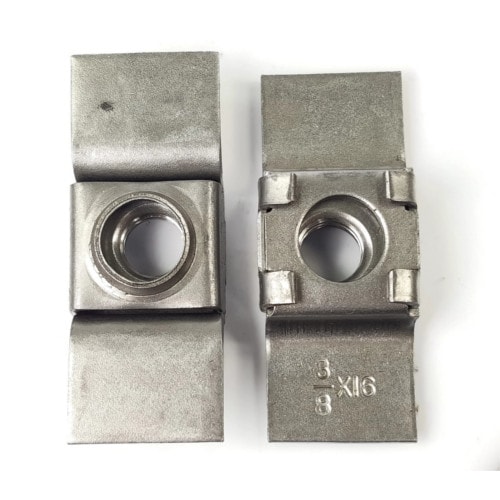

Retainer weld nuts, also known as bridge weld nuts or floating cage nuts, have a floating nut held within a "cage" or retainer to allow off-center or misaligned screws to be installed. The retainer itself is welded to a workpiece while the nut is allowed to float freely and help compensate for building inconsistencies.

These types of weld nuts are well suited to projects with hole misalignment and blind assembly. Floating Retainer Weld Nuts come in plain steel.

You can find these nuts used in many applications including:

  • Fork Lifts
  • Rail Cars
  • Ocean Containers
  • Automobiles
  • Furniture
  • Applicances
  • And Many More!

Retainer Weld Nuts sizes are displayed as the Thread Size (Diameter x Thread Pitch) for the Nut within the Retainer Cage


You May Also Like:

Welding Safety Equipment
Welding Equipment

NOTE: Measurements below are for the ENTIRE Retainer Assembly

Size Length Thickness Width
1/4" 1-3/4" 7/16" 9/16"
5/16" 2" 33/64" 25/32"
3/8" 2" 33/64" 25/32"
1/2" 2-1/4" 17/32" 15/16"
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Floating Cage Retainer Weld Nuts in Plain Steel - 1/4"-20
SKU #8100-018-0006
Floating Cage Retainer Weld Nuts in Plain Steel - 1/4"-20
SKU #8100-018-0006
1
$1.80 (1.8/ea)
25
$43.75 (1.75/ea)
100
$167.00 (1.67/ea)
1000
$1,660.00 (1.66/ea)
Subtotal: $0.00 /
Floating Cage Retainer Weld Nuts in Plain Steel - 5/16"-18
SKU #8100-018-0008
Floating Cage Retainer Weld Nuts in Plain Steel - 5/16"-18
SKU #8100-018-0008
1
$1.94 (1.94/ea)
25
$47.50 (1.9/ea)
100
$182.00 (1.82/ea)
1000
$1,800.00 (1.8/ea)
Subtotal: $0.00 /
Floating Cage Retainer Weld Nuts in Plain Steel - 3/8"-16
SKU #8100-018-0010
Floating Cage Retainer Weld Nuts in Plain Steel - 3/8"-16
SKU #8100-018-0010
1
$2.02 (2.02/ea)
25
$49.75 (1.99/ea)
100
$191.00 (1.91/ea)
1000
$1,890.00 (1.89/ea)
Subtotal: $0.00 /
Floating Cage Retainer Weld Nuts in Plain Steel - 1/2"-13
SKU #8100-018-0012
Floating Cage Retainer Weld Nuts in Plain Steel - 1/2"-13
SKU #8100-018-0012
1
$4.12 (4.12/ea)
25
$102.00 (4.08/ea)
100
$401.00 (4.01/ea)
1000
$3,990.00 (3.99/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Finish
Plain
Material
Steel
Product Type
Retainer Weld Nut
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
