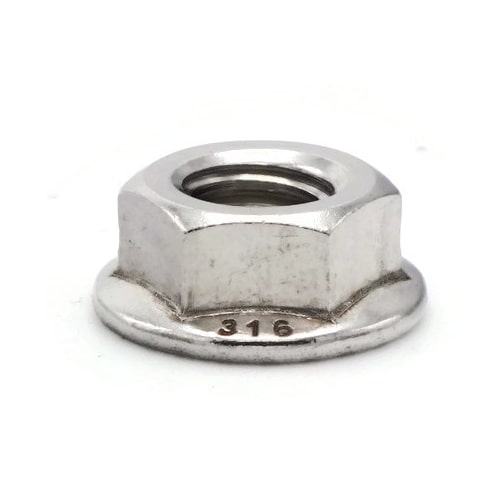

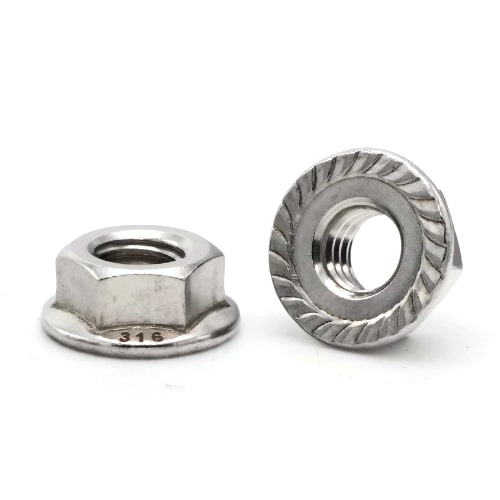

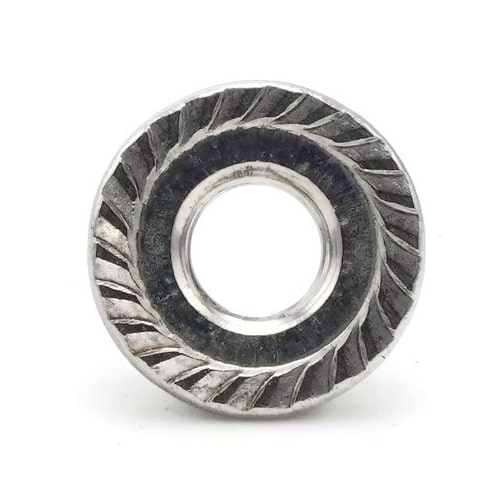

Flange Nuts, Serrated, Stainless Steel 316, 1/4"-20 (.438" Flats x .236" Thick)

Serrated Hex Flange Nuts in Corrosion Resistant 316 Stainless Steel

Quantity	Unit price
To 99	$0.20*
To 999	$0.15*
From 1000	$0.13*

Size

#6-32

#8-32

#10-24

#10-32

1/4"-20

5/16"-18

3/8"-16

1/2"-13

Across Flats (Width): .438"
Color: Silver
Condition: New
Corrosion Resistant: Yes
Diameter: 1/4"

Drive Style: External Hex
Thread Direction: Right Hand
Fit: 2B
Grade: 316
Internal Thread: 1/4/2020
Marine Grade: Yes
Material: Stainless Steel
Part Number: 046737873173
Product Type: Flange Nut
Size System: US
Size Type: Regular
System of Measurement: Inch
Thread Direction: Right Hand
Thread Pitch: 20 Per Inch
Thread Size: 1/4"-20
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Toggle More

Nut with a wide flange
Acts as a washer
Less likely to loosen
Serrated for extra grip
Substitute for a lock nut
Known as a serrated flange nut, serrated hex flange nut, flange lock nut, or serrated hex flange lock nut
Will scratch the surface it attaches to

Reference Materials

US Serrated Flange Nut Size Chart (PDF) - Print Friendly, 108Kb

_x000D_ _x000D_ _x000D_ _x000D_ Nut Sizes_x000D_ _x000D_ _x000D_ Flats_x000D_ _x000D_ _x000D_ Thickness_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ #6_x000D_ _x000D_ _x000D_ 0.312"_x000D_ _x000D_ _x000D_ 0.171"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ #8_x000D_ _x000D_ _x000D_ 0.344"_x000D_ _x000D_ _x000D_ 0.203"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ #10_x000D_ _x000D_ _x000D_ 0.375"_x000D_ _x000D_ _x000D_ 0.219"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 1/4"_x000D_ _x000D_ _x000D_ 0.438"_x000D_ _x000D_ _x000D_ 0.236"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 5/16"_x000D_ _x000D_ _x000D_ 0.500"_x000D_ _x000D_ _x000D_ 0.283"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 3/8"_x000D_ _x000D_ _x000D_ 0.562"_x000D_ _x000D_ _x000D_ 0.347"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 1/2"_x000D_ _x000D_ _x000D_ 0.750"_x000D_ _x000D_ _x000D_ 0.458"_x000D_ _x000D_ _x000D_ _x000D_

Product number: 1063-100000-0042

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
#6-32 1063-100000-0002	1 $0.52 (0.52/ea)	100 $35.00 (0.35/ea)	1000 $300.00 (0.3/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, #6-32 (.312" Flats x .171" Thick) $0.00
#8-32 1063-100000-0012	1 $0.41 (0.41/ea)	100 $27.00 (0.27/ea)	1000 $240.00 (0.24/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, #8-32 (.344" Flats x .203" Thick) $0.00
#10-24 1063-100000-0022	1 $0.48 (0.48/ea)	100 $32.00 (0.32/ea)	1000 $280.00 (0.28/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, #10-24 (.375" Flats x .219" Thick) $0.00
#10-32 1063-100000-0032	1 $0.48 (0.48/ea)	100 $32.00 (0.32/ea)	1000 $280.00 (0.28/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, #10-32 (.375" Flats x .219" Thick) $0.00
1/4"-20 1063-100000-0042	1 $0.20 (0.2/ea)	100 $15.00 (0.15/ea)	1000 $130.00 (0.13/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, 1/4"-20 (.438" Flats x .236" Thick) $0.00
5/16"-18 1063-100000-0052	1 $0.36 (0.36/ea)	100 $23.00 (0.23/ea)	1000 $210.00 (0.21/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, 5/16"-18 (.500" Flats x .283" Thick) $0.00
3/8"-16 1063-100000-0062	1 $0.55 (0.55/ea)	100 $37.00 (0.37/ea)	1000 $340.00 (0.34/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, 3/8"-16 (.562" Flats x .347" Thick) $0.00
1/2"-13 1063-100000-0072	1 $1.22 (1.22/ea)	100 $81.00 (0.81/ea)	1000 $380.00 (0.38/ea)	Quantity for Flange Nuts, Serrated, Stainless Steel 316, 1/2"-13 (.750" Flats x .458" Thick) $0.00

Page Total: $0.00
