Ken Forging Eye Bolts, Shoulder Pattern, Stainless Steel 304, 5/16"-18 x 1-1/2", USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| To 9 |
$28.57*
|
| To 99 |
$25.72*
|
| From 100 |
$23.66*
|
- Brand: Ken Forging
- ASTM: A-193-B8
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 5/16"
- Drive Style: External Hex
- Eye Bolt Pattern: Shoulder
- Eye Inside Diameter: 7/8"
- Eye Outside Diameter: 1-7/16"
- Head Type: Eye
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 304
- Head Style: Eye
- Length: 1-1/2"
- Material: Stainless Steel
- Part Number: 720572100983
- Product Type: Eye Bolts
- Shank Diameter: 5/16"
- Size System: US
- Size Type: Regular
- Standards Met: ASTM A-193-B8
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 18 Per Inch
- Thread Size: 5/16"-18
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- USA Made
- ASTM A489 and UNC-2A
- 304 Stainless steel is corrosion and rust resistant
- Ideal for exterior environments or when exposed to freshwater moisture

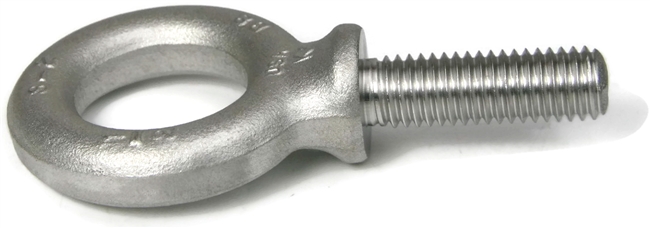

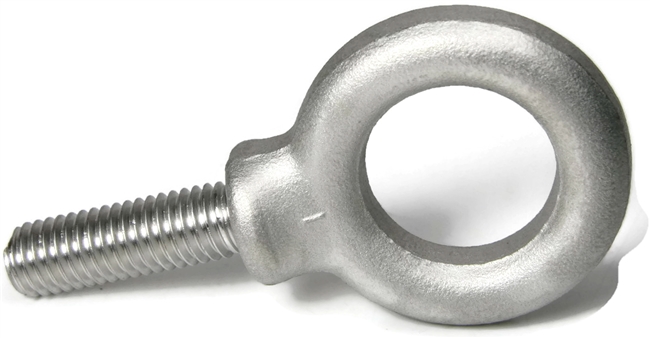

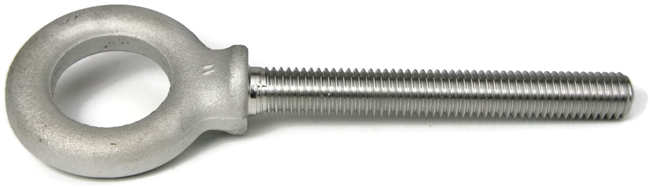

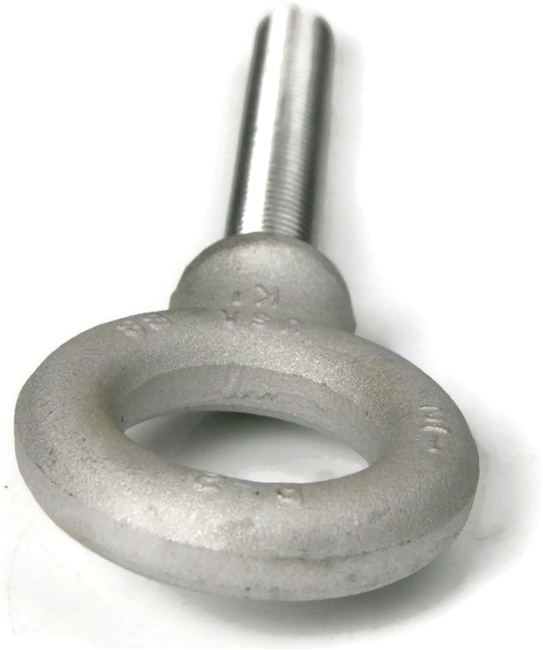

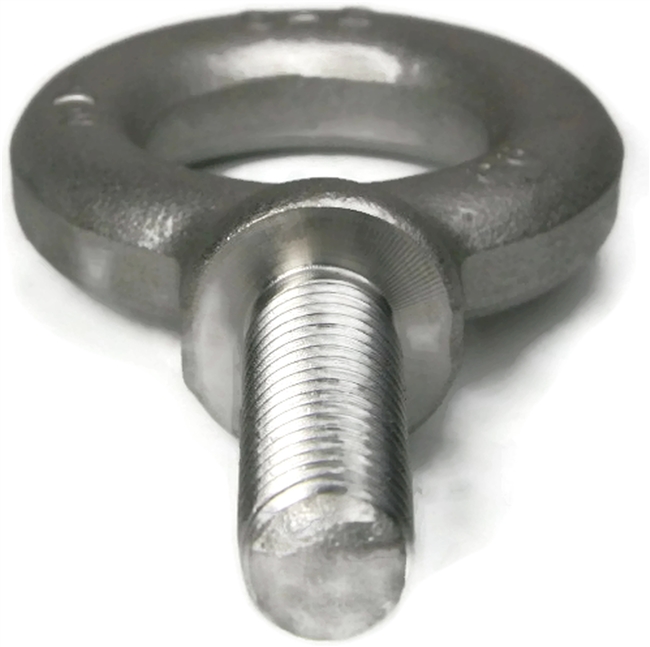

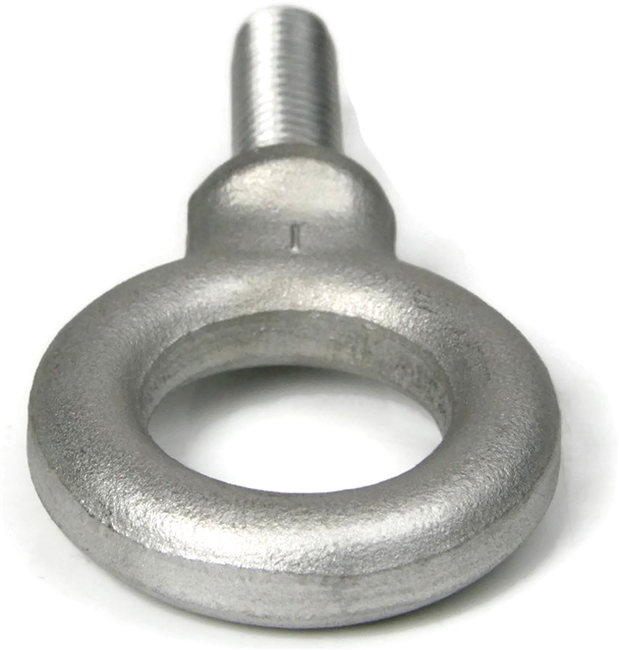

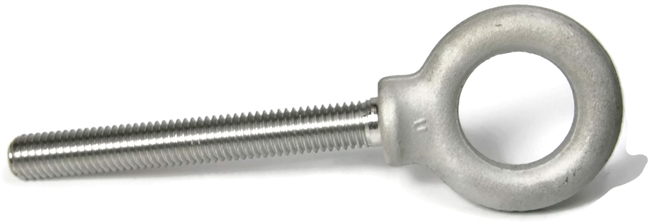

5/16"-18 Stainless Steel Shoulder Pattern Eye Bolts have a threaded shank with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial rigging applications. In a shoulder pattern Eye Bolt, there is a shoulder between the shank and the eye. Plain eye bolts feature a ring directly above the threaded portion of the fastener, whereas shoulder pattern variety features a shoulder between the ring and the shank.
Eye bolts from Albany County Fasteners in 304 Stainless Steel are Drop Forged, Passivated and Electropolished for a durable corrosion resistant finish.
If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.
Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.
Sizes listed as Shank Diameter - Thread Pitch x Shank Length
Proudly Made in The USA
