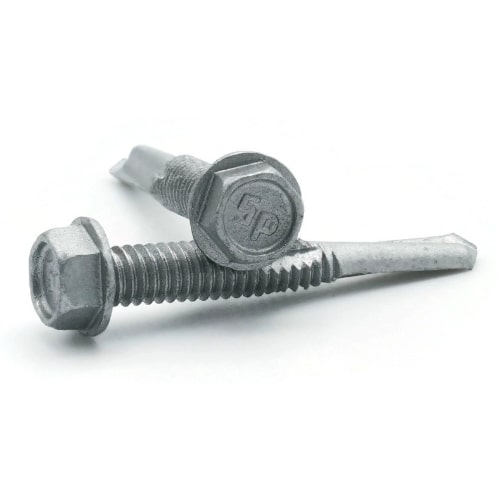

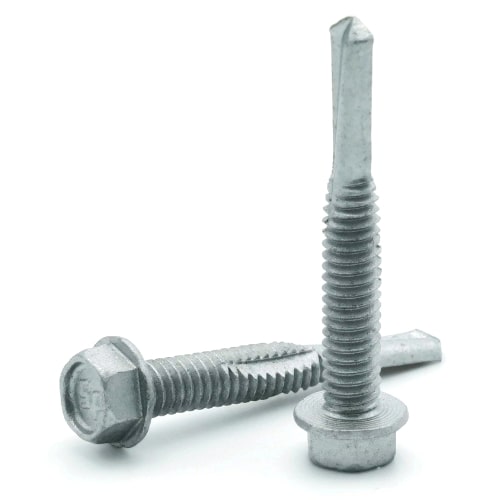

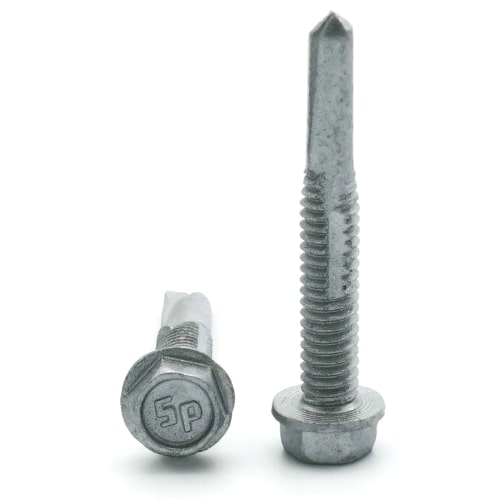

Sheet Metal Screws, Hex Washer Head, Self Drilling T5, Strong Shield Coated Steel, #12-24 x 1-1/2"
Diameter - Thread Pitch: #12-24
| Quantity | Unit price |
|---|---|
| To 99 |
$0.32*
|
| To 999 |
$0.27*
|
| From 1000 |
$0.24*
|
- Across Flats (Width): 5/16" (Max 0.312 - Min 0.309)
- ASTM: C 1513 & A 510
- Color (Duplicate): Silver
- Color: Silver/Gray
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #12
- Drive Style: External Hex
- Elongation: 30%
- Head Type: Hex Washer Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Strong-Shield
- Head Diameter: 5/16"
- Head Size: 5/16"
- Head Style: Hex Washer
- Length: 1-1/2"
- Material (Duplicate): Strong-Shield Coated Steel
- Material: Steel
- Point Type: TEK
- Product Type: Self Drilling Screws
- Size System: US
- Size Type: Regular
- Standards Met: ASTM C 1513 & ASTM A 510, F.I.P.-1000.7, SAE J78
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 5
- Thread Diameter Major: (#12) 0.215"
- Thread Diameter Minor: (#12) 0.164"
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: #12-24
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Wrench Size: 5/16"
- #12-24
- Hexagon drive for use with a wrench or socket
- Fully Threaded from tip to head
- Integral washer at the top of the head to minimize chance of pull-through
- Washer portion of screw distributes pressure over a larger surface area
- TEK 5 Point used for drilling into structural steel
- Strong-Shield coating features high corrosion resistance and protection from acid rain & rust
- Designed to work with ACQ treated lumber
- Exceeds 1,000/hrs. salt spray resistance
Product number:
1006-002-0012
