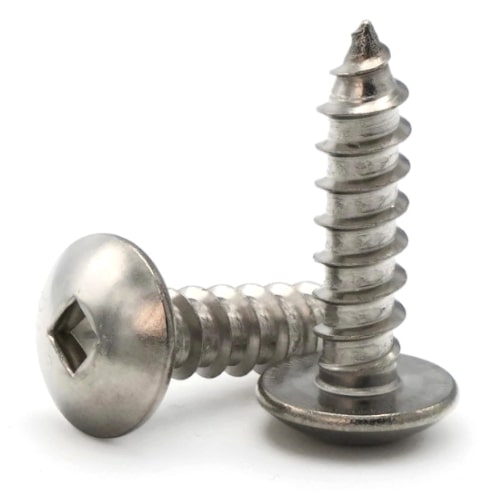

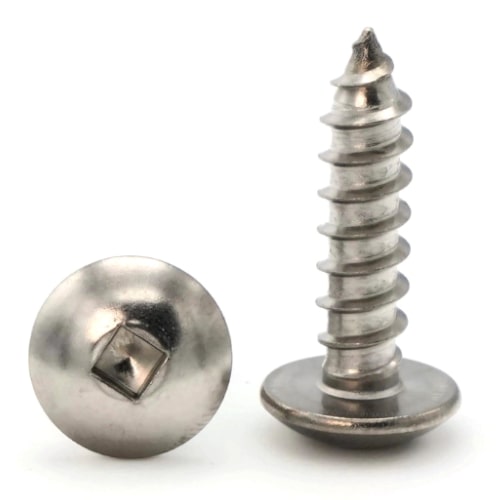

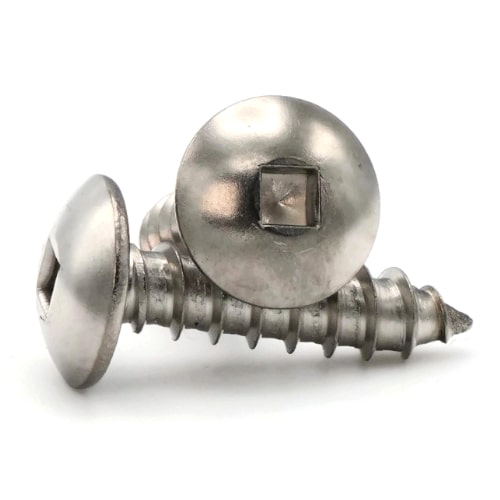

Sheet Metal Screw, Square Drive Truss Head, Stainless Steel 18-8, #10 x 3/4"
Diameter - Thread Pitch: #10-12
| Quantity | Unit price |
|---|---|
| To 99 |
$0.12*
|
| To 999 |
$0.10*
|
| From 1000 |
$0.09*
|
- ANSI: B18.6.4
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Internal Square
- Elongation: 30%
- Head Type: Truss Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 18-8
- Hardness: 100 Rockwell B
- Head Diameter: Max 0.448 - Min 0.425
- Head Style: Truss
- Length: 3/4"
- Material: Stainless Steel
- Overall Head Height: Max 0.118 - Min 0.103
- Part Number: 618930245530
- Point Type: A
- Product Type: Square Drive Truss Head Sheet Metal Screws
- Size Type: Regular
- Square Drive: #2
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- Tensile PSI: 100,000 - 125,000 PSI
- Thread Direction: Right Hand
- Thread Pitch: 12 Per Inch
- Thread Size: #10
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Yield PSI: 55,000 - 75,000 PSI
- #10-12
- Sharp cutting threads that cut into material
- Fully Threaded
- This screw features an truss head
- Over-sized and undercut head to prevent pull-though
- 18-8 Stainless steel square drive truss head sheet metal screws are corrosion resistant
- Suitable for fresh water moisture environments
- Square Drive style used to reduce the chance of stripping when installed properly
- Most commonly used for:
- Sheet Metal
- Wood
- Plastic
- Sizes listed below as: Diameter - Thread Pitch
Product number:
1010-6100-6-0012
