Lag Shield Expansion Anchors, Zinc Plated Steel, 1/4" x 1" (Short)
Expansion Shield Anchors for Lag Screws in Concrete, Brick, and Block Applications
| Quantity | Unit price |
|---|---|
| To 99 |
$0.42*
|
| To 999 |
$0.36*
|
| From 1000 |
$0.31*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Diameter: 1/4"
- Head Type: No Head
- Thread Direction: Right Hand
- Finish: Zinc Plated
- Length: 1"
- Material (Duplicate): Zinc Plated Steel
- Material: Steel
- Part Number: 3661114112675
- Pattern: Lag Shield Anchors
- Product Type: Lag Shield Expansion Anchors
- Size: 1/4" x 1"
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

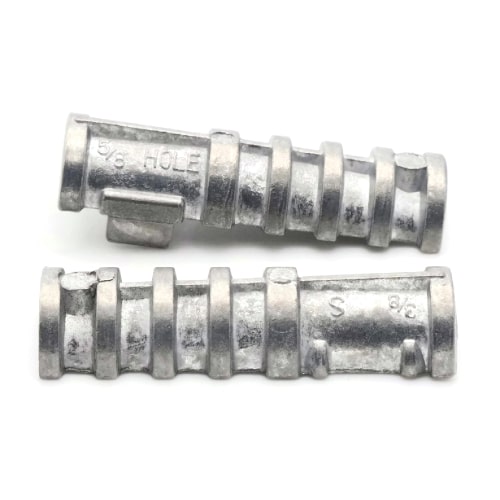

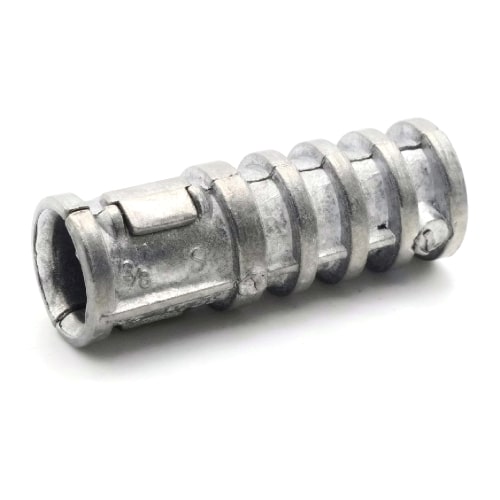

Zinc Plated Lag Shield Expansion Anchors
- Pre-assembled two-part expansion shields designed for use with lag screws

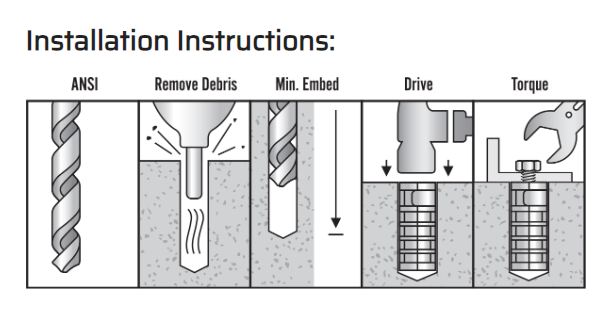

- Expand as the lag screw is fastened through the anchor, creating a secure hold
- Feature precise tapered internal threading for easy lag screw installation
- Available in both short and long length variants to suit various application needs
- Zinc plated carbon steel construction provides corrosion resistance and durability
- Technical Data
Zinc Plated Lag Shield Expansion Anchors, also known as Lag Shield Anchors or Expansion Shield Anchors for Lag Screws, are designed to provide reliable anchoring in concrete, brick, and block. These anchors consist of a pre-assembled, two-part expansion shield that expands as the lag screw is tightened, creating a secure hold in the base material.
Expansion Shield Anchors for Lag Screws feature precise tapered internal threading, allowing for easy installation of the lag screw. The zinc plated carbon steel construction offers corrosion resistance and long-lasting durability. Lag Shield Anchors are available in both short and long lengths to accommodate different application requirements.
Lag Shield Expansion Anchors are commonly used for anchoring:
- Wooden posts and columns
- Handrails and guardrails
- Electrical panels and junction boxes
- HVAC equipment and ductwork
- Pipe and conduit supports
- Machinery and heavy equipment
- Shelving and racking systems
Available Sizes:
| Thread Diameter | Anchor Length | Drill (Hole) Size |
| 1/4" | 1" | 1/2" |
| 1/4" | 1-1/2" (Long) | 1/2" |
| 5/16" | 1-1/4" (Short) | 1/2" |
| 5/16" | 1-3/4" (Long) | 1/2" |
| 3/8" | 1-3/4" (Short) | 5/8" |
| 3/8" | 2-1/2" (Long) | 5/8" |
| 1/2" | 2" (Short) | 3/4" |
| 1/2" | 3" (Long) | 3/4" |
| 5/8" | 2" (Short) | 7/8" |
| 5/8" | 3-1/2" (Long) | 7/8" |
*Values are average ultimate values and are offered as a guide only; they are not guaranteed in all applications.
Thread Diameter - Thread Pitch x Length of Anchor
Lag Screws Sold Separately
When selecting Zinc Plated Lag Shield Anchors, ensure that the thread diameter matches your lag screw and choose the appropriate length based on the thickness of the material being anchored. With their easy installation and reliable performance, Expansion Shield Anchors for Lag Screws provide a strong, secure anchoring solution for various applications in concrete, brick, and block.
