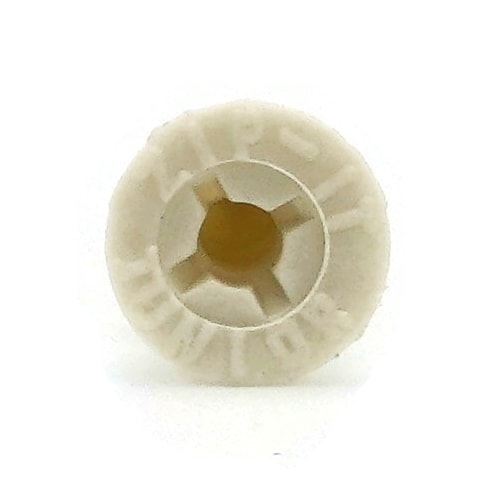

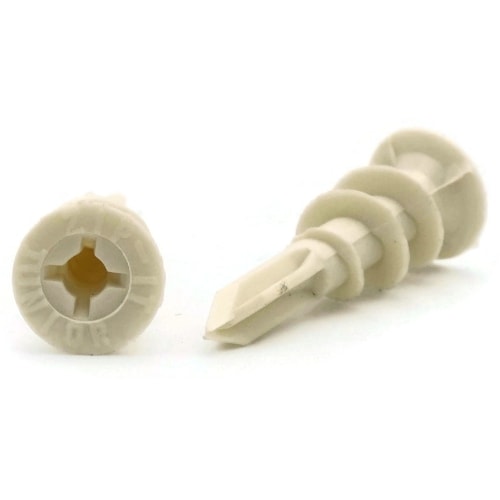

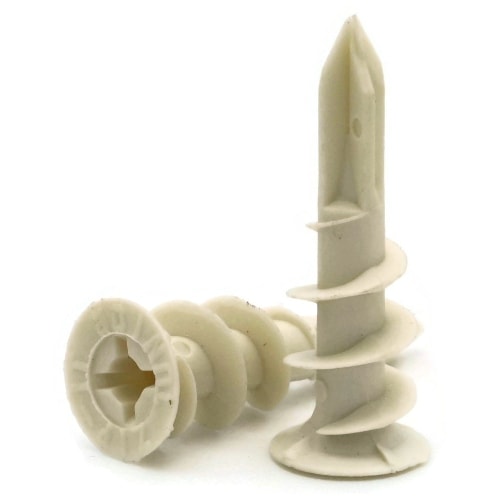

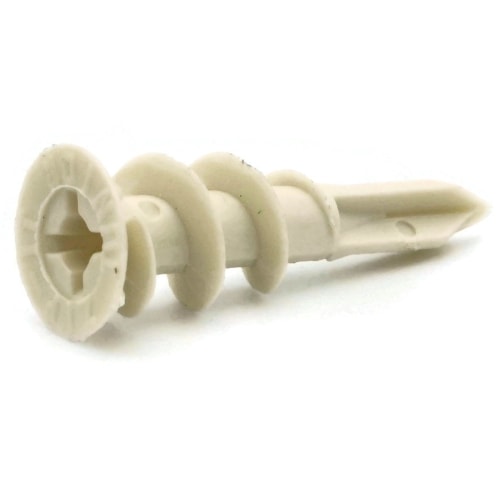

Self Drilling Drywall Anchors, Nylon Plastic, #8 x 1-11/16
Nylon Plastic Anchors for Greater Hold in Drywall with Sheet Metal Screws
| Quantity | Unit price |
|---|---|
| To 99 |
$0.49*
|
| To 999 |
$0.45*
|
| From 1000 |
$0.43*
|
- Diameter: #8
- Drive Style: Phillips
- Head Type: Flat Head
- Length: 1-11/16
- Material: Nylon
- Product Type: Self Drilling Drywall Anchors
- System of Measurement: Inch
- Thread Pitch: 8 Per Inch
- Thread Size: #8
- A Drywall Anchor with a Self Drilling Tip for Fast & Easy Installation
- Works in Any Thickness of Drywall without Tearing the Paper Coating
- Used with Sheet Metal Screws to provide better retention in Drywall or Gypsum Board
- Deep cutting threads around the anchor body and tapered bottom designed to puncture and drill a hole in the drywall
- Can be backed out of its hole using a #2 Phillips bit
- Designed for light-weight applications including hanging, pictures, curtain hardware and signs
- Made from light weight Nylon Plastic
Sizes Listed as: For use with Screw Diameter Size x Overall Anchor Length
| For Use with Screw Diameter: | Collar / Flange Diameter: | Anchor Length: | Wall Thickness Range: |
| #6 | 15/32" | 1-5/16" | 3/8" - 5/8" |
| #8 | 9/16" | 1-11/16" | 3/8"-1" |
#6 Strength Specifications:
| Gypsum Board Thickness: | Ultimate Tensile Strength: | Ultimate Shear Strength: |
| 3/8" | 45 | 50 |
| 1/2" | 55 | 55 |
| 5/8" | 70 | 70 |
| 3/4" | 75 | 80 |
#8 Strength Specifications:
| Gypsum Board Thickness: | Ultimate Tensile Strength: | Ultimate Shear Strength: |
| 3/8" | 50 | 60 |
| 1/2" | 65 | 70 |
| 5/8" | 80 | 100 |
| 3/4" | 85 | 100 |
Product number:
5804-004-012
