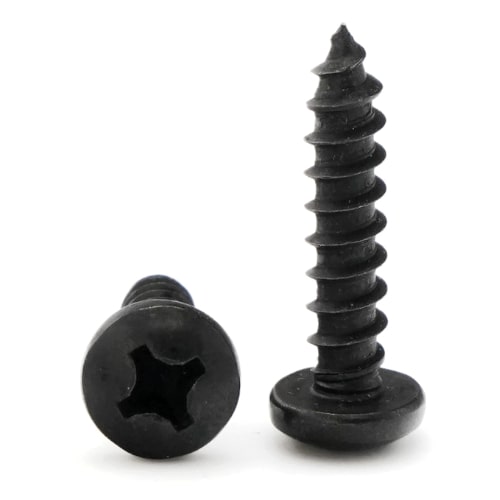

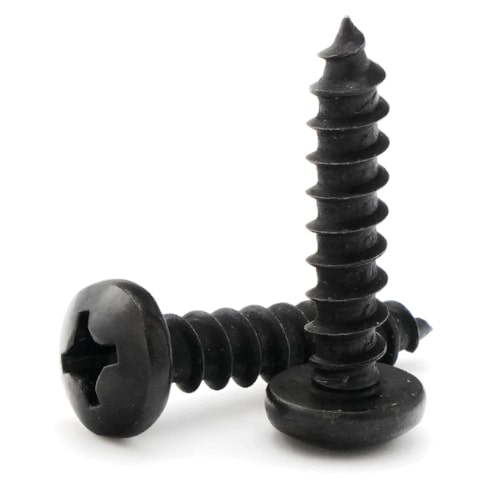

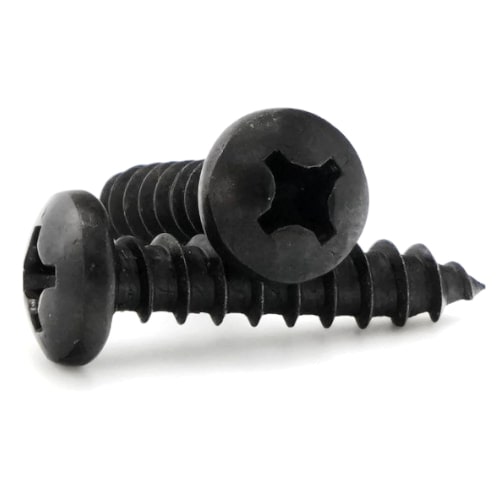

Sheet Metal Screws, Phillips Pan Head, Stainless Steel 18-8 Black Oxide, #6 x 3/8"
Diameter - Thread Pitch: #6-18
| Quantity | Unit price |
|---|---|
| To 99 |
$0.13*
|
| To 999 |
$0.08*
|
| From 1000 |
$0.07*
|
- ANSI: B18.6.4
- Color (Duplicate): Black
- Color: Black
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #6
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Pan Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Black Oxide
- Grade: 18-8
- Hardness: 100 Rockwell B
- Head Diameter: Max 0.270 - Min 0.256
- Head Style: Pan
- Length: 3/8"
- Material (Duplicate): Black Oxide Stainless Steel
- Material: Stainless Steel
- Overall Head Height: Max 0.082 - Min 0.072
- Part Number: 618930234084
- Phillips Drive: #2
- Point Type: A
- Product Type: Sheet Metal Screws
- Reduction: 0.4
- Size Type: Regular
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- Tensile PSI: 100,000 - 125,000 PSI
- Thread Diameter Major: #6 (Max 0.141 - Min 0.136)
- Thread Diameter Minor: #6 (Max 0.102 - Min 0.096)
- Thread Direction: Right Hand
- Thread Pitch: 18 Per Inch
- Thread Size: #6
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Yield PSI: 55,000 - 75,000 PSI
- #6-18
- Cut into sheet metal, plastic or wood
- Fully threaded
- Great for attaching metal to wood
- Strong retention in wood
- Also known as Self Piercing Screws or Self Tapping Screws
- Pan head - rounded top with an undercut (flat bottom) head
- Sizes listed below as: Diameter - Thread Pitch
- The Black Oxide coating of a sheet metal screw provides corrosion and abrasion resistance
- Infused with wax to comply with Class 4 Military Specifications
- Commonly used for:
- Cars
- Motorcycles
- Gun and knife builds - mostly in the handles
- Sleek black finish
Product number:
1012-100000-001
