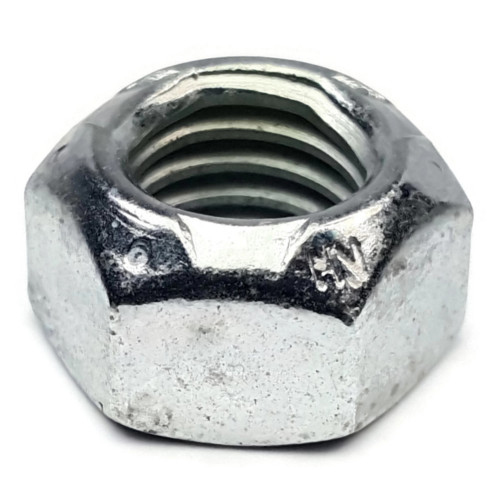

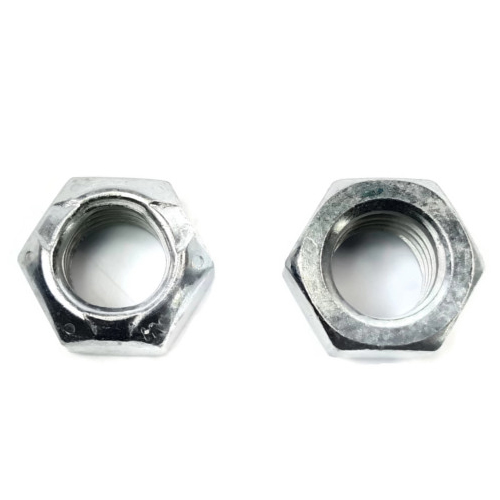

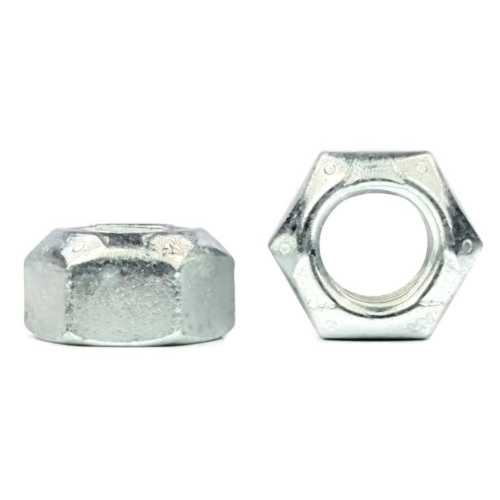

Metric Stover Lock Nuts, Zinc Plated Steel, M6 x 1.0
CR+3 Case Hardened Zinc Plated Steel Prevailing Torque Lock Nuts
| Quantity | Unit price |
|---|---|
| To 99 |
$0.40*
|
| To 999 |
$0.09*
|
| From 1000 |
$0.08*
|
- Across Flats (Width): 10mm
- Additional Sizing Info: DIN 980V-10
- Color: Silver
- Diameter: M6
- Drive Style: External Hex
- Thread Direction: Right Hand
- Finish: Zinc Plated
- Fit: 6H
- Internal Thread: M6-1.0
- Material: Steel
- Product Type: Stover Lock Nut
- Standards Met: DIN 980V-10
- System of Measurement: Metric
- Thread Direction: Right Hand
- Thread Pitch: 1.0 mm
- Thread Size: M6 x 1.0
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Rounded top with a flat bottom
- Threads near the top of the nut are intentionally imperfect to add shock and vibration resistance
- Also referred to as Crimp Nuts and Top Lock Nuts
- Stover Nuts are often used on vehicles and machinery and perhaps most commonly seen on shopping cart wheels
- CR+3 Case Hardened Zinc Plated Steel
- DIN 980V-10 Standards Specific
- Sized below as: Internal Diameter - Thread Pitch
Product number:
5602-004-002
