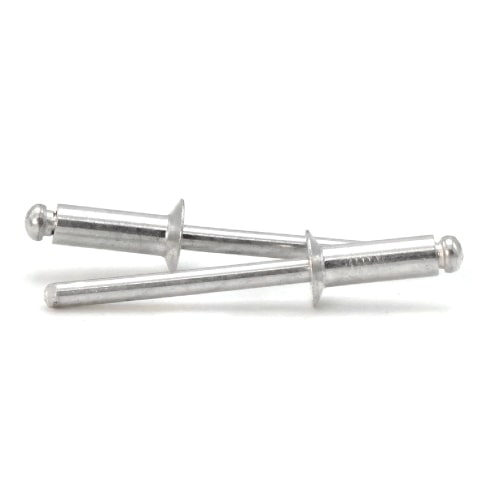

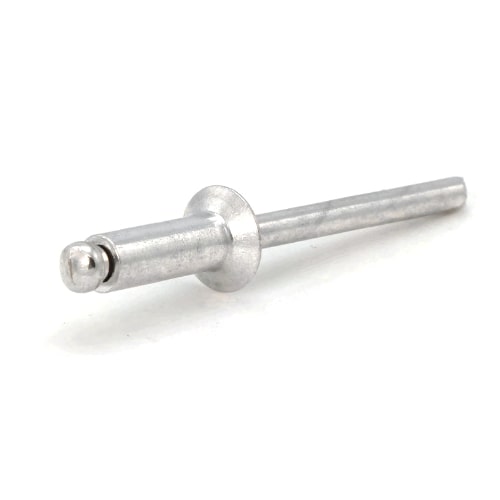

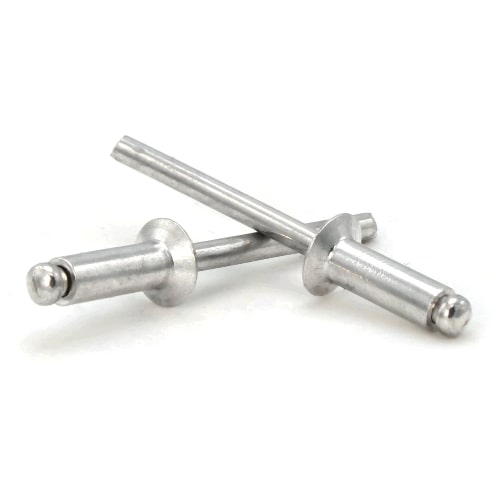

POP Rivets, Countersunk, Aluminium, 6-6C 3/16" (.251-.375 Grip)
POP Rivet, or Blind Rivet, in Aluminum
Quantity | Unit price |
---|---|
To 99 |
$0.12*
|
To 999 |
$0.08*
|
From 1000 |
$0.07*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Countersink: 120 Degree
- Diameter: 3/16"
- Drill (Hole) Size: #11
- Head Type: Flat Head (Rivet)
- Rivet Diameter Facet: #6 (3/16")
- Flange Diameter Nominal: 0.344
- Head Height Max: 0.05
- Head Style: Countersunk
- Mandrel Diameter Nominal: 0.114
- Material: Aluminum
- Nominal Size: #6
- Other: Open End
- Part Number: 720572171877
- Pilot Hole: 0.192 - 0.196
- Product Type: Home > Rivets > POP Rivets Countersunk > Aluminum
- Rivet Diameter: (#6) 3/16" (.187)
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- 3/16" or #6C (Rivet Sizing Chart)
- Used in a countersunk hole to create a flat surface
- Connect two materials quickly and efficiently
- Aluminum rivets are among the most common aluminum fasteners
- Should not be used with Stainless Steel, corrosion may occur
- Mandrel will be encased by the rivet during installation
- Comprised of a hat and mandrel
- Commonly used for:
- Sliding Tracks
- Rollers
Product number:
1816-006-0012
