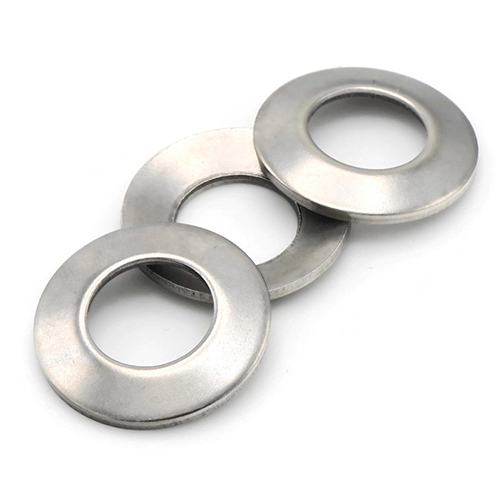

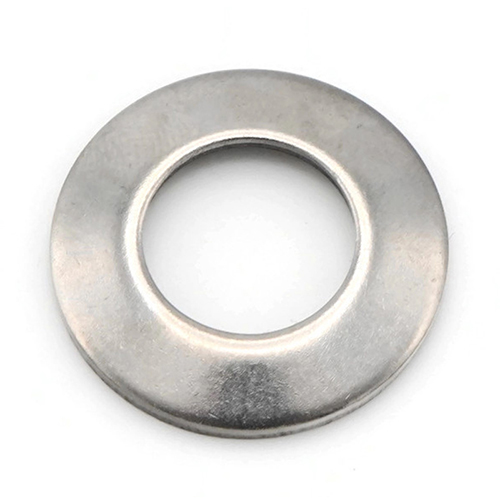

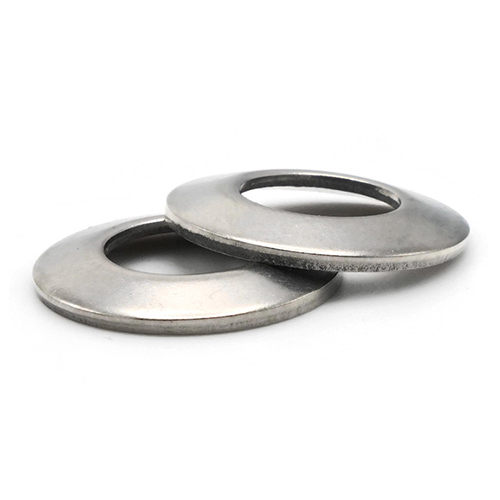

Belleville Conical Washers, Stainless Steel 18-8, #10
18-8 Stainless Steel Disc Spring Washers
| Quantity | Unit price |
|---|---|
| To 99 |
$0.20*
|
| To 999 |
$0.15*
|
| From 1000 |
$0.10*
|
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #10
- Grade: 18-8
- Material: Stainless Steel
- Outside Diameter (OD): 0.437
- Product Type: Belleville Conical Washers
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Also referred to as Belleville Washers, Disc Springs, Spring Washers, Conical Washers, Cupped Spring Washers, or Conical Spring Washers
- Used to apply a flexible pre-load to a bolted joint or bearing
- Corrosion resistant 18-8 stainless steel
- Can be used in a stack below the bolt head to apply a greater pre-load
- Variety of uses including vibration reduction and pressure indicators
- Commonly used in automotive applications, aerospace, firearms and general machinery
Conical Belleville washers are used primarily to add pre-load to a nut and bolt assembly. When placed under the head of the bolt, they add a layer of force between the bolt head and the installation surface. This serves as a resistance to vibration to prevent accidental loosening, which is why these washers are commonly found on automobiles, airplanes, and heavy machinery.
| Outer Diameter | Thickness | Height | |
| #6 | .312 | .016 | .032 |
| #8 | .375 | .025 | .048 |
| #10 | .437 | .025 | .048 |
| 1/4" | .500 | .030 | .062 |
| 5/16" | .625 | .040 | .078 |
| 3/8" | .750 | .050 | .100 |
| 1/2" | 1.00 | .062 | .125 |
| 5/8" | 1.25 | .078 | .156 |
| 3/4" | 1.50 | .078 | .156 |
Product number:
111202-022
