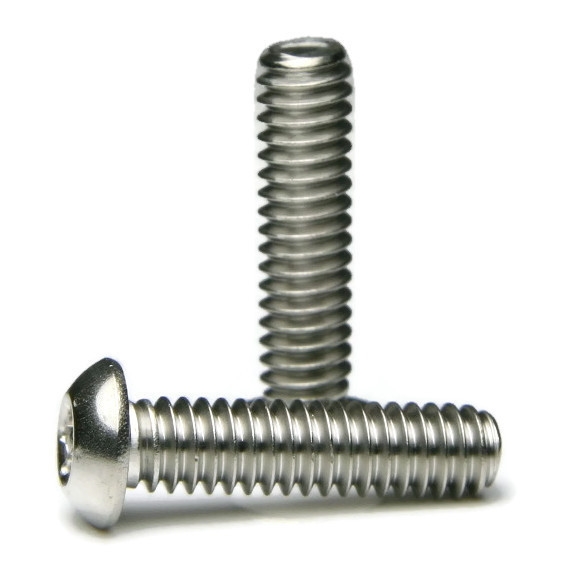

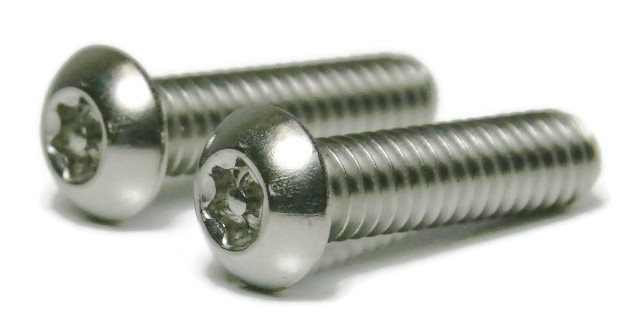

Tamper Proof Machine Screws, Star Pin-In Button Head, Stainless Steel 18-8, (T-27) 1/4"-20 x 1/2
Diameter - Thread Pitch: 1/4"-20
| Quantity | Unit price |
|---|---|
| To 99 |
$0.50*
|
| To 999 |
$0.42*
|
| From 1000 |
$0.34*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/4"
- Drive Style: Star (with Pin)
- Head Type: Button Head
- Tamper Proof: Yes
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 18-8
- Head Height Max: 0.129
- Head Diameter: Max 0.424 - Min 0.422
- Head Style: Button
- Length: 1/2
- Material: Stainless Steel
- Overall Head Height: Max 0.129 - Min 0.127
- Part Number: 618930281422
- Product Type: Tamper Proof Machine Screws
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Star TP Drive: T-27
- Weight: 1 lb
- Tamper Proof Star Drive Size - T-27
- Torx styled Star (with pin) drive add security to machine screws by using an uncommon drive
- A machine screw is commonly identified by its small size
- Less likely to strip than Phillips when installed correctly
- Primarily for metal to metal applications
- 18-8 Stainless steel is the fastener industry standard adding rust and corrosion resistance to an assembly
1/4-20 Star with pin button head security machine screws are available in grade 18-8 stainless steel.
