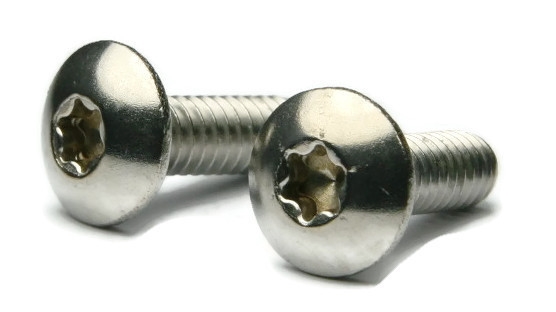

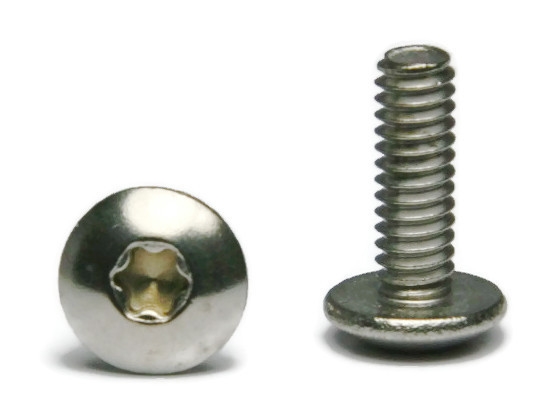

Machine Screws, Star Drive Truss Head, 6-Lobe Torx, Stainless Steel 18-8, #10-32 x 1/4"
Diameter - Thread Pitch: #10-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.26*
|
| To 999 |
$0.19*
|
| From 1000 |
$0.17*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Star
- Elongation: 30%
- Head Type: Truss Head
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 2A
- Grade: 18-8
- Head Diameter: Max 0.488 - Min 0.425
- Head Style: Truss
- Length: 1/4"
- Material: Stainless Steel
- Overall Head Height: Max 0.118 - Min 0.103 (From Bottom of Undercut to Top of Head)
- Part Number: 787392592800
- Product Type: Machine Screws
- Size: #10-32 x 1/4"
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Diameter: (#10) Max 0.1890 - Min 0.1818
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

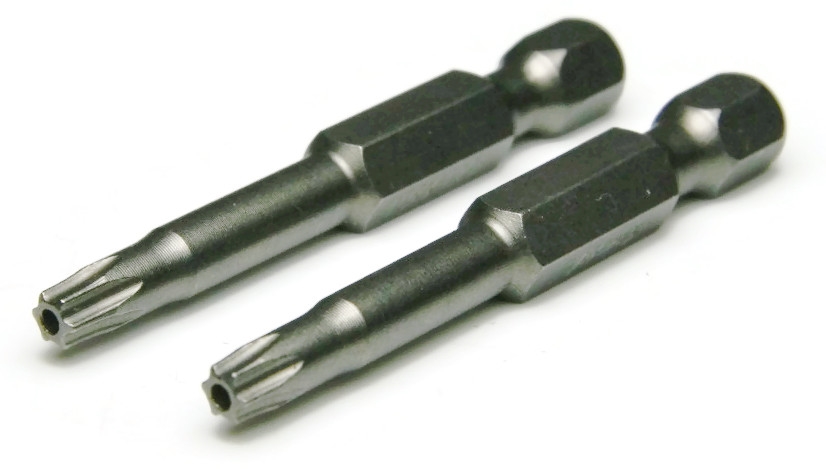

- Star Drive: T-25
- Weight: 1 lb
- The star drive is designed to lower the chance of stripping than a Phillips drive during a proper installation
- Allows more torque to be applied to a screw without risk or stripping
- Truss heads are used to distribute surface pressure of the screw and may help prevent accidental loosening of the screw
- Rust and corrosion resistant
- Fastener industry standard material
- Suitable for freshwater moisture environments
#10-32 Star drive truss head machine screws are available in grade 18-8 stainless steel.
Note: Unless noted as (T-20), Star drive screws in this selection will feature a T-25 drive
