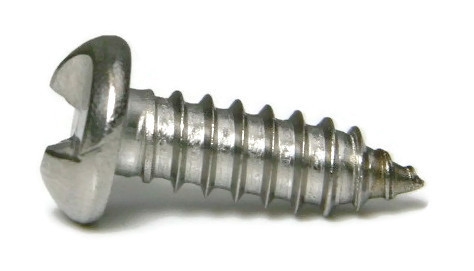

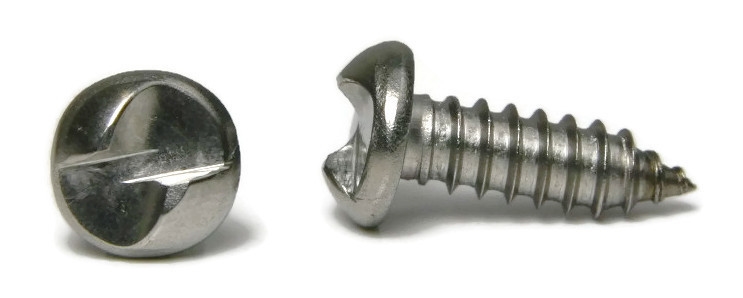

Tamper Proof Sheet Metal Screws, One Way Round Head, Stainless Steel 18-8, #10 x 1/2"
Diameter: #10
| Quantity | Unit price |
|---|---|
| To 99 |
$0.26*
|
| To 999 |
$0.18*
|
| From 1000 |
$0.16*
|
- asme: B18.6.1
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: One Way
- Elongation: 10% - 25%
- Head Type: Round Head
- Tamper Proof: Yes
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 18-8
- Head Diameter: Max 0.359 - Min 0.334
- Head Style: Round
- Length: 1/2"
- Material: Stainless Steel
- Overall Head Height: Max 0.137 - Min
- Part Number: 787392587752
- Product Type: Tamper Proof Sheet Metal Screws
- Size System: US
- Size Type: Regular
- Standards Met: ASME B18.6.1
- System of Measurement: Inch
- Thread Diameter Major: (#10) Max 0.194 - Min 0.188
- Thread Diameter Minor: (#10) Max 0.133 - Min 0.126
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: #10-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- #10
- Used to prevent tampering
- Its one way drive style makes these screws particularly hard to remove
- Sharp point for cutting into wood, plastic and sheet metal
- Commonly used for:
- Bathroom Partitions
- Wall or Floor Mounted Safes
- Anywhere tampering after installation becomes a security issue
- One way round head sheet metal screws are extremely difficult to remove making them best for long lasting applications
- 18-8 Stainless steel is corrosion and rust resistant
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Product number:
6208-004-0002
