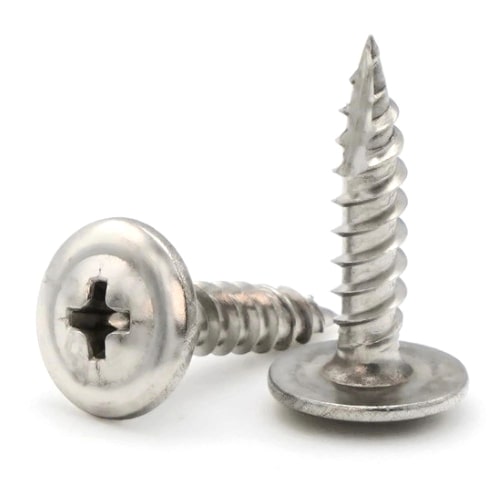

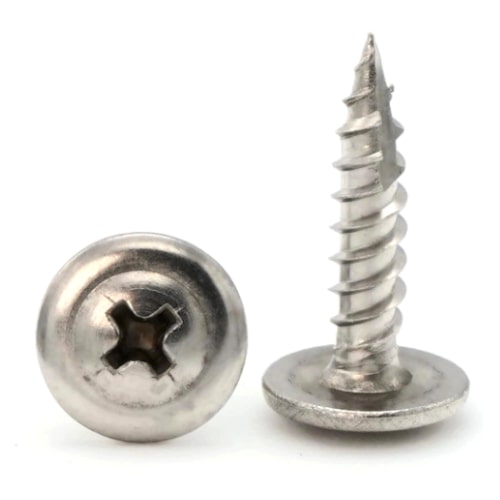

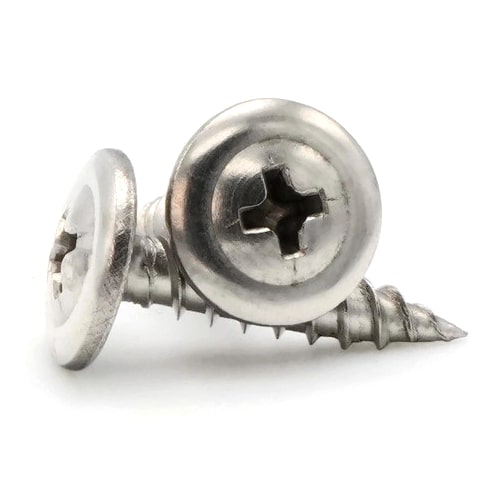

Sheet Metal Screws, Phillips Modified Truss Head, Lath Screws, Stainless Steel 305, #8 x 3/4"
Diameter: #8
| Quantity | Unit price |
|---|---|
| To 99 |
$0.25*
|
| To 999 |
$0.17*
|
| From 1000 |
$0.16*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #8
- Drive Style: Phillips
- Edge Height: Max 0.055 - Min
- Elongation: 30%
- Head Type: Modified Truss Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 305
- Head Diameter: Max 0.446 - Min
- Head Style: Modified Truss
- Length: 3/4"
- Material: Stainless Steel
- Part Number: 787392589657
- Phillips Drive: #2
- Point Type: 17
- Product Type: Home > Sheet Metal Screws > Phillips Modified Truss Head > 305 Stainless Steel
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Diameter Major: #8 (Max 0.165 - Min
- Thread Diameter Minor: #8 (Max 0.112 - Min
- Thread Direction: Right Hand
- Thread Pitch: 18 Per Inch
- Thread Size: #8-18
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Truss Height: Max 0.098 - Min
- Weight: 1 lb
- #8
- Type 17 point
- Modified Truss head
- Rounded head with flange to prevent pull-though
- Flange distributes pressure across a larger surface area
- 305 Stainless steel truss head lath screws are corrosion resistant
- Suitable for fresh water moisture environments
- Most commonly used for:
- Sheet Metal
- Wood
- Plastic
- Sizes listed below as: Diameter x Length
Product number:
62108-006-0002
