Tamper Proof Shear Breakaway Nuts, Stainless Steel 304, 1/4"-20
Tamper Proof Shear Nuts in 304 Stainless Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$1.64*
|
| To 999 |
$1.44*
|
| From 1000 |
$1.24*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/4"
- Drive Style: External Hex
- Elongation: % in 2in - 40
- Tamper Proof: Yes
- Thread Direction: Right Hand
- Fit: 2B
- Grade: 304
- Hardness: Max. Brinell - 201
- Internal Thread: 1/4/2020
- Material (Duplicate): 304 Stainless Steel
- Material: Stainless Steel
- Part Number: 787392623528
- Pattern: Tamper Proof Shear Nuts
- Product Type: Tamper-Proof Breakaway Nut
- Size: 1/4"-20
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tensile PSI: 75000
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Yield PSI: 30000

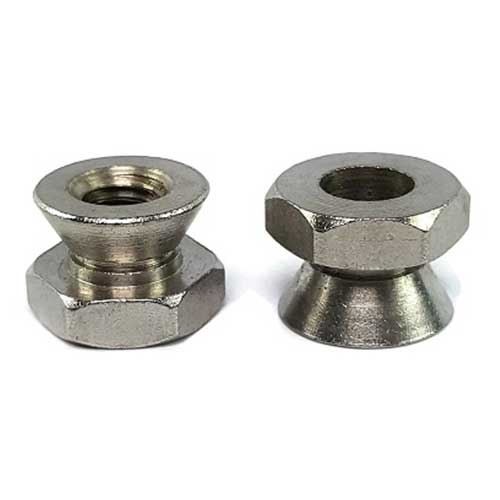

- Also referred to as a Break Away Nut or Shear Nut
- Tapered outer diameter
- Makes gripping the nut very difficult after installed
- Installed using a standard wrench or socket

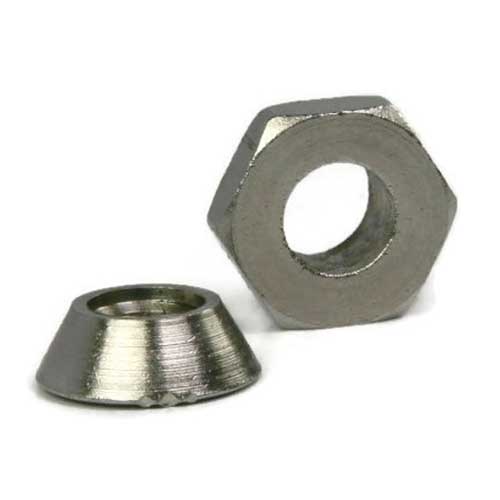

- Once maximum torque is reached, the hex portion snaps off the installed portion
- Leaves only a coned nut behind
- Corrosion resistant 304 stainless steel
304 Stainless Steel Break-Away Nut Specifications
| Nut Sizes | Hex Drive | Torque Guide | Bottom Diameter (Max) | Pre-Installed Height | Nut Height |
| 1/4"-20 | 9/16" | 67-98 inch/lbs | 0.5625" | 0.470" | 0.22" |
| 5/16"-18 | 5/8" | 106-133 inch/lbs | 0.6250" | 0.500" | 0.22" |
| 3/8"-16 | 3/4" | 230-248 inch/lbs | 0.7500" | 0.580" | 0.25" |
| 1/2"-13 | 1" | 372-407 inch/lbs | 1.0000" | 0.750" | 0.35" |
| 5/8"-11 | 1-1/8" | 460-513 inch/lbs | 1.1250" | 0.800" | 0.37" |
Product number:
6208-022-0002
