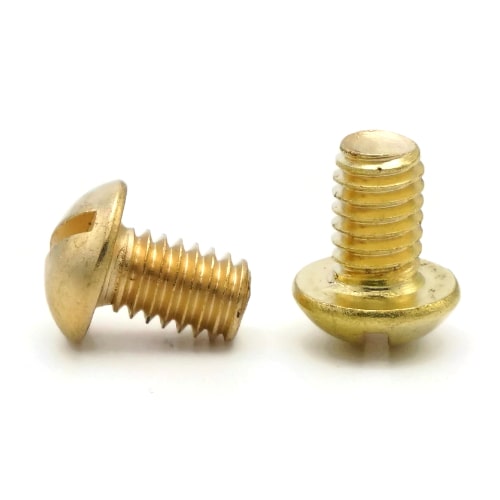

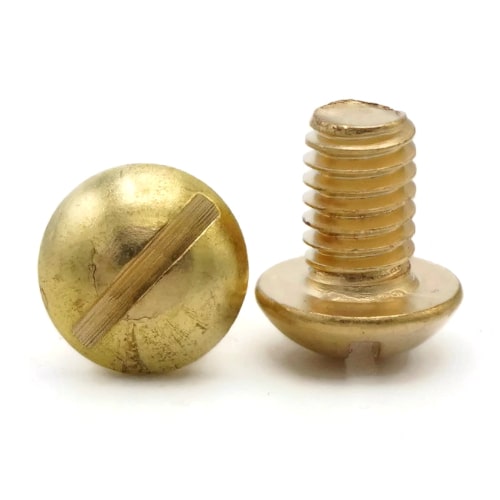

Machine Screws, Slotted Round Head, Brass, #4-40 x 3/16"
Diameter - Thread Pitch: #4-40
| Quantity | Unit price |
|---|---|
| To 99 |
$0.09*
|
| To 999 |
$0.06*
|
| From 1000 |
$0.05*
|
- ANSI: B18.6.3
- Color: Yellow
- Color May Vary: Color and sheen may vary
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #4
- Drive Style: Slotted
- Elongation: 10% - 25%
- Head Type: Round Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Hardness: 40-75 Rockwell B
- Head Diameter: Max 0.211 - Min 0.193
- Head Style: Round
- Length: 3/16"
- Material: Brass
- Overall Head Height: Max 0.086 - Min 0.075
- Part Number: 710500875700
- Product Type: Machine Screw
- Size System: US
- Size Type: Regular
- Standards Met: ASME, ANSI B18.6.3
- System of Measurement: Inch
- Tensile PSI: 50,000 - 65,000 PSI
- Thread Direction: Right Hand
- Thread Pitch: 40 Per Inch
- Thread Size: #4-40
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Yield PSI: 30,000 - 50,000 PSI
- Slotted drive style designed to be driven by a flat head or slotted screwdriver or bit
- ASME standards specific
- Used with a tapped hole or nut
- Conducts electricity and heat
- A machine screw is commonly identified by its small size
- Brass is an alloy made of copper and zinc
- Color can vary from dark to light based upon the zinc content
- Prized for its corrosion resistance but is a very soft metal
- Commonly used for:
- Pipes
- Weather Stripping
- Trim
- Radiators
- Musical Instruments
- Firearms
#4-40 Slotted round head machine screws are available in corrosion resistant brass.
NOTE: Color and sheen may vary
Product number:
1019-10002-0012
