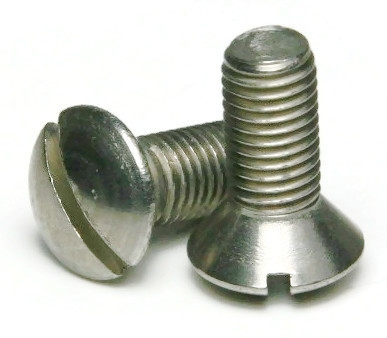

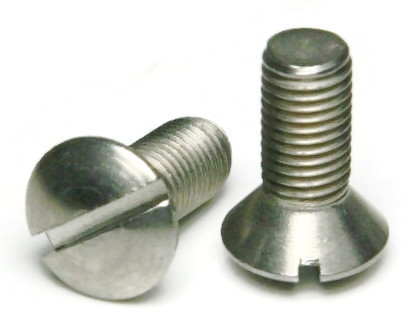

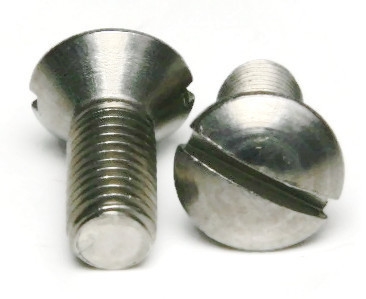

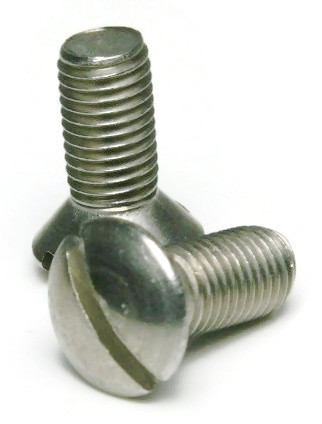

Machine Screws, Slotted Oval Head, Stainless Steel, 5/16"-24 x 3/4"
Diameter - Thread Pitch: 5/16"-24
| Quantity | Unit price |
|---|---|
| To 99 |
$1.34*
|
| To 999 |
$1.31*
|
| From 1000 |
$1.28*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Countersink: 82 Degree
- Diameter: 5/16"
- Drive Style: Slotted
- Elongation: 30%
- Head Type: Oval Head
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 2A
- Grade: 18-8
- Head Diameter: Max 0.597 - Min 0.556
- Head Style: Oval
- Length: 3/4"
- Material: Stainless Steel
- Overall Head Height: Max 0.290 - Min 0.249???
- Part Number: 720572168549
- Product Type: Machine Screws
- Size Type: Regular
- System of Measurement: Inch
- Thread Diameter: (5/16") Max 0.3113 - Min 0.3026
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: 5/16"-24
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Raised decorative head
- Countersunk bottom and rounded top
- A machine screw is commonly identified by its small size
- Slotted head for slotted or flat head drive
- Corrosion and rust resistant
- Fastener industry standard material making the screw more durable
- Suitable for freshwater environments
5/16"-24 Slotted drive oval head machine screws are available in grade 18-8 stainless steel.
Product number:
5200-018-0002
