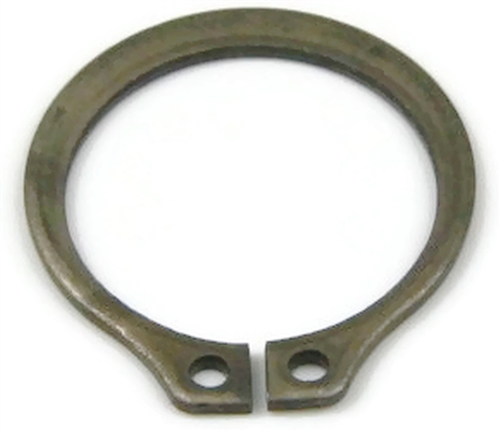

SH-300SS 3" External Retaining Ring, Stainless Steel
Fits Shaft Diameter: 3"
| Quantity | Unit price |
|---|---|
| To 99 |
$27.16*
|
| To 999 |
$22.07*
|
| From 1000 |
$20.37*
|
- Brand: Rotor Clip
- Additional Sizing Info: Diameter, Width, Depth, and Free Diameter refer to Groove Size
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Depth: 0.081"
- Diameter: 2.838"
- Finish: Phosphate
- Fits Shaft Diameter: (3.00", 3", 76.2mm)
- Free Diameter: 2.775"
- Grade: 15-7
- Manufacturer Part Number: SH-300SS
- Material: Carbon Steel
- Part Number: 661291579578
- Product Type: Retaining Rings
- Size System: US
- Size Type: Regular
- System of Measurement: Inch/Millimeter
- Thickness: 0.093"
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Width: 0.103"
- Commonly referred to as a retaining ring, snap ring, or c-clip
- A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
- Axially Installed
- Made of corrosion resistant stainless steel
- Passivated Finish
USA MADE
Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic
Product number:
819120-0002
