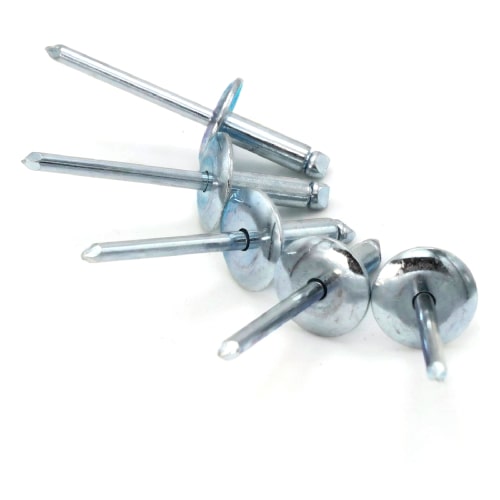

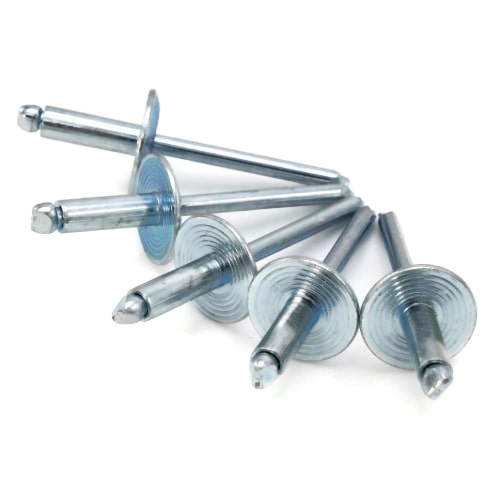

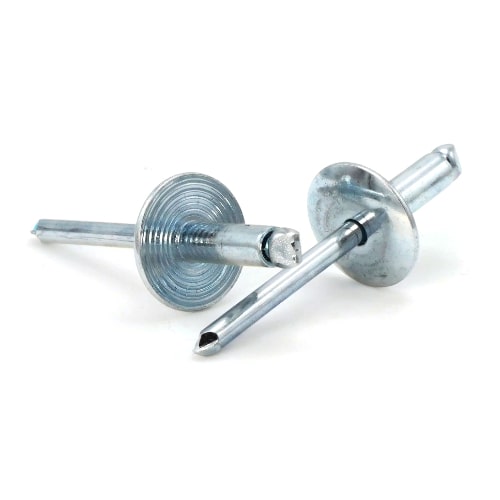

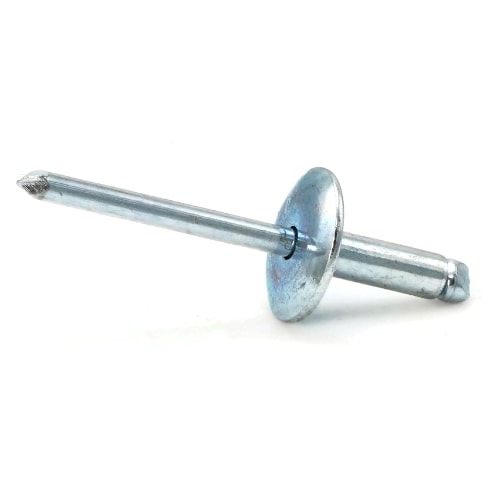

POP Rivets, Large Flange, Dome Head Open End, All Steel, 4-4LF 1/8" (.188 - .250 Grip)
POP Rivet, or Blind Rivet, in Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.07*
|
| To 999 |
$0.05*
|
| From 1000 |
$0.04*
|
- Color: Silver
- Condition: New
- Diameter: 1/8"
- Drill (Hole) Size: #30
- Head Type: Dome Head (Rivet)
- Rivet Diameter Facet: #4 (1/8")
- Finish: Zinc Plated
- Flange Diameter Nominal: 0.375
- Head Height Max: 0.065
- Head Style: Dome
- Mandrel Diameter Nominal: 0.076
- Material: Steel
- Nominal Size: #4
- Other: Open End, Large Flange
- Part Number: 720572169461
- Pilot Hole: 0.129 - 0.133
- Product Type: Large Flange Blind Rivets
- Rivet Diameter: (#4) 1/8" (.125)
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- 1/8" or #4LF (Rivet Sizing Chart)
- SBS Steel
- Large flange rivets are used when there is no access to the blind side of the two materials
- Larger washer distributes pressure over a greater surface area
- Used to join two materials together quickly
- After mandrel breaks off domed head is left exposed
- Commonly used to prevent damage to soft materials and deter pull-through
