Keps K Lock Nuts, Stainless Steel A2 (18-8), (M3 x 0.5)
Metric Sized Keps K Lock Hex Nuts in A2 Stainless Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.09*
|
| To 999 |
$0.06*
|
| From 1000 |
$0.05*
|
- Across Flats (Width): 5.5mm
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: M3
- Drive Style: External Hex
- Thread Direction: Right Hand
- Fit: 6H
- Grade: A2
- Internal Thread: M3-0.5
- Material (Duplicate): A2 Stainless Steel
- Material: Stainless Steel
- Part Number: 046737874255
- Pattern: Keps K Lock Nuts Metric
- Product Type: Keps K Lock Nut
- Size: 3MM
- Size System: US
- Size Type: Regular
- System of Measurement: Metric
- Thread Direction: Right Hand
- Thread Pitch: 0.5 mm
- Thread Size: M3 x 0.5
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Video Embed Code: KUYss0oSDrQ
- Video Thumbnail Image: graphics/00000001/keps-k-lock-nuts-product-video-thumbnail.jpg
- Weight: 1 lb

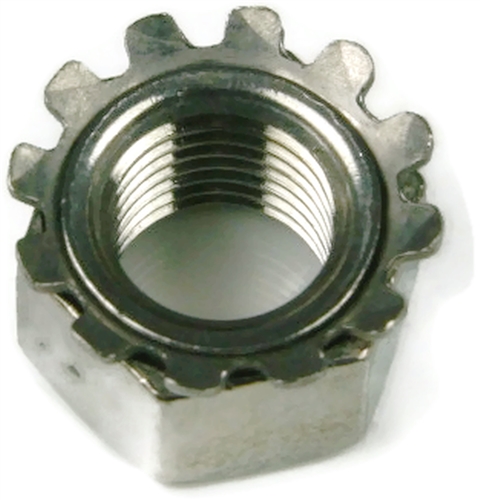

- Metric nut with connected free spinning washer
- Make assembly faster, easier and more secure
- Teeth on washer dig into the material the nut is fastened to
- Harder to loosen due to vibration or movement
- Also known as a Keps Nut, K Lock Nut, Keps K Lock Nut, or a K Lock Hex Nut
| Nut Size | Width Across Flats | Overall Thickness | Washer Diameter |
| M3 | 5.5mm | 2.85mm | 6.3mm |
| M4 | 7mm | 3.65mm | 8mm |
| M5 | 8mm | 4.6mm | 9.2mm |
| M6 | 10mm | 5.6mm | 11mm |
| M8 | 13mm | 7.3mm | 14.9mm |
| M10 | 17mm | 8.9mm | 19mm |
Product number:
5621000-0002
