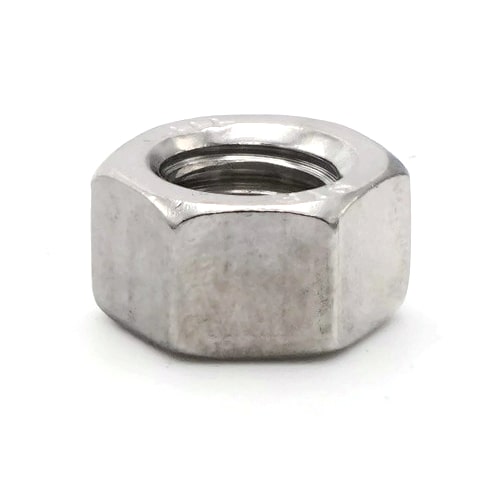

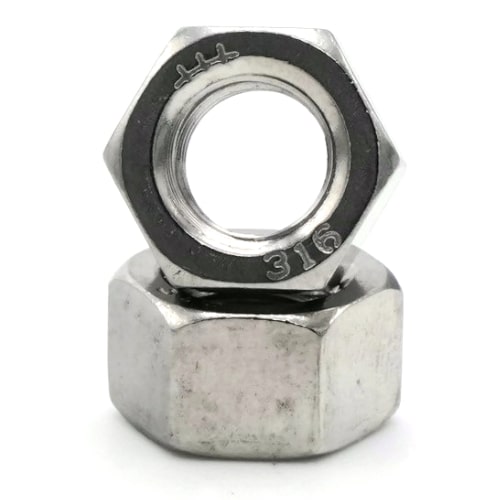

Hex Finish Nuts, Stainless Steel 316, 1/4"-20 (7/16" Flats x 7/32" Thick)
Finish Nuts in 316 Stainless Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.12*
|
| To 999 |
$0.06*
|
| From 1000 |
$0.05*
|
- Across Flats (Width): 7/16"
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/4"
- Drive Style: External Hex
- Thread Direction: Right Hand
- Fit: 2B
- Grade: 316
- Internal Thread: 1/4/2020
- Marine Grade: Yes
- Material: Stainless Steel
- Part Number: 717029165589
- Product Type: Hex Finish Nut
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Standard Hex Finish Nut
- Hexagonal Shape Hex Nuts
- Smallest Size: 1/4"-20
- Largest Size: 1-1/4"
- Available: fine or coarse
- Marine Grade
| Nut Sizes | Flats | Thickness |
| 1/4" | 7/16" | 7/32" |
| 5/16" | 1/2" | 17/64" |
| 3/8" | 9/16" | 21/64" |
| 7/16" | 11/16" | 3/8" |
| 1/2" | 3/4" | 7/16" |
| 9/16" | 7/8" | 31/64" |
| 5/8" | 15/16" | 35/64" |
| 3/4" | 1-1/8" | 41/64" |
| 7/8" | 1-5/16" | 3/4" |
| 1" | 1-1/2" | 55/64" |
| 1-1/4" | 1-7/8" | 1-1/16" |
Product number:
10900002
