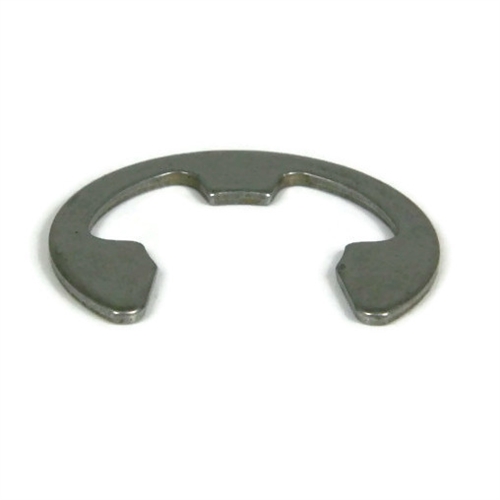

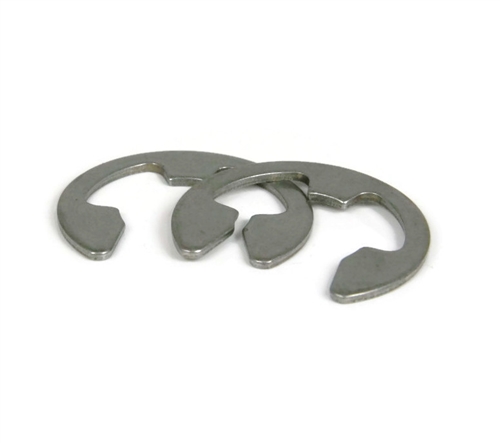

E-87SS 7/8" External Retaining Ring, Stainless Steel
Fits Shaft Diameter: 7/8"
| Quantity | Unit price |
|---|---|
| To 99 |
$1.28*
|
| To 999 |
$1.01*
|
| From 1000 |
$0.96*
|
- Brand: Rotor Clip
- Additional Sizing Info: Diameter, Width, Depth, and Free Diameter refer to Groove Size
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Depth: 1.000"
- Diameter: 0.675"
- Finish: Passivated
- Fits Shaft Diameter: (0.875", 7/8", 22.2mm)
- Free Diameter: 0.668"
- Grade: 15-7
- Manufacturer Part Number: E-87SS
- Material: Stainless Steel
- Part Number: 661291582189
- Product Type: Retaining Rings
- Size System: US
- Size Type: Regular
- System of Measurement: Inch/Millimeter
- Thickness: 0.050"
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Width: 0.056"
- Commonly referred to as a retaining ring, snap ring, or c-clip
- Called "E" rings because of the three prongs on the inside of the ring
- Make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic
USA MADE FASTENER
Product number:
816094-0002
