Socket Cap Screws, Button Head, Stainless Steel 18-8, 3/8"-24 x 7/8"
Screw Diameter - Thread Pitch: 3/8"-24
| Quantity | Unit price |
|---|---|
| To 99 |
$1.08*
|
| To 999 |
$1.00*
|
| From 1000 |
$0.99*
|
- ANSI: B1.1
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 3/8"
- Drive Style: Internal Hex (Allen)
- Head Type: Button Head
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 3A
- FT = Full Thread: Yes
- Grade: 18-8
- Head Height Max: 0.199
- Head Diameter: Max 0.656 - Min 0.636
- Head Style: Button
- Hex Drive: 7/32"
- Length: 7/8"
- Material (Duplicate): Stainless Steel
- Material: Stainless Steel
- Overall Head Height: Max 0.199 - Min 0.185
- Part Number: 710500895241
- Pattern: Button Head Socket Cap Screw
- Product Type: Socket Cap Screws
- Size System: US
- Size Type: Regular
- Standards Met: ANSI B1.1
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: 3/8"-24
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

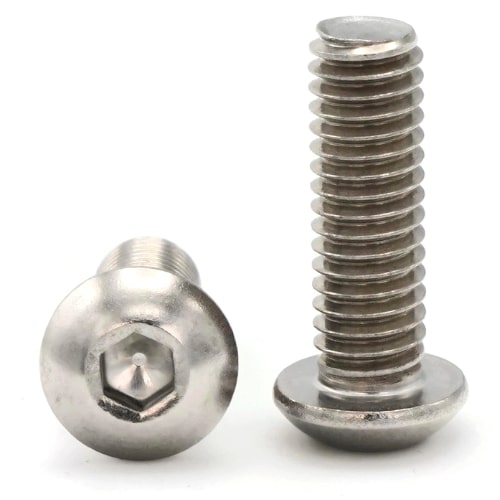

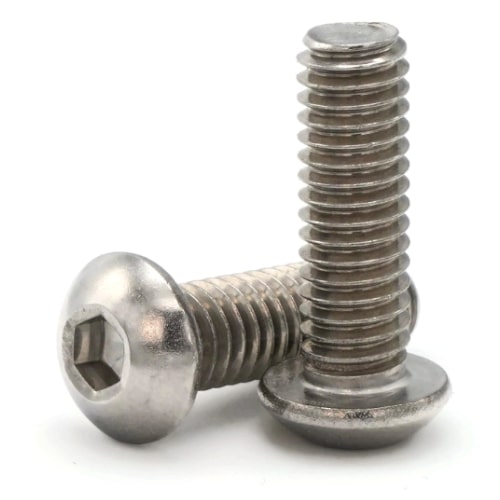

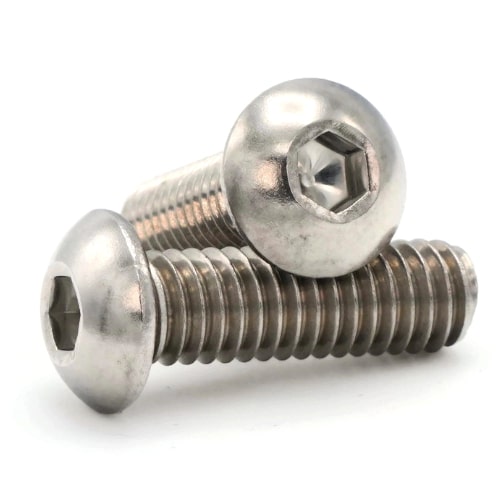

3/8"-24 Button Head Socket Cap Screws are bolts or machine screws with a Hex or Allen drive style.
- Commonly referred to as allen bolts, button heads, or socket head screws
- Cylindrical head and hexagonal drive hole
- Protrudes above the installation surface
- Clean and unstamped domed head with a flat bottom
- Head diameter is nominally 1.5 times or more that of the screw shank (major) diameter
- 304 Stainless steel is corrosion and rust resistant
- Suitable for fresh water moisture situations
Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head
