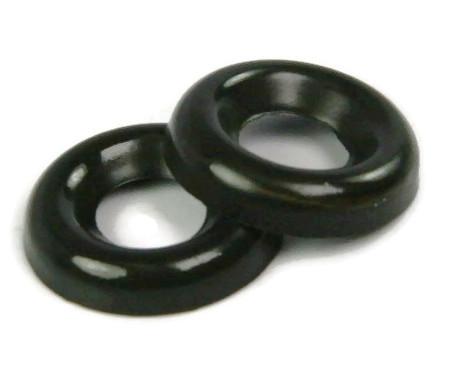

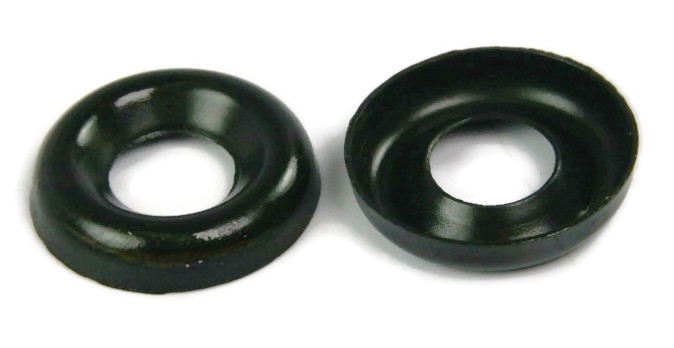

Finishing Cup Washers, Black Oxide Stainless Steel 18-8, #4
Black Oxide Stainless Steel Cup Washers
| Quantity | Unit price |
|---|---|
| To 99 |
$0.08*
|
| To 999 |
$0.07*
|
| From 1000 |
$0.06*
|
- Color (Duplicate): Black
- Color: Black
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #4
- Finish: Black Oxide
- Grade: 18-8
- Material (Duplicate): Black Oxide 18-8 Stainless Steel
- Material: Stainless Steel
- Outside Diameter (OD): .379"
- Part Number: 787392623825
- Pattern: Finishing Cup Washer
- Product Type: Finishing Cup Washer
- Size: #4
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Provide a finished, smooth and professional look
- Fastener head sits flush with the black oxide stainless steel finishing cup washer
- Primarily used for their look
- Can help distribute fastener pressure across a material
- Black oxide finish gives fasteners a sleek look while adding a layer of protection from abrasion
- Actual measurements may vary slightly +/- depending on production run
Black Oxide Finishing Cup Washer Specifications
| Washer Sizes | Inner Diameter (ID) | Outer Diameter (OD) | Washer Thickness |
| #4 | 0.159" | 0.379" | 0.082" |
| #6 | 0.176" | 0.434" | 0.087" |
| #8 | 0.205" | 0.538" | 0.104" |
| #10 | 0.251" | 0.603" | 0.102" |
| #12 | 0.265" | 0.682" | 0.134" |
| #14 (1/4") | 0.316" | 0.791" | 0.157" |
Product number:
12330-0002
