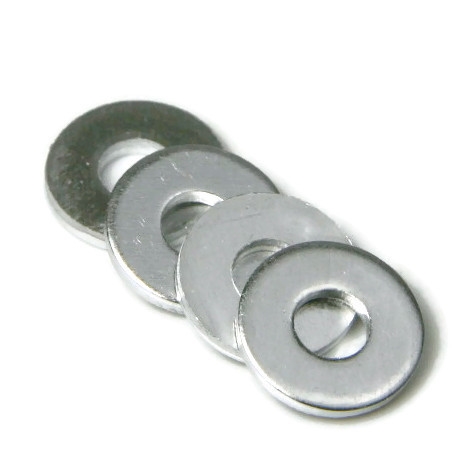

Rivet Backup Washers, Aluminum, 5/32" (ID.165, OD.437, TK.062)
Aluminum Alloy
| Quantity | Unit price |
|---|---|
| To 99 |
$0.06*
|
| To 999 |
$0.05*
|
| From 1000 |
$0.04*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Diameter: 5/32"
- Rivet Diameter Facet: #4 (1/8")
- Material (Duplicate): Aluminum
- Material: Aluminum
- Outside Diameter (OD): .437MM
- Part Number: 787392584676
- Pattern: Blind Rivet Back Up Washer
- Product Type: Rivet Backup Washer
- Size: 5/32" (#5)
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Typically used in soft metals
- Create a larger diameter of pressure during fastener installation
- The larger diameter helps to spead our pressure over the material preventing pull through
- Always use the same material for rivet and backup washer
- Actual measurements may vary slightly +/- depending on production run
Aluminum Rivet Backup Washer Size Chart
Washer Size
Rivet Diameter
(Callout)
Rivet Diameter
(Inch)
1/8"
4
1/8"
5/32"
5
5/32"
3/16"
6
3/16"
1/4"
8
1/4"
Aluminum Rivet Backup Washer Specifications
Washer Sizes
Inner Diameter (ID)
Outer Diameter (OD)
Washer Thickness
1/8"
Max 0.136" - Min 0.132"
0.375"
0.062"
5/32"
Max 0.167" - Min 0.163"
0.437"
0.062"
3/16"
Max 0.199" - Min 0.195"
0.500"
0.062"
1/4"
Max 0.264" - Min 0.260"
0.562"
0.062"
Product number:
1836-002-0012
