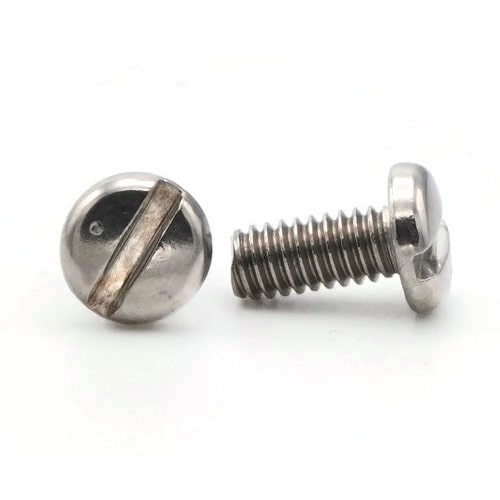

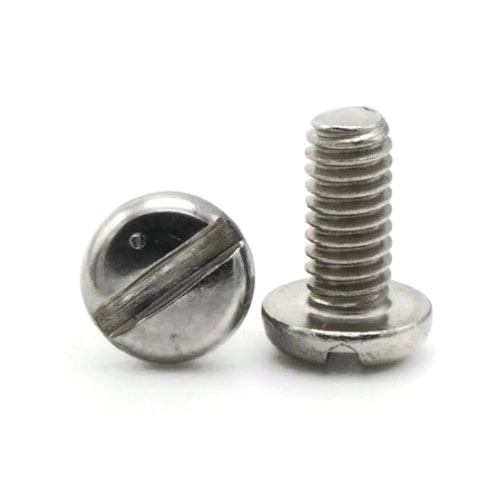

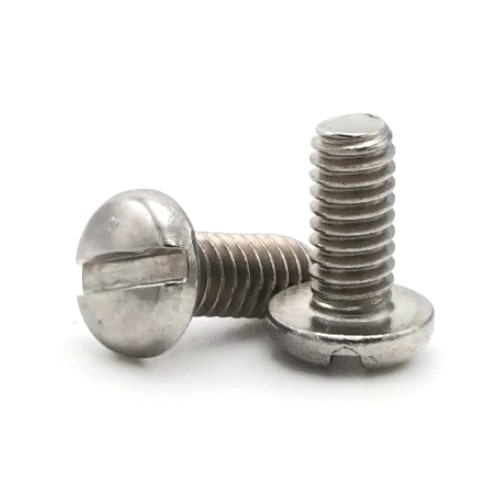

Machine Screws, Slotted Pan Head, Stainless Steel 316, #6-32 x 3/8"
Diameter - Thread Pitch: #6-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.40*
|
| To 999 |
$0.33*
|
| From 1000 |
$0.30*
|
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #6
- Drive Style: Slotted
- Head Type: Pan Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 316
- Head Diameter: Max 0.270 - Min 0.256
- Head Style: Flat
- Length: 3/8"
- Marine Grade: Yes
- Material: Stainless Steel
- Overall Head Height: Max 0.085 - Min 0.072
- Product Type: Machine Screws
- Standards Met: ANSI B18.6.3, ANSI B1.1
- System of Measurement: Inch
- Thread Diameter: #6 (Max 0.1372 - Min 0.1312)
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #6-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- A machine screw is commonly identified by its small size
- Slotted head designed to be driven by a slotted or pan head driver
- ASME Standards Specific
- 316 stainless steel slotted pan head machine screws are corrosion and rust resistant
- 316 stainless steel are considered the industry standard for harsh environments including applications exposed to salt water or saltwater moisture
#6-32 Slotted pan head machine screws are available in marine grade 316 stainless steel.
Product number:
5100-002-002
