Plow Bolts, Flat Head, Plain Steel, Grade 5, 3/8"-16 x 2"
Diameter - Thread Pitch: 3/8"-16
| Quantity | Unit price |
|---|---|
| To 99 |
$0.39*
|
| To 999 |
$0.31*
|
| From 1000 |
$0.25*
|
- Color: Black
- Diameter: 3/8"
- Head Type: Flat Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Plain
- Fit: 2A
- Grade: 5
- Head Height: Max 0.312 - Min 0.281
- Head Diameter: Max 0.708 - Min 0.671
- Head Style: Flat
- Length: 2"
- Material: Steel
- Product Type: Plow Bolt
- Square Neck Width: Max 0.387 - Min 0.375
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: 3/8"-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Square section grips into the part being fixed
- Preventing the bolt from turning when the nut is tightened
- Commonly used in heavy duty equipment to provide a smooth head surface
- Known for attaching the cutting edge of a plow to the plow blade, such as on a snowplow, grader, or bulldozer

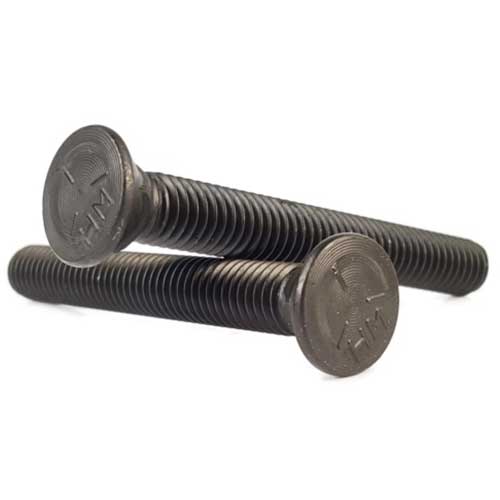

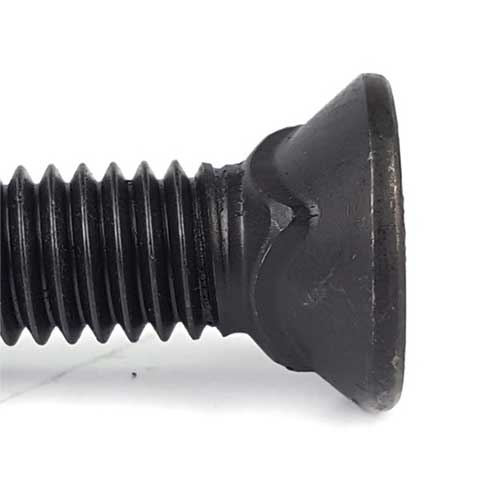

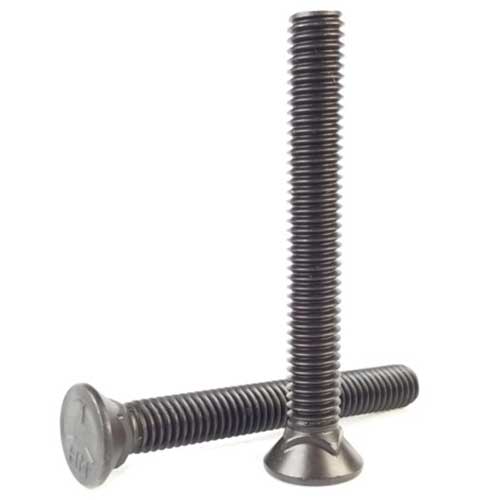

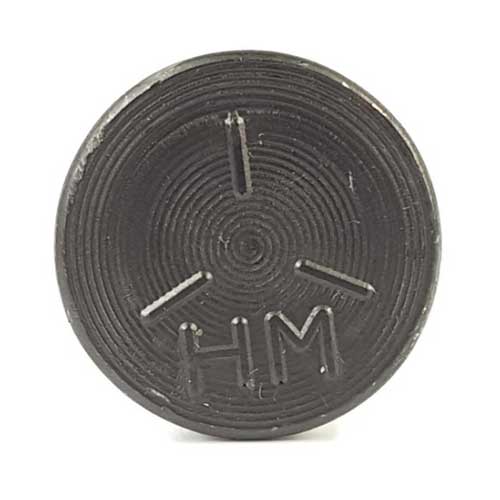

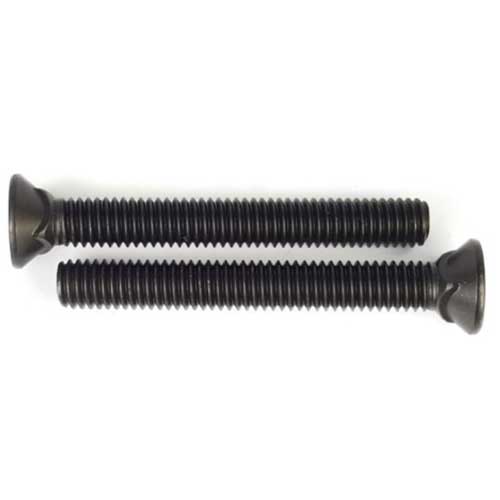

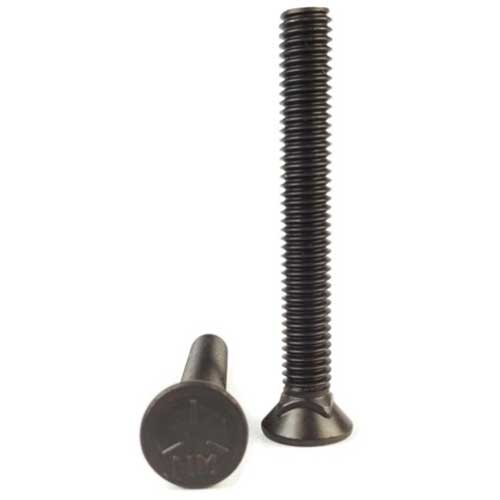

3/8"-16 Plain steel plow bolts have a non-protruding #3 flat head and the shank is topped by a short countersunk square section under the head.
Product number:
2082-002-0022
