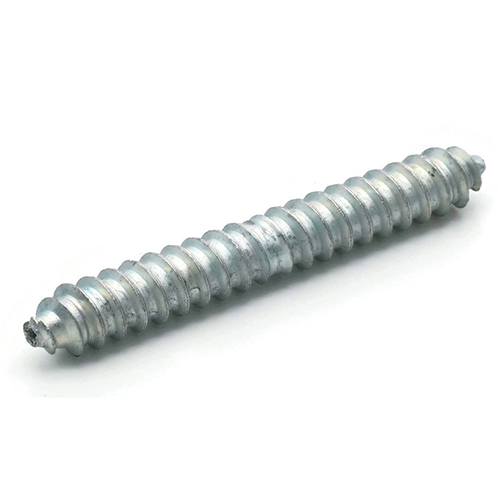

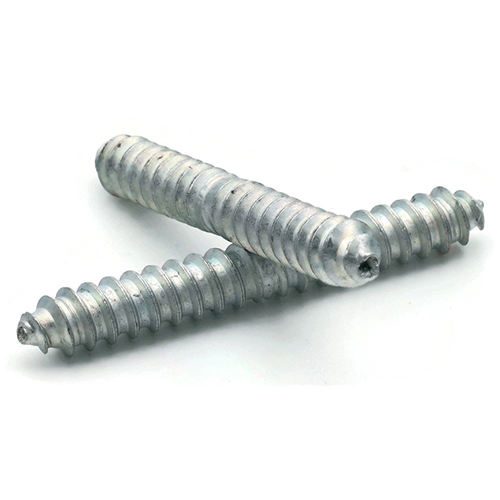

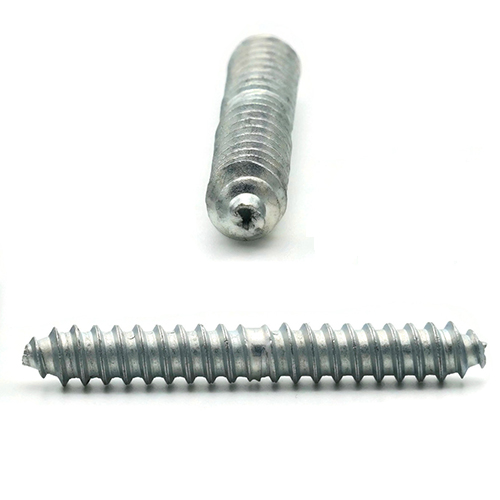

Dowel Screws, Zinc Plated Steel, 1/2"-6 x 4"
1/2"-6
| Quantity | Unit price |
|---|---|
| To 99 |
$3.95*
|
| To 999 |
$3.65*
|
| From 1000 |
$3.62*
|
- Color: Silver
- Diameter: 1/2"
- Head Type: No Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Fit: 2A
- Grade: AISI 1008 & 1010
- Hardness: Rockwell B70 - B100
- Length: 4"
- Material: Steel
- Product Type: Dowel Screw
- System of Measurement: Inch
- Tensile PSI: Min 60,000 PSI
- Thread Direction: Right Hand
- Thread Pitch: 6 Per Inch
- Thread Size: 1/2"-6
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Headless, double-sided lag screws
- Also commonly called wood screw studs
- Frequently used in wood to wood applications
- Fastens parts together without an exposed head
- Installed using locking pliers or a special driver tool
- Common uses include furniture making, attaching balusters to stairs and flooring, installing finials, creating end-to-end joints and other woodworking applications where wood needs to be joined using a single hidden fastener and blind holes
Dowel Screws are headless fasteners featuring double sided lag screw threads. Also known as wood screw studs, these fasteners are used primarily for wood to wood applications and are designed to be screwed into a pilot hole. The end of the lag thread is tapered and threaded to its tip. Dowel Screws are used for fastening two pieces of wood so as to keep them permanently in their proper relative position, usually set apart from each other.
Size
Overall Length
Lag Thread Lengths
Collar Length
1/2"-6 x 4"
4"
2"
N/A
1/2"-6 x 5"
5"
2"
1"
1/2"-6 x 6"
6"
3"
N/A
1/2"-6 x 8"
8"
3"
2"
Product number:
1914-012-002
