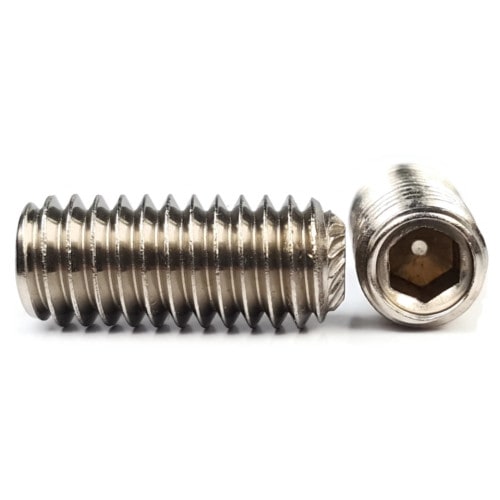

Socket Set Screws, Knurled Cup Point, Hex 3/32" Drive, Stainless Steel 18-8, #10-32 x 3/16"

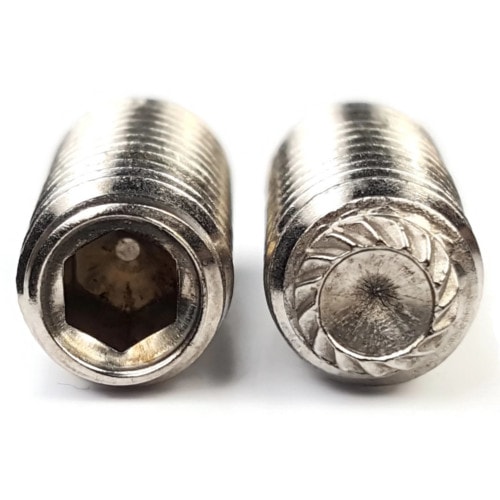

Knurled Cup Point Prevents Accidental Loosening
| Quantity | Unit price |
|---|---|
| To 99 |
$0.45*
|
| To 999 |
$0.27*
|
| From 1000 |
$0.24*
|
- Additional Sizing Info: Full Thread
- Color: Silver
- Corrosion Resistant: Yes
- Cup Point Diameter: Max 0.102 - Min 0.088
- Diameter: #10
- Drive Style: Internal Hex (Allen)
- Head Type: No Head
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 3A
- Grade: 18-8
- Head Style: No Head
- Hex Drive: 3/32"
- Length: 3/16"
- Material: Stainless Steel
- Point Degree: 118
- Point Type: Knurled Cup
- Product Type: Socket Set Screws
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
#10-32 Stainless Steel Knurled Cup Point Socket Set Screws are screws without a head designed to be driven by a hex (Allen) wrench. Set screws have no head which makes them the ideal choice for moving parts. Sitting flush in the installation, set screws allow machinery to have very close moving parts without the head of the fastener being exposed and causing damage. The knurled point on these fasteners acts as a locking mechanism to help prevent accidental loosening of the set screw due to vibration.
- Knurled cup point to prevent accidental loosening due to vibration
- Driven by hex wrench
- Corrosion resistant in fresh water environments
*Note: Stainless steel has a high chance of galling (cold fusing) while being installed. To prevent this, we recommend using an MRO Anti-Seize Solution whenever installing stainless steel fasteners.
Product number:
2018-030-0002
