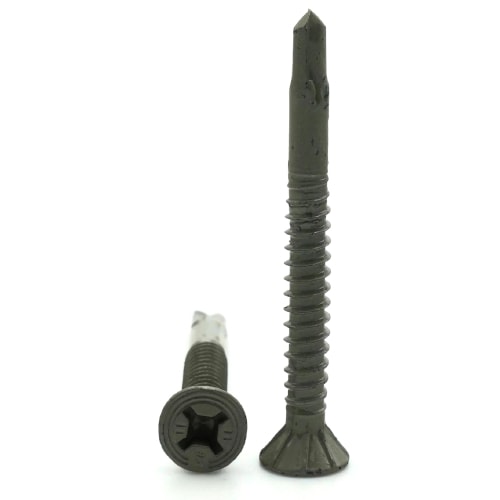

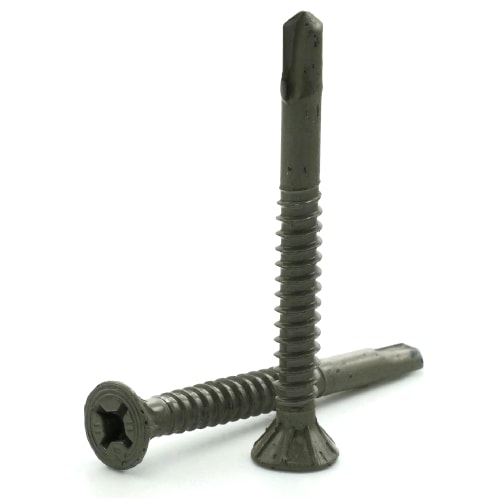

Sheet Metal Screws, Phillips Flat Head, Self Driller TEK 3, SPEX Coated Steel, #10-16 x 1-13/16"
Diameter - Thread Pitch: #10-16
| Quantity | Unit price |
|---|---|
| To 99 |
$0.28*
|
| To 999 |
$0.22*
|
| From 1000 |
$0.20*
|
- ANSI: B18.6.4
- Color (Duplicate): Gray
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Phillips
- Head Type: Flat Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: SPEX
- Grade: C1022
- Hardness: 40 Rockwell C
- Head Height Max: 0.116
- Head Diameter: Max 0.385 - Min 0.340
- Head Style: Flat
- Length: 1-13/16"
- Material (Duplicate): Spex Coated Steel
- Material: Stainless Steel
- Pattern: Self-Drilling Screws
- Phillips Drive: #2
- Point Type: TEK
- Product Type: Sheet Metal Screws
- Shear (lbs): 1400
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Tensile PSI: 1936
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: #10-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Yield PSI: 150,000 PSI
- #10-16
- SPEX coating adds additional resistance against marring, chipping, impact, humidity, abrasion, & shear
- Flat head features serrated flanges to help prevent the fastener from loosening
- Countersunk head that runs flush with the installation surface
- Self drilling (TEK) point
- SPEX coated steel phillips flat head self drilling screws are corrosion resistant and provide a lower tapping torque
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Product number:
1071-006-0012
