Shoulder Bolts, Stainless Steel 18-8, 1/2" Shoulder (3/8"-16 Thread) x 3/8"
Shoulder Diameter - Thread Size: 1/2" - 3/8-16
| Quantity | Unit price |
|---|---|
| To 99 |
$3.75*
|
| To 999 |
$3.45*
|
| From 1000 |
$2.75*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 3/8"
- Drive Style: Internal Hex (Allen)
- Head Type: Knurled Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 18-8
- Head Height: 5/16"
- Head Diameter: 3/4"
- Head Style: Socket Cap
- Hex Drive: 1/4"
- Length: 3/8"
- Material: Stainless Steel
- Part Number: 046737834020
- Product Type: Shoulder Bolts
- Shoulder Diameter: 1/2"
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Diameter: 3/8"
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: 3/8"-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

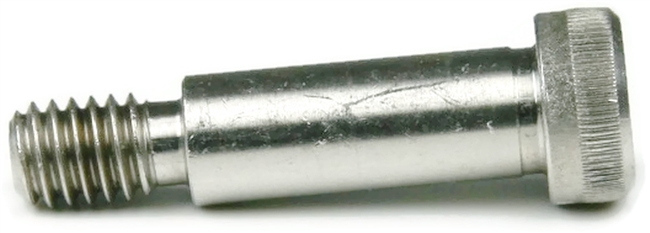

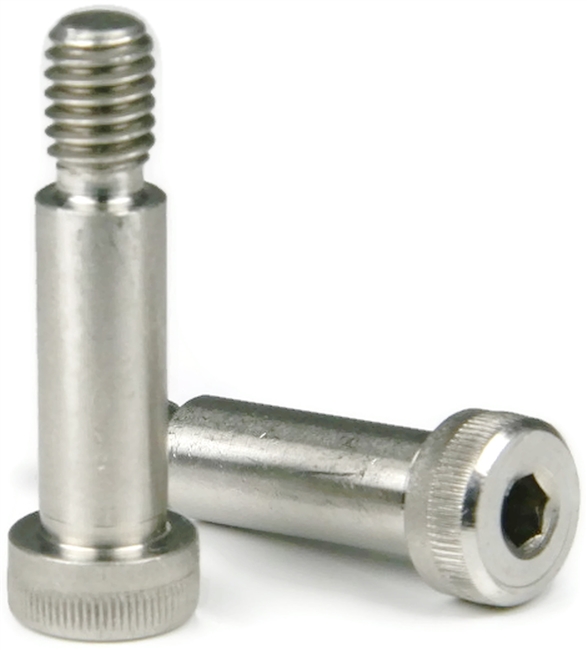

1/2" Shoulder bolts are stainless steel machine screws with a shoulder between the thread of the screw and the head of the part.
- Non-threaded shoulder extends out of the surface of the application site
- Allowing the bolts to act as:
- Dowels
- Shafts for moving parts
- Axles
- Guides for sliding pieces of an assembly
- 304 Stainless steel is corrosion and rust resistant
- Ideal for long lasting fresh water environments

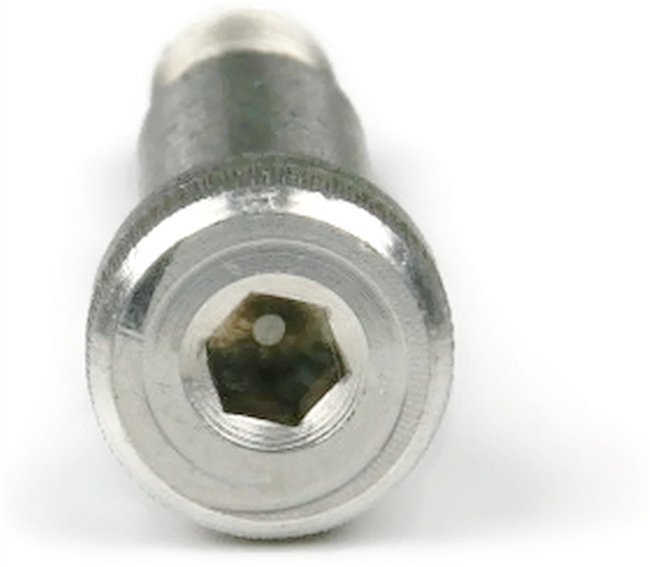

Shoulder screws in this selection feature a Socket Drive and a Knurled Head, allowing for installation with a Hex or Allen bit or your fingers.
Sizes Listed As:
Shoulder Diameter - Thread Size x Length of Shoulder
