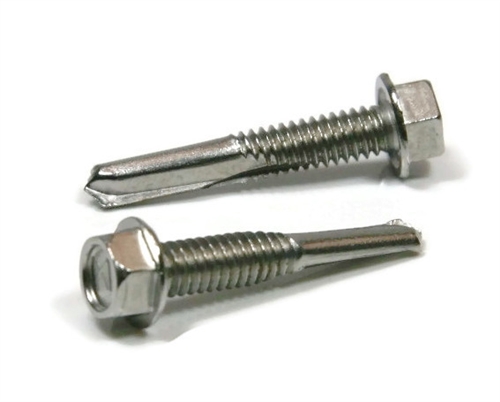

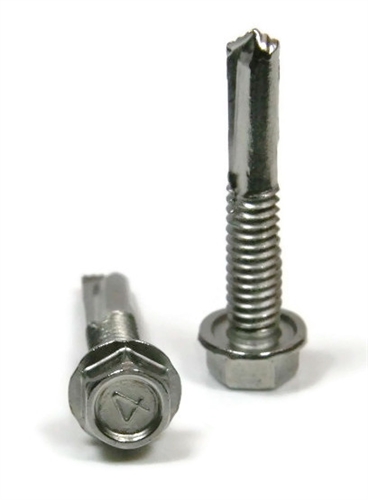

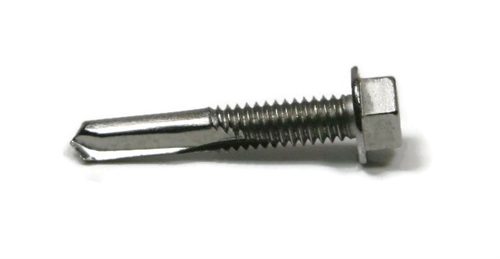

Sheet Metal Screws, Hex Washer Head, Self Driller TEK 5, Stainless Steel 410, #12 x 2"
Diameter - Thread Pitch: #12-24
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.62*
|
| 100 – 999 |
$0.43*
|
| 1000+ |
$0.37*
|
- Across Flats (Width): 5/16" (Max 0.312 - Min 0.309)
- ANSI: B18.6.4
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #12
- Drive Style: External Hex
- Elongation: 30%
- Head Type: Hex Washer Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 410
- Hardness: 40 Rockwell C
- Head Diameter: 5/16"
- Head Size: 5/16"
- Head Style: Hex Washer
- Length: 2"
- Material (Duplicate): 410 Stainless Steel
- Material: Stainless Steel
- Part Number: 730656593808
- Point Type: TEK
- Product Type: Self Drilling Screws
- Size System: US
- Size Type: Regular
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 5
- Tensile PSI: 180,000 PSI Heat Treated
- Thread Diameter Major: (#12) 0.215"
- Thread Diameter Minor: (#12) 0.164"
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: #12-24
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Wrench Size: 5/16"
- #12-24
- Hexagon drive for use with a wrench or socket
- Fully Threaded from tip to head
- Integral washer at the top of the head to minimize chance of pull-through
- Washer portion of screw distributes pressure over a larger surface area
- TEK 5 Point used for drilling into structural steel
- 410 Stainless steel hex washer head self drilling screws are hardened to drill into materials easier
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
