Nylon Lock Nuts, Stainless Steel A2, M12 x 1.75 (19.0 Flats x 12.0 Height)

Metric Sized Nylon Insert Lock Nuts in A2 Stainless Steel

Quantity	Unit price
To 99	$0.55*
To 999	$0.41*
From 1000	$0.35*

Across Flats (Width): 19mm
Color: Silver
Condition: New
Corrosion Resistant: Yes
Diameter: M12

Drive Style: External Hex
Thread Direction: Right Hand
Fit: 6H
Grade: A2
Internal Thread: M12-1.75
Material: Stainless Steel
Part Number: 046737868094
Product Type: Nylon Insert Lock Nut
Size Type: Regular
System of Measurement: Metric
Thread Direction: Right Hand
Thread Pitch: 1.75mm
Thread Size: M12
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Toggle More

Metric lock nuts with nylon inserts
Prevent back off from vibration
Deforming of the elastic insert adds force to the fastener
Removing the nut will cause cross threading in nylon

Reference Materials

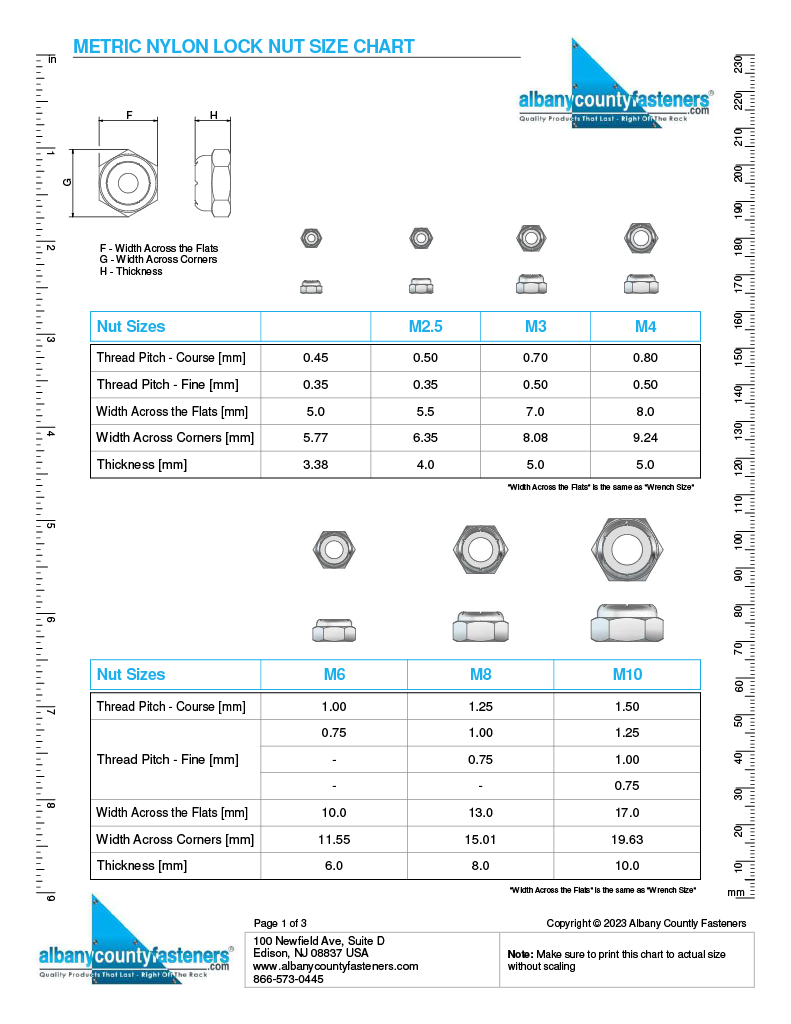

Metric Nylon Lock Nut Size Chart (PDF) - Print Friendly, 138Kb

To prevent or stop galling or seizing on stainless steel fasteners, we recommend using an anti-seize thread lubricant from our line of MRO Solutions

Nut Sizes	Flats	Height
M2.5-0.45	5.0	3.38
M3-0.50	5.5	4.0
M4-0.70	7.0	5.0
M5-0.80	8.0	5.0
M6-1.00	10.0	6.0
M8-1.25	13.0	8.0
M10-1.50	17.0	10.0
M12-1.75	19.0	12.0
M14-2.00	22.0	14.0
M16-2.00	24.0	16.0
M18-2.50	27.0	18.5
M20-2.50	30.0	20.0

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
M2-0.40 5570001-02	1 $0.89 (0.89/ea)	100 $48.00 (0.48/ea)	1000 $400.00 (0.4/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M2 x .4 $0.00
M2.5-0.45 5570002	1 $0.08 (0.08/ea)	100 $7.01 (0.07/ea)	1000 $60.00 (0.06/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M2.5 x .45 (5.0 Flats x 3.38 Height) $0.00
M3-0.50 5570012	1 $0.07 (0.07/ea)	100 $4.00 (0.04/ea)	1000 $30.00 (0.03/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M3 x .5 (5.5 Flats x 4.0 Height) $0.00
M4-0.70 5570022	1 $0.08 (0.08/ea)	100 $4.00 (0.04/ea)	1000 $30.00 (0.03/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M4 x .7 (7.0 Flats x 5.0 Height) $0.00
M5-0.80 5570032	1 $0.09 (0.09/ea)	100 $5.00 (0.05/ea)	1000 $40.00 (0.04/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M5 x .8 (8.0 Flats x 5.0 Height) $0.00
M6-1.00 5570042	1 $0.11 (0.11/ea)	100 $6.00 (0.06/ea)	1000 $50.00 (0.05/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M6 x 1.0 (10.0 Flats x 6.0 Height) $0.00
M8-1.25 5570052	1 $0.17 (0.17/ea)	100 $11.00 (0.11/ea)	1000 $100.00 (0.1/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M8 x 1.25 (13.0 Flats x 8.0 Height) $0.00
M10-1.50 5570062	1 $0.32 (0.32/ea)	100 $23.00 (0.23/ea)	1000 $190.00 (0.19/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M10 x 1.5 (17.0 Flats x 10.0 Height) $0.00
M12-1.75 5570072	1 $0.55 (0.55/ea)	100 $41.00 (0.41/ea)	1000 $350.00 (0.35/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M12 x 1.75 (19.0 Flats x 12.0 Height) $0.00
M14-2.00 5570082	1 $0.94 (0.94/ea)	100 $76.00 (0.76/ea)	1000 $660.00 (0.66/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M14 x 2.0 (22.0 Flats x 14.0 Height) $0.00
M16-2.00 5570092	1 $1.02 (1.02/ea)	100 $80.00 (0.8/ea)	1000 $700.00 (0.7/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M16 x 2.0 (24.0 Flats x 16.0 Height) $0.00
M18-2.50 5570102	1 $1.07 (1.07/ea)	100 $87.00 (0.87/ea)	1000 $800.00 (0.8/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M18 x 2.5 (27.0 Flats x 18.5 Height) $0.00
M20-2.50 5570112	1 $2.72 (2.72/ea)	100 $221.00 (2.21/ea)	1000 $2,040.00 (2.04/ea)	Quantity for Nylon Lock Nuts, Stainless Steel A2, M20 x 2.5 (30.0 Flats x 20 Height) $0.00
