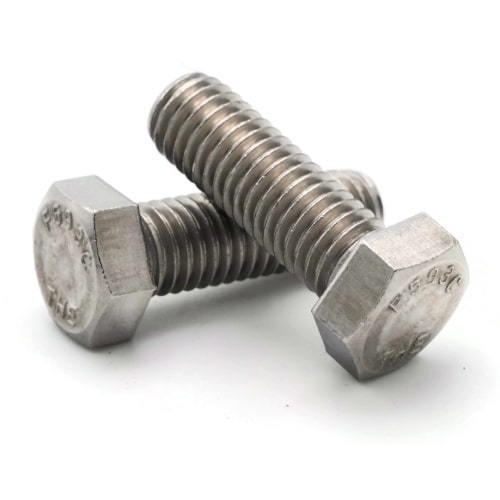

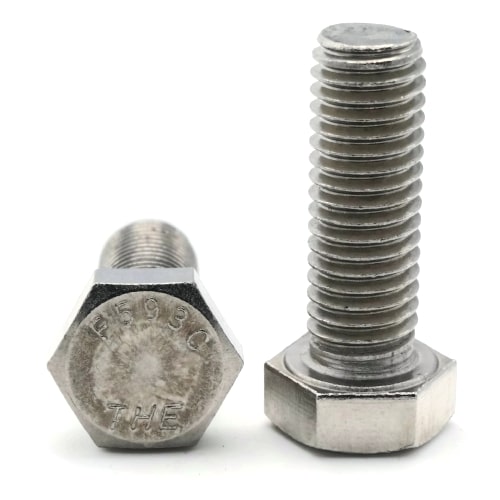

Metric Hex Cap Screws, Stainless Steel A2 (18-8), Full Thread, M10 x 1.5 x 30M
Diameter - Thread Pitch: M10-1.50
| Quantity | Unit price |
|---|---|
| To 99 |
$0.79*
|
| To 999 |
$0.74*
|
| From 1000 |
$0.72*
|
- Across Flats (Width): 16mm (Max 17.00mm - Min 16.73mm)
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: M10
- Drive Style: External Hex
- Head Type: Hex Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 6g
- FT = Full Thread: Yes
- Grade: A2
- Head Height: Max 6.58 - Min 6.22
- Head Height Basic: 6.4 mm
- Head Style: Hex
- Length: 30M
- Material: Stainless Steel
- Part Number: 661291504846
- Product Type: Metric Hex Cap Screws
- Size System: US
- Size Type: Regular
- System of Measurement: Metric
- Thread Direction: Right Hand
- Thread Pitch: 1.50 mm
- Thread Size: M10 x 1.5
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Wrench Size: 16mm
- M10-1.50
- Metric hex head is designed to be driven by a socket or wrench
- Also referred to as metric tap bolts or hex bolts
- A metric tap bolt has a smaller head than a standard hex head bolt
- A2 Stainless steel metric hex cap screws are rust resistant
- DIN 930-933/ISO 4014-4017 compliant
A Hex Bolt is measured as: Diameter - Thread Pitch x Length from Under Head

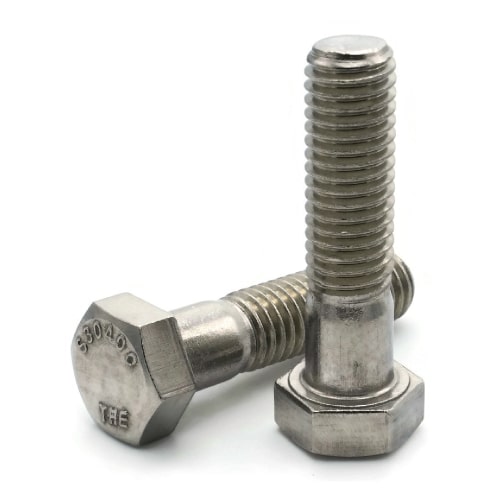

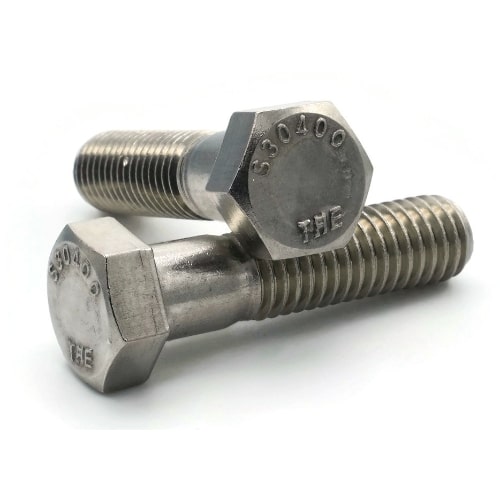

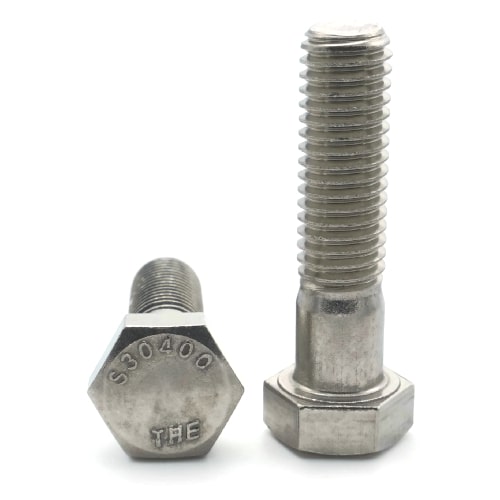

Partially Threaded in Lengths 45mm and up
FT = Full ThreadPT = Partial Thread

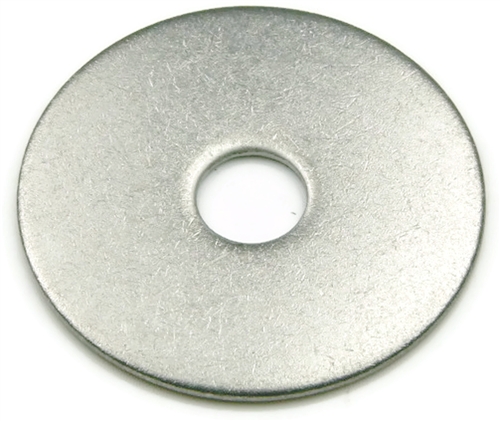

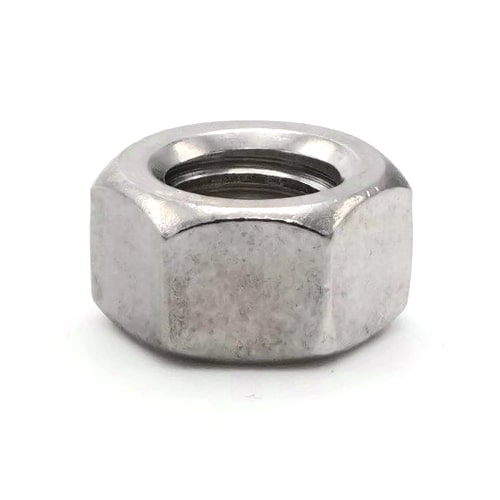

Frequently Used With
