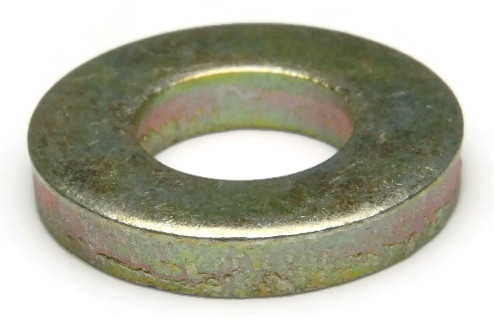

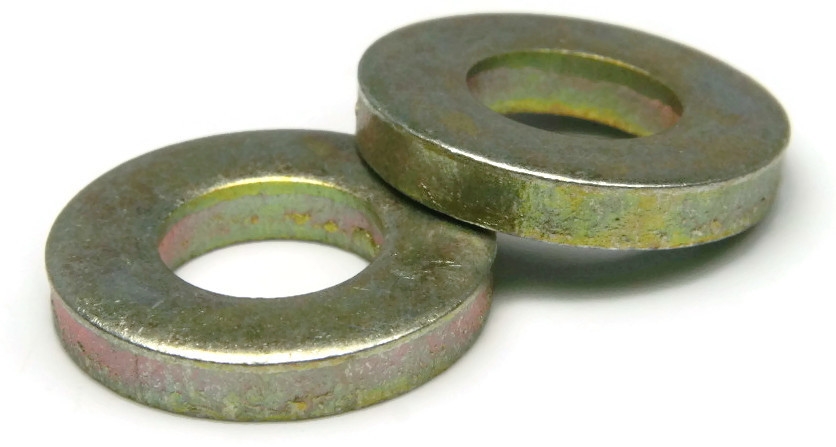

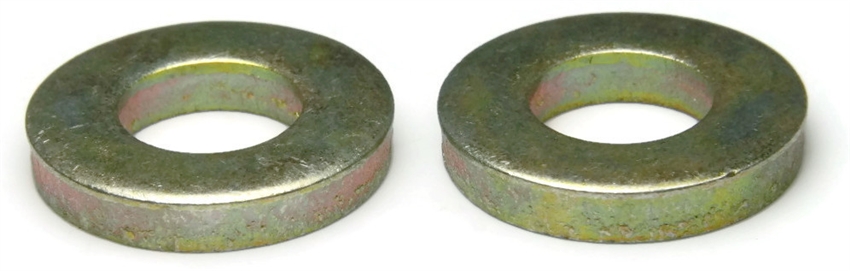

Flat Washers, Extra Thick, Grade 8 Yellow Zinc, 5/8"
Hardened Flat Washers in Grade 8 Yellow Zinc Plated Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.91*
|
| To 999 |
$0.75*
|
| From 1000 |
$0.57*
|
- Color (Duplicate): Yellow
- Color: Yellow
- Condition: New
- Diameter: 5/8"
- Rivet Diameter Facet: #REF!
- Finish: Yellow Zinc Plated
- Grade: 8
- Material (Duplicate): Yellow Zinc Plated Grade 8 Steel
- Material: Steel
- Outside Diameter (OD): 1-5/16" (1.3125")
- Part Number: 722703763920
- Pattern: Flat Washer Extra Thick
- Product Type: Flat Washers
- Rivet Diameter: #REF!
- Size: 5/8"
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Grade 8 extra thick flat washers are made to distribute extra pressure from fasteners
- Less likely to damage the material
- Used to distribute loads of threaded fasteners
- Grade 8 yellow zinc is corrosion resistant
- Can act as spacers on a fastener
- Commonly used on:
- Decks
- Docks
- Large Timber Projects
- REACH and RoHS Compliant
- Made in the USA
Extra Thick Flat Washer Specifications
Washer Sizes
Inner Diameter (ID)
Outer Diameter (OD)
Thickness
1/4"
9/32" (0.281")
5/8" (0.625")
Max 0.125" - Min 0.100"
5/16"
0.344"
0.688"
Max 0.125" - Min 0.100"
3/8"
13/32" (0.4063)
13/16" (0.8125)
Max 0.125" - Min 0.100"
7/16"
0.469"
0.922"
Max 0.125" - Min 0.100"
1/2"
0.531"
1.062"
Max 0.188" - Min 0.156"
9/16"
19/32" (0.594")
1-5/32" (1.156")
3/16" (0.1875")
5/8"
21/32" (0.656")
1-5/16" (1.3125")
3/16" (0.1875")
3/4"
13/16" (0.8125")
1-15/32" (1.469")
3/16" (0.1875")
7/8"
15/16" (0.9375")
1-3/4" (1.75")
1/4" (0.25")
1"
1-1/16" (1.0625")
2"
1/4" (0.25")
Product number:
1090-082-0002
