Lock Washers, Split Ring, Zinc Plated Steel, #6 (.141 ID x .250 OD x .031 THK)
Medium Profile Split Ring Lock Washers
| Quantity | Unit price |
|---|---|
| To 99 |
$0.07*
|
| To 999 |
$0.02*
|
| From 1000 |
$0.01*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Diameter: #6
- Finish: Zinc Plated
- Grade: Case Hardened (CR+3)
- Material (Duplicate): Zinc Plated Steel
- Material: Steel
- Outside Diameter (OD): 0.250"
- Part Number: 720572116427
- Pattern: Split Ring Lock Washer
- Product Type: Split Ring Lock Washer
- Size: #6
- Size System: US
- Size Type: Regular
- Standards Met: REACH, RoHS
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Used to prevent fasteners from loosening unintentionally
- Split and bent to create a spring-like effect
- Add extra pressure to fastener assembly resulting in higher resistance to rotation
- Zinc plated steel finish creates corrosion resistant properties
- Actual measurements may vary slightly +/- depending on production run

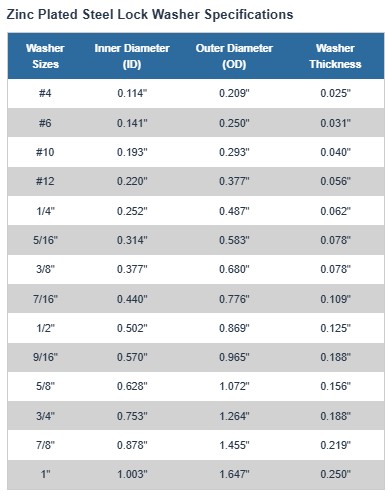

Zinc Plated Steel Lock Washer Specifications
| Washer Sizes | Inner Diameter (ID) | Outer Diameter (OD) | Washer Thickness |
| #4 | 0.114" | 0.209" | 0.025" |
| #6 | 0.141" | 0.250" | 0.031" |
| #10 | 0.193" | 0.293" | 0.040" |
| #12 | 0.220" | 0.377" | 0.056" |
| 1/4" | 0.252" | 0.487" | 0.062" |
| 5/16" | 0.314" | 0.583" | 0.078" |
| 3/8" | 0.377" | 0.680" | 0.078" |
| 7/16" | 0.440" | 0.776" | 0.109" |
| 1/2" | 0.502" | 0.869" | 0.125" |
| 9/16" | 0.570" | 0.965" | 0.188" |
| 5/8" | 0.628" | 1.072" | 0.156" |
| 3/4" | 0.753" | 1.264" | 0.188" |
| 7/8" | 0.878" | 1.455" | 0.219" |
| 1" | 1.003" | 1.647" | 0.250" |
Product number:
1102-127-0012
