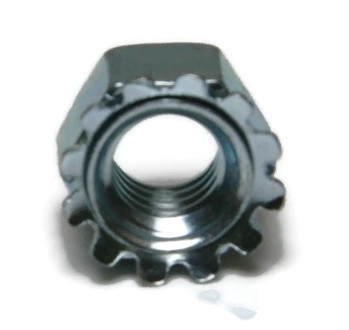

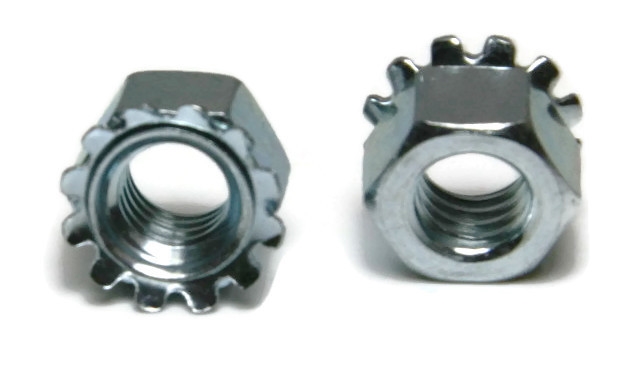

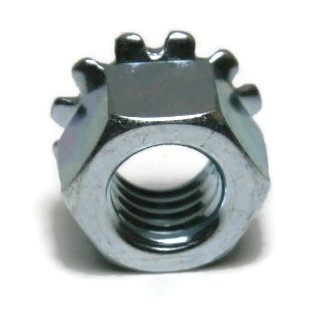

Keps K Lock Nuts, Zinc Plated Steel, #12-24 UNC
K-Lock Hex Nut with External Tooth Lock Washer - Zinc Plated Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.10*
|
| To 999 |
$0.05*
|
| From 1000 |
$0.04*
|
- Across Flats (Width): 7/16"
- Color: Silver
- Condition: New
- Diameter: #12
- Drive Style: External Hex
- Thread Direction: Right Hand
- Finish: Zinc Plated
- Fit: 2B
- Internal Thread: #12-24
- Material: Steel
- Part Number: 722703790889
- Product Type: K Lock Nuts
- Size System: US
- Size Type: Regular
- Standards Met: REACH, RoHS
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: #12-24
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Video Embed Code: KUYss0oSDrQ
- Video Thumbnail Image: graphics/00000001/keps-k-lock-nuts-product-video-thumbnail.jpg
- Weight: 1 lb
- Hexagonal shape Keps K Lock Nuts
- Also known as a Keps Nut, K Lock Hex Nut, and K Lock Nut
- Features an attached free-spinning external tooth (star) lock washer
- Lock washer helps to prevent unintentional loosening of the assembly
- Zinc plated to add durability and a layer of protection
- REACH and RoHS compliant
- UNC and UNF Sizes Available
| Nut Size | Width Across Flats | Overall Thickness | Washer Diameter |
| #4 | 1/4" | Max 0.098 - Min 0.087 | Max 0.286 - Min 0.277 |
| #5 | 5/16" | Max 0.114 - Min 0.102 | Max 0.348 - Min 0.338 |
| #6 | 5/16" | Max 0.114 - Min 0.102 | Max 0.348 - Min 0.338 |
| #8 | 11/32" | Max 0.130 - Min 0.117 | Max 0.381 - Min 0.370 |
| #10 | 3/8" | Max 0.130 - Min 0.117 | Max 0.406 - Min 0.395 |
| #12 | 7/16" | Max 0.161 - Min 0.148 | Max 0.506 - Min 0.494 |
| 1/4" | 7/16" | Max 0.193 - Min 0.178 | Max 0.506 - Min 0.494 |
| 5/16" | 1/2" | Max 0.273 - Min 0.258 | Max 0.592 - Min 0.579 |
| 3/8" | 9/16" | Max 0.385 - Min 0.365 | Max 0.665 - Min 0.651 |
Product number:
1102-120-0062
