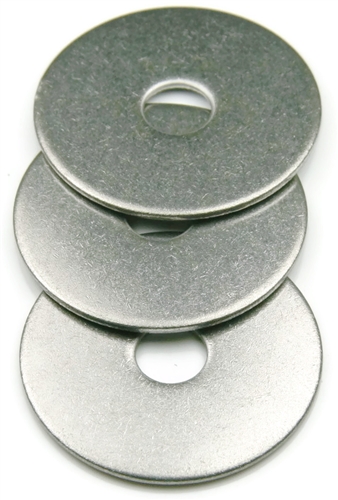

Fender Washers, Stainless Steel A2, M14 x 44M (15.0 ID x 44.0 OD x 3.0 Thick)
A2 Stainless Steel Large OD Flat Washers
| Quantity | Unit price |
|---|---|
| To 99 |
$0.95*
|
| To 999 |
$0.59*
|
| From 1000 |
$0.52*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: M14
- Grade: A2
- Material (Duplicate): A2 Stainless Steel
- Material: Stainless Steel
- Outside Diameter (OD): 44.0mm
- Part Number: 046737891979
- Pattern: Fender Washer Metric
- Product Type: Fender Washer
- Size: M14 x 44M
- Size Type: Regular
- System of Measurement: Metric
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
Fender Washers are used to prevent pull-though, and provide a greater bearing surface under the fastener.
- Prevents nuts, bolts and screws from pulling through the base material
- Significantly larger outside diameter
- Larger surface area allows it to withstand more force
- Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Fender Washers are commonly used to distribute load force on sheet metal, and gain their name from the use on car fenders. In the UK, Fender washers are also known as Penny Washers.
A2 Stainless Steel Fender Washers offer a durable and long lasting assembly due to the corrosion resistant properties of Stainless Steel. A2 Stainless Steel is the Fastener Industry standard for Stainless Steel Fasteners.
Washer Sizes
Inner Diameter (ID)
Outer Diameter (OD)
Thickness
M3 x 9M
3.2
9.0
0.8
M4 x 12M
4.3
12.0
1.0
M5 x 15M
5.3
15.0
1.2
M6 x 18M
6.4
18.0
1.6
M8 x 24M
8.4
24.0
2.0
M10 x 30M
10.5
30.0
2.5
M12 x 37M
13.0
37.0
3.0
M14 x 44M
15.0
44.0
3.0
M16 x 50M
17.0
50.0
3.0
Product number:
5670072
