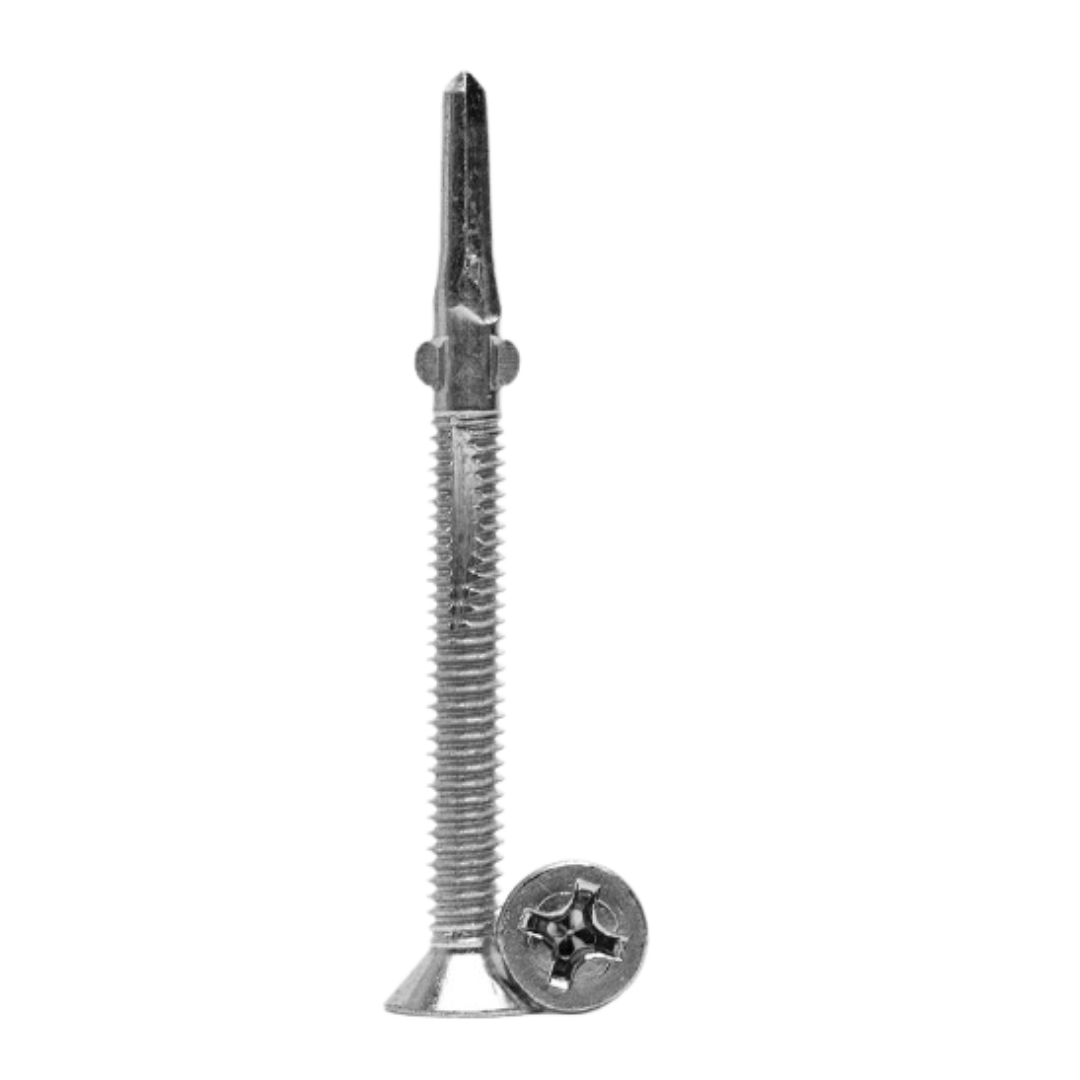

#12-24 Flat Head Screw with Wings

#12-24 Flat Head Screw with Wings

Zinc Plated Self Drilling Point Screw


#12-24 Phillips Flat Head Self-Drilling Screws with Wings - Ideal for Attaching Wood to Steel

  • Zinc plated for corrosion resistance
  • Self-drilling point eliminates need for pilot holes
  • Wings ream hole in wood to prevent jacking and break off when engaging steel
  • Phillips drive for secure installation
  • Flat head design provides flush finish

Our #12-24 Phillips flat head self-drilling screws with wings are perfect for fastening wood to steel. The sharp point drills easily without pre-drilling, while the wings create a flush fit in wood to prevent lifting. As the point engages the steel, the wings break off, allowing the threads to tap into the metal for a secure hold.

These screws, made from zinc-plated steel, resist corrosion excellently, ensuring long-lasting performance. The Phillips drive offers positive bit engagement, reducing cam-out and enabling quick, secure fastening to metal framing. With their self-drilling and self-tapping action, #12-24 flat head screws with wings make attaching wood headers to steel a breeze.

These screws are ideal for securing wood to metal, offering robust grip and a seamless flush finish. Choose #12-24 Phillips flat head reamer w wings self-drilling screws for your next wood to steel project.

Available Sizes:

  • #12-24 x 2" Phillips Flat Head Self-Drilling Screw with Wings
  • #12-24 x 2-1/2" Phillips Flat Head Self-Drilling Screw with Wings

Try our #12-24 flat head winged drill & tap screws for secure wood-to-steel fastening. Order yours today and tackle your wood to metal application fastening needs with confidence!

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
ZP Flat Head Screw with Wings - #12-24 x 2"
SKU #1248-002-0002
ZP Flat Head Screw with Wings - #12-24 x 2"
SKU #1248-002-0002
1
$0.24 (0.24/ea)
100
$21.00 (0.21/ea)
1000
$180.00 (0.18/ea)
Subtotal: $0.00 /
ZP Flat Head Screw with Wings - #12-24 x 2-1/2"
SKU #1248-002-0012
ZP Flat Head Screw with Wings - #12-24 x 2-1/2"
SKU #1248-002-0012
1
$0.28 (0.28/ea)
100
$25.00 (0.25/ea)
1000
$210.00 (0.21/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Diameter
#12
Drive Style
Phillips
Finish
Zinc
Head Style
Flat
Material
Carbon Steel
Point Type
Self Drilling
Product Type
Roofing Screws
System of Measurement (Unit)
Inch
Thread Diameter
24
Thread Direction
Right Hand
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
