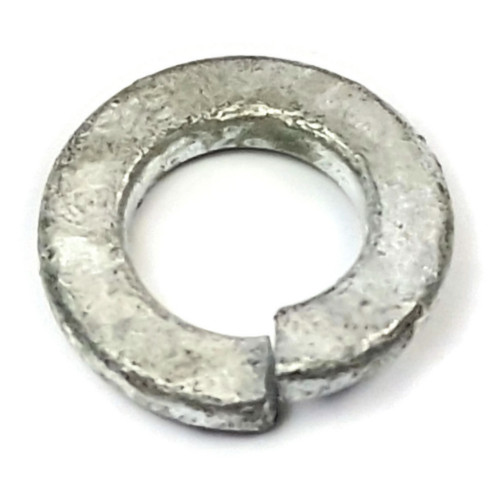

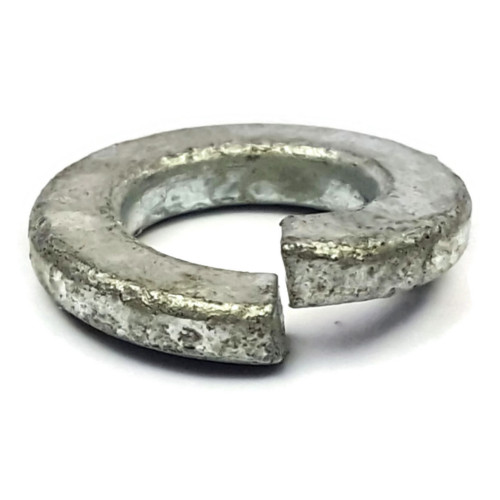

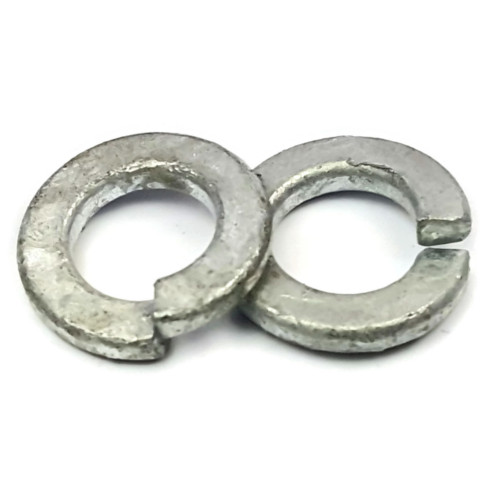

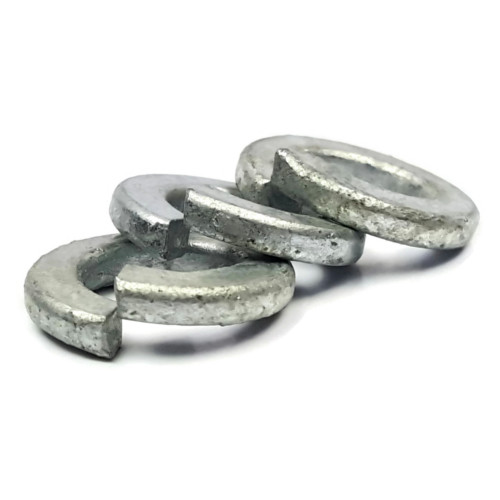

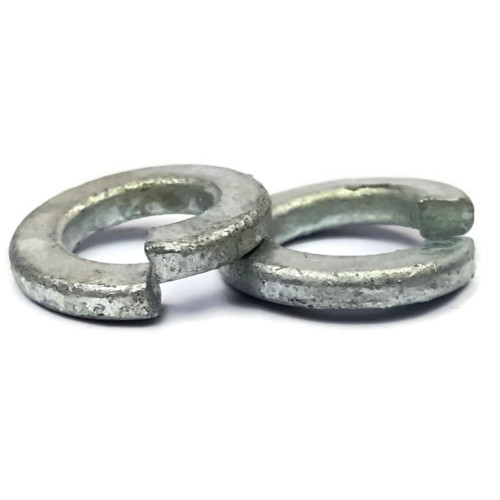

Split Ring Lock Washer Hot Dipped Galvanized
Lock Washer Split Ring Hot Dipped Galvanized



Alternative Views:


Hot Dip Galvanized Lock Washers

Medium Profile Split Ring Lock Washers

Split Ring Lock Washers (also referred to as "Spring Lock Washers", or most simply "Lock Washers") are circular washers split at a certain point to create a helical shape. This shape applies force between the head of a bolt or screw and the installation surface. This force creates a resistance to rotation and prevents nuts, bolts and screws from vibrating loose.

Hot Dipped Galvanized finish offers corrosion resistance, due to the steel lock washer's molten zinc bath to create a tightly bonded alloy coating.


Washer Thickness may vary slightly +/- depending on production run within IFI Tolerances

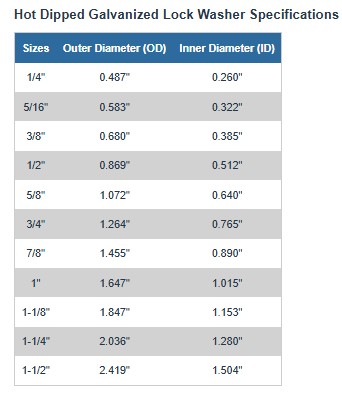

Sizes Outer Diameter (OD) Inner Diameter (ID)
1/4" 0.487" 0.260"
5/16" 0.583" 0.322"
3/8" 0.680" 0.385"
1/2" 0.869" 0.512"
5/8" 1.072" 0.640"
3/4" 1.264" 0.765"
7/8" 1.455" 0.890"
Sizes Outer Diameter (OD) Inner Diameter (ID)
1" 1.647" 1.015"
1-1/8" 1.847" 1.153"
1-1/4" 2.036" 1.280"
1-1/2" 2.419" 1.504"
1-3/4" - -
2" - -
2-1/2" - -


Item# Item Name Our Price Qty Add
1070-004-0002 Split Ring Lock Washer HDG - 1/4" (OD 0.487", ID 0.260") - Qty-1
$0.15
1070-004-0004 Split Ring Lock Washer HDG - 1/4" (OD 0.487", ID 0.260") - Qty-25
$0.42
1070-004-0006 Split Ring Lock Washer HDG - 1/4" (OD 0.487", ID 0.260") - Qty-100
$1.52
1070-004-0008 Split Ring Lock Washer HDG - 1/4" (OD 0.487", ID 0.260") - Qty-250
$3.62
1070-004-0010 Split Ring Lock Washer HDG - 1/4" (OD 0.487", ID 0.260") - Qty-1000
$13.70
1070-004-0012 Split Ring Lock Washer HDG - 5/16" (OD 0.583", ID 0.322") - Qty-1
$0.15
1070-004-0014 Split Ring Lock Washer HDG - 5/16" (OD 0.583", ID 0.322") - Qty-25
$0.68
1070-004-0016 Split Ring Lock Washer HDG - 5/16" (OD 0.583", ID 0.322") - Qty-100
$2.46
1070-004-0018 Split Ring Lock Washer HDG - 5/16" (OD 0.583", ID 0.322") - Qty-250
$5.85
1070-004-0020 Split Ring Lock Washer HDG - 5/16" (OD 0.583", ID 0.322") - Qty-1000
$22.16
1070-004-0022 Split Ring Lock Washer HDG - 3/8" (OD 0.68", ID 0.385") - Qty-1
$0.15
1070-004-0024 Split Ring Lock Washer HDG - 3/8" (OD 0.68", ID 0.385") - Qty-25
$0.87
1070-004-0026 Split Ring Lock Washer HDG - 3/8" (OD 0.68", ID 0.385") - Qty-100
$3.15
1070-004-0028 Split Ring Lock Washer HDG - 3/8" (OD 0.68", ID 0.385") - Qty-250
$7.48
1070-004-0030 Split Ring Lock Washer HDG - 3/8" (OD 0.68", ID 0.385") - Qty-1000
$28.35
1070-004-0032 Split Ring Lock Washer HDG - 1/2" (OD 0.869", ID 0.512") - Qty-1
$0.15
1070-004-0034 Split Ring Lock Washer HDG - 1/2" (OD 0.869", ID 0.512") - Qty-25
$1.76
1070-004-0036 Split Ring Lock Washer HDG - 1/2" (OD 0.869", ID 0.512") - Qty-100
$6.39
1070-004-0038 Split Ring Lock Washer HDG - 1/2" (OD 0.869", ID 0.512") - Qty-250
$15.18
1070-004-0040 Split Ring Lock Washer HDG - 1/2" (OD 0.869", ID 0.512") - Qty-1000
$57.51
1070-004-0042 Split Ring Lock Washer HDG - 5/8" (OD 1.072", ID 0.640") - Qty-1
$0.15
1070-004-0044 Split Ring Lock Washer HDG - 5/8" (OD 1.072", ID 0.640") - Qty-25
$3.08
1070-004-0046 Split Ring Lock Washer HDG - 5/8" (OD 1.072", ID 0.640") - Qty-100
$11.21
1070-004-0048 Split Ring Lock Washer HDG - 5/8" (OD 1.072", ID 0.640") - Qty-250
$26.62
1070-004-0050 Split Ring Lock Washer HDG - 5/8" (OD 1.072", ID 0.640") - Qty-1000
$100.89
1070-004-0052 Split Ring Lock Washer HDG - 3/4" (OD 1.264", ID 0.765") - Qty-1
$0.22
1070-004-0054 Split Ring Lock Washer HDG - 3/4" (OD 1.264", ID 0.765") - Qty-25
$5.11
1070-004-0056 Split Ring Lock Washer HDG - 3/4" (OD 1.264", ID 0.765") - Qty-100
$18.59
1070-004-0058 Split Ring Lock Washer HDG - 3/4" (OD 1.264", ID 0.765") - Qty-250
$44.14
1070-004-0060 Split Ring Lock Washer HDG - 3/4" (OD 1.264", ID 0.765") - Qty-1000
$167.27
1070-004-0062 Split Ring Lock Washer HDG - 7/8" (OD 1.455", ID 0.890") - Qty-1
$0.38
1070-004-0064 Split Ring Lock Washer HDG - 7/8" (OD 1.455", ID 0.890") - Qty-25
$8.67
1070-004-0066 Split Ring Lock Washer HDG - 7/8" (OD 1.455", ID 0.890") - Qty-100
$31.52
1070-004-0068 Split Ring Lock Washer HDG - 7/8" (OD 1.455", ID 0.890") - Qty-250
$74.87
1070-004-0070 Split Ring Lock Washer HDG - 7/8" (OD 1.455", ID 0.890") - Qty-1000
$283.70
1070-004-0072 Split Ring Lock Washer HDG - 1" (OD 1.647", ID 1.015") - Qty-1
$0.50
1070-004-0074 Split Ring Lock Washer HDG - 1" (OD 1.647", ID 1.015") - Qty-25
$11.39
1070-004-0076 Split Ring Lock Washer HDG - 1" (OD 1.647", ID 1.015") - Qty-100
$41.41
1070-004-0078 Split Ring Lock Washer HDG - 1" (OD 1.647", ID 1.015") - Qty-250
$98.35
1070-004-0080 Split Ring Lock Washer HDG - 1" (OD 1.647", ID 1.015") - Qty-1000
$372.69
1070-004-0082 Split Ring Lock Washer HDG - 1-1/8" (OD 1.847", ID 1.153") - Qty-1
$0.77
1070-004-0084 Split Ring Lock Washer HDG - 1-1/8" (OD 1.847", ID 1.153") - Qty-25
$17.75
1070-004-0086 Split Ring Lock Washer HDG - 1-1/8" (OD 1.847", ID 1.153") - Qty-100
$64.56
1070-004-0088 Split Ring Lock Washer HDG - 1-1/8" (OD 1.847", ID 1.153") - Qty-250
$153.33
1070-004-0090 Split Ring Lock Washer HDG - 1-1/8" (OD 1.847", ID 1.153") - Qty-1000
$581.04
1070-004-0092 Split Ring Lock Washer HDG - 1-1/4" (OD 2.036", ID 1.280") - Qty-1
$1.04
1070-004-0094 Split Ring Lock Washer HDG - 1-1/4" (OD 2.036", ID 1.280") - Qty-25
$23.87
1070-004-0096 Split Ring Lock Washer HDG - 1-1/4" (OD 2.036", ID 1.280") - Qty-100
$86.80
1070-004-0098 Split Ring Lock Washer HDG - 1-1/4" (OD 2.036", ID 1.280") - Qty-250
$206.16
1070-004-0100 Split Ring Lock Washer HDG - 1-1/4" (OD 2.036", ID 1.280") - Qty-1000
$781.22
1070-004-0102 Split Ring Lock Washer HDG - 1-1/2" (OD 2.419", ID 1.504") - Qty-1
$1.80
1070-004-0104 Split Ring Lock Washer HDG - 1-1/2" (OD 2.419", ID 1.504") - Qty-25
$41.34
1070-004-0106 Split Ring Lock Washer HDG - 1-1/2" (OD 2.419", ID 1.504") - Qty-100
$150.31
1070-004-0108 Split Ring Lock Washer HDG - 1-1/2" (OD 2.419", ID 1.504") - Qty-250
$356.99
1070-004-0110 Split Ring Lock Washer HDG - 1-1/2" (OD 2.419", ID 1.504") - Qty-1000
$1,352.81
1070-004-0112 Split Ring Lock Washer HDG - 1-3/4"- Qty-1
$2.17
1070-004-0114 Split Ring Lock Washer HDG - 1-3/4"- Qty-25
$49.73
1070-004-0116 Split Ring Lock Washer HDG - 1-3/4"- Qty-100
$180.85
1070-004-0118 Split Ring Lock Washer HDG - 1-3/4"- Qty-250
$429.52
1070-004-0120 Split Ring Lock Washer HDG - 1-3/4"- Qty-1000
$1,627.65
1070-004-0122 Split Ring Lock Washer HDG - 2" - Qty-1
$3.16
1070-004-0124 Split Ring Lock Washer HDG - 2" - Qty-25
$72.38
1070-004-0126 Split Ring Lock Washer HDG - 2" - Qty-100
$263.20
1070-004-0128 Split Ring Lock Washer HDG - 2" - Qty-250
$625.11
1070-004-0130 Split Ring Lock Washer HDG - 2" - Qty-1000
$2,368.82
1070-004-0132 Split Ring Lock Washer HDG - 2-1/2" - Qty-1
$3.99
1070-004-0134 Split Ring Lock Washer HDG - 2-1/2" - Qty-25
$91.54
1070-004-0136 Split Ring Lock Washer HDG - 2-1/2" - Qty-100
$332.87
1070-004-0138 Split Ring Lock Washer HDG - 2-1/2" - Qty-250
$790.57
1070-004-0140 Split Ring Lock Washer HDG - 2-1/2" - Qty-1000
$2,995.83
